登录和注册界面设计与实现

👨‍💻数据库的建立

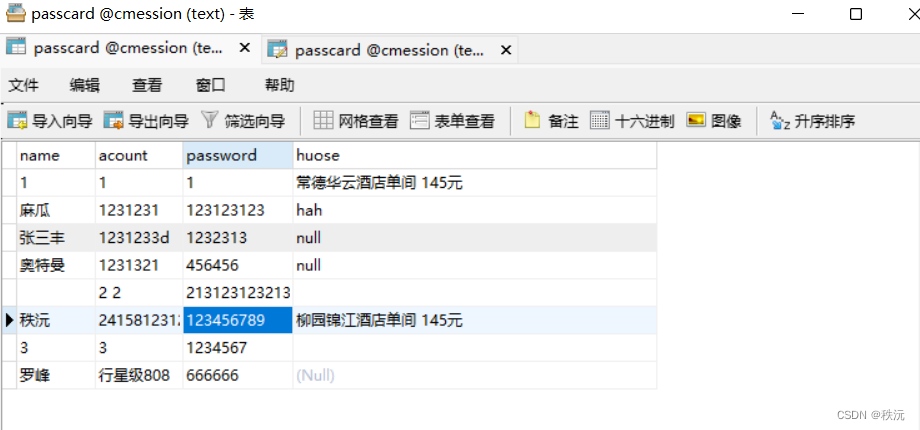

在注册信息之前，首先时来创建数据库和表，用来存储用户的姓名（name），账户（acount），密码（password），订房信息（huose），Navicat For MySQL中显示如图所示。

在这里插入图片描述

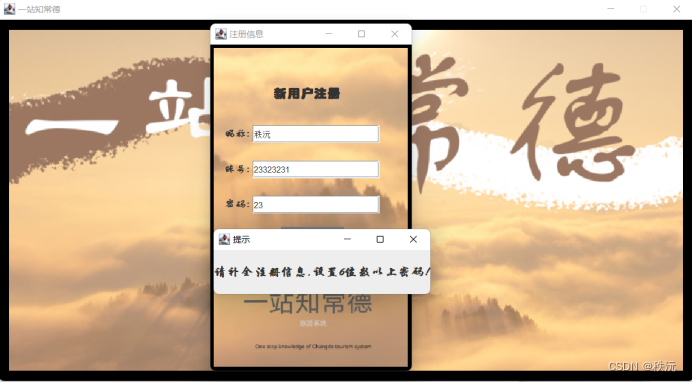

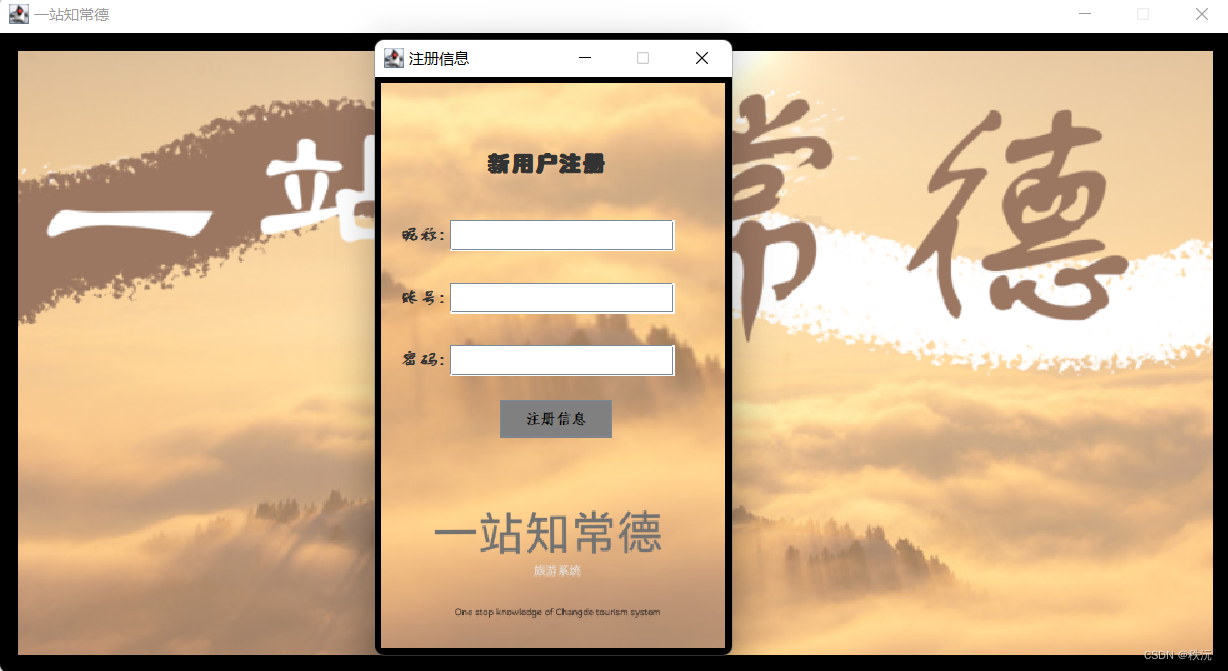

👨‍💻注册界面效果图

注册界面首先实现GUI布局设计，继承JFrame类新建窗口，在主面板上实现GUI设计，用到JFieldText,JButton,JLabel等组件进行布局。设计效果图如下图4.1所示。
在这里插入图片描述

参考代码：

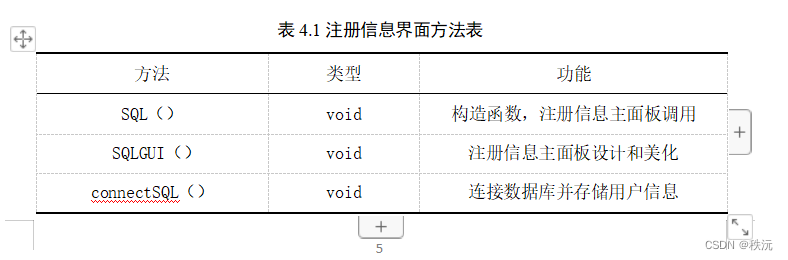

注册界面功能用以下三个方法，分别为构造函数SQL()进行注册信息主面板调用， SQLGUI（）方法进行界面GUI设计和布局，connectSQL（）进行数据库的连接，并把用户输入的信息存储到数据库当中。注册信息界面方法表如下表4.1所示。

在这里插入图片描述

public SQL() {setTitle("注册信息");setBounds(600, 135, 300, 500);SQLGUI(); setResizable(false);  //禁止最大化setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);}//注册信息面板private void SQLGUI() {//增加主面板JPanel  JPSQL ;JPSQL = new JPanel();setContentPane(JPSQL);JPSQL.setBorder(BorderFactory.createLineBorder(Color.BLACK,6)); //设置一个带有颜色的边界和其宽度setContentPane(JPSQL);JPSQL.setLayout(null);   //JPanel的默认布局--FollowLayout//添加标签JLabel logo, name , acount , password ;logo = new JLabel("新用户注册");name = new JLabel("昵称:");acount = new JLabel("账号:");password = new JLabel("密码:");logo.setBounds(90,30, 100,80);logo.setFont(new Font("华文琥珀",Font.BOLD,18));name.setBounds(20,100, 91,50);name.setFont(new Font("方正舒体",Font.BOLD,15));acount.setBounds(20,150, 91,50);acount.setFont(new Font("方正舒体",Font.BOLD,15));password.setBounds(20,200, 91,50);password.setFont(new Font("方正舒体",Font.BOLD,15));name.setOpaque(false);JPSQL.add(logo);JPSQL.add(name);JPSQL.add(acount);JPSQL.add(password);//添加输入框JTextField Field1 , Field2 , Field3;Field1 = new JTextField(20);Field2 = new JTextField(20);Field3 = new JTextField(20);Field1.setBounds(60,115, 180,25);Field2.setBounds(60,165, 180,25);Field3.setBounds(60,215, 180,25);JPSQL.add(Field1);JPSQL.add(Field2);JPSQL.add(Field3);//添加按钮，JButton reSQL;reSQL = new JButton("注册信息");reSQL.setForeground(Color.BLACK);  //设置前景颜色（作用于字体）reSQL.setFont(new Font("仿宋", Font.BOLD, 12));reSQL.setBackground(Color.gray);   //设置背景颜色reSQL.setBounds(100,259, 90,30);JPSQL.add(reSQL);//插入背景图片ImageIcon backgruonp ;JLabel image ;backgruonp = new ImageIcon("注册信息背景图片.png");image = new JLabel(backgruonp);image.setBounds(5,5,275,452);JPSQL.add(image);//提取信息reSQL.addMouseListener(new MouseListener() {@Overridepublic void mousePressed(MouseEvent e) { //单击注册按钮时监听信息if(e.getSource() == reSQL && e.getButton() == MouseEvent.BUTTON1 ){Mname     = Field1.getText();Macount   = Field2.getText();Mpassword = Field3.getText();System.out.println(Mpassword.length());if(Mpassword.length() < 6){ //增加提示窗口JFrame inform = new JFrame();inform.setTitle("提示");inform.setBounds(620, 305, 322,100);JLabel occ = new JLabel("请补全注册信息,设置6位数以上密码!");occ.setFont(new Font("华文行楷",Font.BOLD,18));inform.add(occ);setResizable(true);  //禁止最大化inform.setVisible(true);setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);}else {//将信息存储到数据库connectSQL();}}}@Overridepublic void mouseClicked(MouseEvent e) {}@Overridepublic void mouseReleased(MouseEvent e) {}@Overridepublic void mouseExited(MouseEvent e) {}@Overridepublic void mouseEntered(MouseEvent e) {}});}//将信息存储到数据库public void connectSQL(){Connection nect = null;try {    //首先连接数据库String  a ="jdbc:mysql://localhost/CMession?"+"useSSL = true & serverTimezone = GMT &characterEncoding = utf-8 ";		       nect = DriverManager.getConnection(a,"root","l20011223");System.out.println("连接成功");} catch (SQLException e1) {e1.printStackTrace();}Statement sql = null;try {sql = nect.createStatement();   //声明数据库sql.execute("insert into  passCard  values('"+Mname+"','"+Macount+"','"+Mpassword+"',' ') ;");} catch (SQLException e1) { e1.printStackTrace(); } try {nect.close();System.out.println("已关闭连接");} catch (SQLException e1){e1.printStackTrace();}dispose();//增加提示窗口JFrame inform = new JFrame();inform.setTitle("提示");inform.setBounds(620, 305, 280,100);JLabel occ = new JLabel("您已注册成功，请重新登录!");occ.setFont(new Font("华文行楷",Font.BOLD,18));inform.add(occ);setResizable(true);  //禁止最大化inform.setVisible(true);setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);}
}

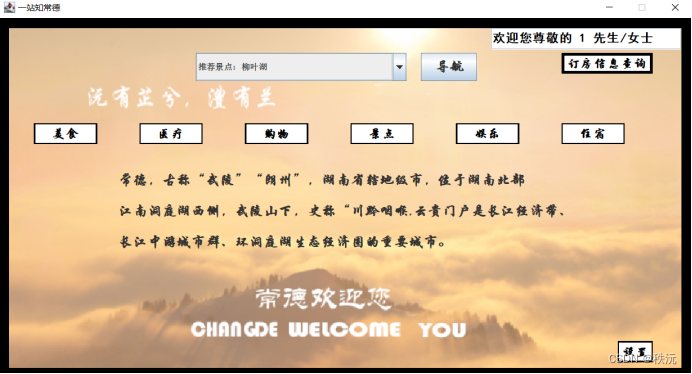

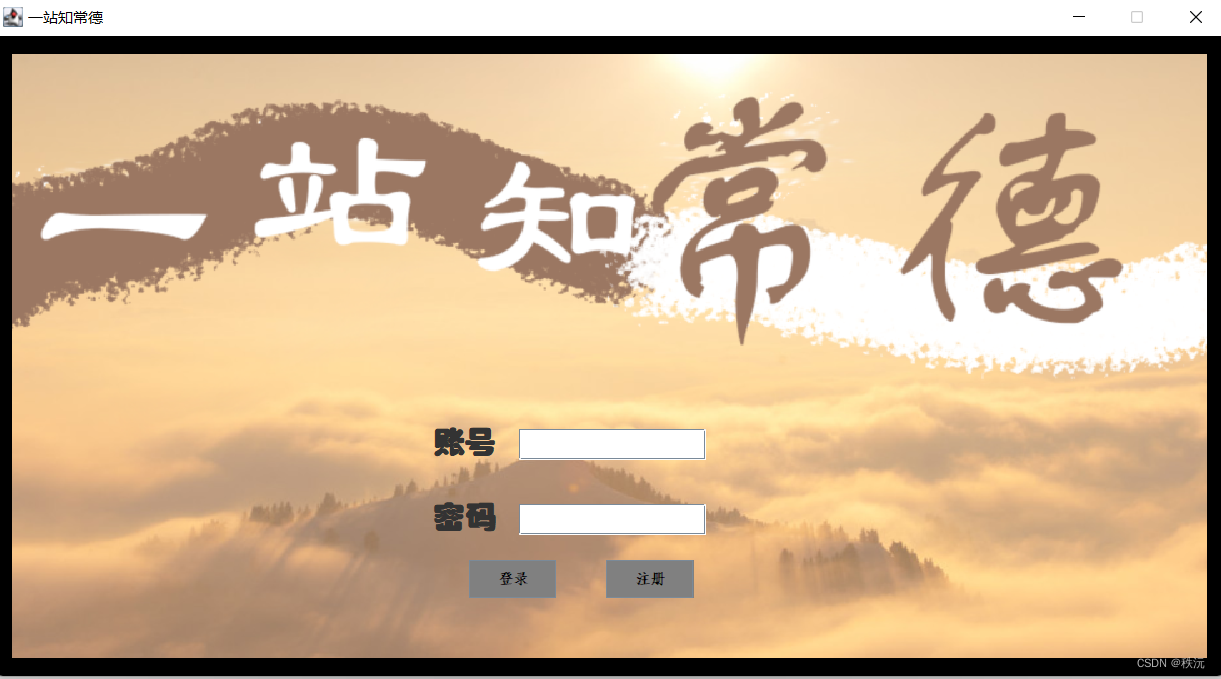

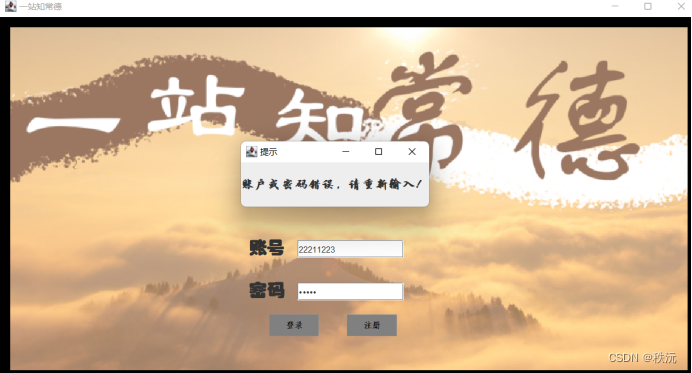

👨‍💻登录界面效果图

登录界面首先也是实现GUI布局设计，继承JFrame类新建窗口，在主面板上实现GUI设计，用到JFieldText,JButton,JLabel等组件进行布局。设计效果图如下图所示。

在这里插入图片描述

代码参考：

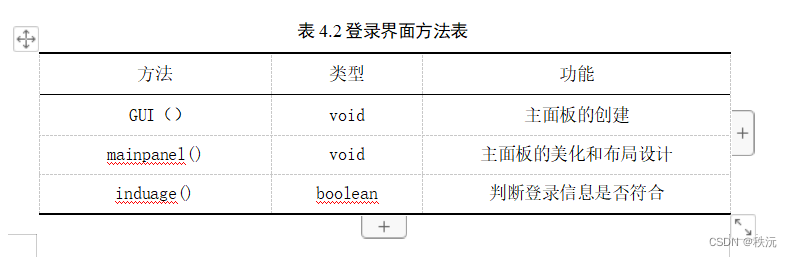

登录界面功能用以下三个方法，分别为构造函数 GUI（）进行登录界面主面板的创建，mainpanel()方法进行登录界面GUI设计和布局美化，induage()方法，进行数据库的连接，并判断用户输入的账号密码是否与数据库中的一致。注册信息界面方法表如下表4.2所示。

在这里插入图片描述

  //主面板的创建public  GUI (){mainpanel();setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);}public void mainpanel(){//设置主面板的布局和美观setTitle("一站知常德");setBounds(300,100,1000,550);setResizable(false);  //禁止最大化//setLocationRelativeTo(null);           //居中	    //设置布局JPanel MJPanel ;MJPanel = new JPanel();MJPanel.setBorder(BorderFactory.createLineBorder(Color.BLACK,15)); //设置一个带有颜色的边界和其宽度setContentPane(MJPanel);MJPanel.setLayout(null);   //JPanel的默认布局--FollowLayout//设置账号密码标签JLabel ANumber , PNumber;Font bold = new Font("华文琥珀",Font.BOLD,25);ANumber =  new JLabel("账号");PNumber =  new JLabel("密码");ANumber.setFont(bold);  //设置字体PNumber.setFont(bold);  //设置字体ANumber.setBounds(351, 300, 91, 50);PNumber.setBounds(351, 360, 91, 50);// ANumber .setOpaque(false);// PNumber .setOpaque(false);MJPanel.add(ANumber);MJPanel.add(PNumber);//设置输入框ANField = new JTextField(20);PNField = new JPasswordField(20);ANField.setBounds(420, 315, 150, 25);PNField.setBounds(420, 375, 150, 25);//ANField.setText("请输入账号");//PNField.setText("请输入密码");MJPanel.add(ANField);MJPanel.add(PNField);//设置登录和注册按钮JButton record,register;record = new JButton("登录");register = new JButton("注册");record.setForeground(Color.BLACK);  //设置前景颜色（作用于字体）register.setForeground(Color.BLACK);record.setFont(new Font("仿宋", Font.BOLD, 12));register.setFont(new Font("仿宋", Font.BOLD, 12));record.setBackground(Color.gray);   //设置背景颜色register.setBackground(Color.gray);record.setBounds(380,420,70,30);register.setBounds(490,420,70,30);MJPanel.add(record);MJPanel.add(register);//插入背景图ImageIcon backgruonp ;JLabel image ;backgruonp = new ImageIcon("常德风景图片.png");image = new JLabel(backgruonp);image.setBounds(15,15,956,483);MJPanel.add(image);//设置注册信息跳转界面register.addMouseListener(new MouseListener() {@Overridepublic void mousePressed(MouseEvent e) {//单击注册按钮if(e.getSource() == register && e.getButton() == MouseEvent.BUTTON1 ){SQL restore = new SQL();restore.setVisible(true);}}@Overridepublic void mouseClicked(MouseEvent e) {}@Overridepublic void mouseReleased(MouseEvent e) {}@Overridepublic void mouseExited(MouseEvent e) {}@Overridepublic void mouseEntered(MouseEvent e) {}});//设置登录信息跳转界面record.addMouseListener(new MouseListener() {@Overridepublic void mousePressed(MouseEvent e) {//单击登录按钮if(e.getSource() == record && e.getButton() == MouseEvent.BUTTON1 ){	 if( induage() == true){  @SuppressWarnings("unused")SystemGUI mainGUI = new SystemGUI(ANField.getText());  //将账户作为参数传递dispose();}else{//增加提示窗口JFrame inform = new JFrame();inform.setTitle("提示");inform.setBounds(640, 305, 280,100);JLabel occ = new JLabel("账户或密码错误，请重新输入!");occ.setFont(new Font("华文行楷",Font.BOLD,18));inform.add(occ);setResizable(true);  //禁止最大化inform.setVisible(true);setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);}}}@Overridepublic void mouseClicked(MouseEvent e) {}@Overridepublic void mouseReleased(MouseEvent e) {}@Overridepublic void mouseExited(MouseEvent e) {}@Overridepublic void mouseEntered(MouseEvent e) {}});}@SuppressWarnings("deprecation")public boolean induage(){//连接数据库核实信息boolean duage = false ; Connection nect = null;ResultSet answar = null ;try {    //首先连接数据库String  a ="jdbc:mysql://localhost/CMession?"+"useSSL = true & serverTimezone = GMT &characterEncoding = utf-8 ";		       nect = DriverManager.getConnection(a,"root","l20011223");System.out.println("连接成功");} catch (SQLException e1) {e1.printStackTrace();}Statement sql = null;try {sql = nect.createStatement();   //声明数据库String query ="  select password  from passCard where acount=  '"+ANField.getText() +"';";//通过账号查找密码answar = sql.executeQuery(query);while(answar.next()){System.out.println(answar.getString(1)+"   "+PNField.getText());if(answar.getString(1).equals(PNField.getText())  ) //判断密码是否相等{duage = true ;}}} catch (SQLException e1) { e1.printStackTrace(); }try {nect.close();System.out.println("已关闭连接");} catch (SQLException e1){e1.printStackTrace();}//dispose();return duage;}
}
