基于Qt/libmodbus框架开发modbusRTU主机模块（一）- 插件开发

文章目录

• 基于Qt/libmodbus框架开发modbusRTU主机模块（一）- 插件开发
• libmodbus库介绍
• • 官方介绍
  • 移植简介
• 设计思路
• • 数据封装
  • • float/uint16_t [2]转换
    • 封装modbus中的浮点数
    • 封装modbus中的开关量
  • 线程锁保护核心数据
  • 寄存器操作封装
  • 流程设计
  • 控制参数说明
  • 模块插件化
• 核心源码
• • 工程文件
  • 接口文件
  • 头文件 - "modbusrtumaster.h"
  • 源文件
  • • modbusmaster.cpp
    • modbusrtumaster.performance.cpp
    • modbusmaster.polling.cpp
    • modbusmaster.read.cpp
    • modbusmaster.write.cpp
  • libmodbus库源码修改
  • • modbus.c新增内容
    • modbus.h新增内容
• 使用指南
• • 基本操作
  • • 实例化主机对象
    • 设置通讯端口参数
    • 连接通讯端口
    • 设置多从机与前置通讯状态
    • 设置轮询间隔时间、响应超时时间、重试间隔时间
    • 启动主机服务
    • 读寄存器
    • 写寄存器
    • 关闭主机服务

libmodbus库介绍

官方介绍

libmodbus

• 官网上有源码、文档、例程。

ibmodbus is a free software library to send/receive data according to the Modbus protocol. This library is written in C and supports RTU (serial) and TCP (Ethernet) communications. The license of libmodbus is LGPL v2.1+ and the licence of programs in the tests directory is BSD 3-clause.

移植简介

设计思路

数据封装

设计数据封装时，主要考虑了一下几点：

• modbus变量分为16位寄存器变量与开关量（1 bit）两种；
• modbus变量可以逐个读写也可以连续读写；
• modbus变量对应着（标准Modbus协议规定的）唯一的地址；
• 不同的modbus变量可以拥有不同的从机设备地址与前置网络通讯地址（多从机扩展）；

考虑到一般通用性，本模块采用使用最多的float类型数据对16位寄存器进行封装。由于modbus主机的硬件资源一般都足够，因此直接使用字节（uint8_t）数据表示开关量（在资源紧张的环境中，应当考虑使用位域/联合体对开关量类型数据进行封装）。

需要特别注意的是MBData_BitArray与MBData_FloatArray数据类型中的uint8_t *IsExecuted_P成员。设置这个成员的原因是：写MB寄存器的函数重载功能可导致传入参数是MBData_Bit与MBData_Float类型，而在函数内部都是需要转换为MBData_BitArray与MBData_FloatArray类型，才能加入写队列。因此为了使得IsExecuted标志量依然可用，需要额外的指针类型成员存储数据类型转换前的相应变量的指针。这种机制的内部处理方式举例如下：

void ModbusRTUMaster::RequestWriteHR(uint16_t address, uint16_t count, float *dataArray)
{mutex_WQ_HR.lock();MBData_FloatArray *mBData_FloatArray = new MBData_FloatArray(address,count);for(uint16_t i = 0; i < count; i++){mBData_FloatArray->ValueArray[i].Type_Float = dataArray[i];}mBData_FloatArray->IsExecuted = 0;WriteQueue_HoldingReg->append(mBData_FloatArray);mutex_WQ_HR.unlock();
}void ModbusRTUMaster::RequestWriteHR(uint16_t address, float data)
{RequestWriteHR(address,1,&data);
}void ModbusRTUMaster::RequestWriteHR(MBData_FloatArray *mBData_FloatArray)
{mutex_WQ_HR.lock();mBData_FloatArray->IsExecuted = 0;//mBData_FloatArray->IsExecuted指向mBData_FloatArray->IsExecuted_PmBData_FloatArray->IsExecuted_P = &mBData_FloatArray->IsExecuted;WriteQueue_HoldingReg->append(mBData_FloatArray);mutex_WQ_HR.unlock();
}void ModbusRTUMaster::RequestWriteHR(MBData_Float *mBData_Float)
{mutex_WQ_HR.lock();mBData_Float->IsExecuted = 0;MBData_FloatArray *mBData_FloatArray = new MBData_FloatArray(mBData_Float->PreDevAddr, mBData_Float->MBDevAddr, mBData_Float->Address, 1);mBData_FloatArray->ValueArray[0].Type_Float = mBData_Float->Value.Type_Float;//将mBData_Float->IsExecuted指向mBData_FloatArray->IsExecuted_PmBData_FloatArray->IsExecuted_P = &mBData_Float->IsExecuted;WriteQueue_HoldingReg->append(mBData_FloatArray);mutex_WQ_HR.unlock();
}

float/uint16_t [2]转换

浮点数与16位寄存器（2个）需要实现高效转化，使用联合体对这种类型的数据进行封装。

///构造了一个联合体，以实现float类型数据与16位数组的快速转换
typedef union
{float Type_Float;uint16_t Type_16BitArray[2];
} Float16BitArray_Union;

例如声明一个Float16BitArray_Union类型的变量MB_FloatValue，调用MB_FloatValue.Type_Float成员即可得到float类型数据，调用MB_FloatValue.Type_16BitArray成员即可得到一个16位的数组（长度为2）。

封装modbus中的浮点数

由于存在读/写单个或者多个寄存器的操作，因此需要定义两种数据类型以应对不同的需要。这些结构体都设置了几种不同参数的构造函数，因方便初始化此类型的变量。需要特别关注为了实现多从机或者多网络通讯而设置的uint16_t PreDevAddr与uint8_t MBDevAddr成员。V2.4版本以后，新增了RetryTimes成员，它用以指示通讯出错时的重试次数。RetryTimes = 1表示通讯出错后不重试，RetryTimes = 2表示首次通讯出错后，再尝试一次通讯。

///定义了方便在modbus协议中使用的float类型变量
typedef struct _MBData_Float
{uint8_t IsExecuted;             //该变量是否已经被执行读写操作uint16_t PreDevAddr;            //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;              //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;               //变量的地址，16位地址Float16BitArray_Union Value;    //用以存储请求到的数据uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_Float(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, float value, uint8_t retryTimes = 1):IsExecuted(0), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), RetryTimes(retryTimes){Value.Type_Float = value;};_MBData_Float(uint16_t address, float value):IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(address), RetryTimes(1){Value.Type_Float = value;};_MBData_Float():IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(0), RetryTimes(1){Value.Type_Float = 0;};
} MBData_Float;///定义了方便在modbus协议中使用的float类型数组（连续地址）
typedef struct _MBData_FloatArray
{uint8_t IsExecuted;////// \brief IsExecuted_P///     写寄存器提供了函数重载的功能，可以支持4种类型的参数传入，但是最终加入到写队列的数据类型，都统一转化为MBData_FloatArray/MBData_BitArray类型，///     因此为了能够使得不同数据类型的MB寄存器数据的IsExecuted成员的值都能够被顺利修改，需要一个指针分别指向不同数据类型的IsExecuted成员。uint8_t *IsExecuted_P;uint16_t PreDevAddr;            //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;              //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;               //变量的地址，16位地址uint16_t Count;Float16BitArray_Union ValueArray[MODBUS_WRITE_HR_FLOAT_MAX_NUM];uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_FloatArray(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, uint16_t count, uint8_t retryTimes = 1):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), Count(count), RetryTimes(retryTimes){memset(ValueArray,0,sizeof (ValueArray));};_MBData_FloatArray(uint16_t address, uint16_t count):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(address), Count(count), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};_MBData_FloatArray():IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(0), Count(0), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};
} MBData_FloatArray;

封装modbus中的开关量

由于存在读/写单个或者多个寄存器的操作，因此需要定义两种数据类型以应对不同的需要。这些结构体都设置了几种不同参数的构造函数，因方便初始化此类型的变量。需要特别关注为了实现多从机或者多网络通讯而设置的uint16_t PreDevAddr与uint8_t MBDevAddr成员。V2.4版本以后，新增了RetryTimes成员，它用以指示通讯出错时的重试次数。RetryTimes = 1表示通讯出错后不重试，RetryTimes = 2表示首次通讯出错后，再尝试一次通讯。

///定义了方便在modbus协议中使用的uint8_t (bool)类型变量
typedef struct _MBData_Bit
{uint8_t IsExecuted;uint16_t PreDevAddr;      //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;        //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;         //变量的地址，16位地址uint8_t Value;uint8_t RetryTimes;       //重试次数，如果请求读写数据失败，则重试_MBData_Bit(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, uint8_t value, uint8_t retryTimes = 1):IsExecuted(0), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), Value(value), RetryTimes(retryTimes){};_MBData_Bit(uint16_t address, uint8_t value):IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(address), Value(value), RetryTimes(1){};_MBData_Bit():IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(0), Value(0), RetryTimes(1){};
} MBData_Bit;///定义了方便在modbus协议中使用的uint8_t (bool)类型数组（连续地址）
typedef struct _MBData_BitArray
{uint8_t IsExecuted;////// \brief IsExecuted_P///     写寄存器提供了函数重载的功能，可以支持4种类型的参数传入，但是最终加入到写队列的数据类型，都统一转化为MBData_FloatArray/MBData_BitArray类型，///     因此为了能够使得不同数据类型的MB寄存器数据的IsExecuted成员的值都能够被顺利修改，需要一个指针分别指向不同数据类型的IsExecuted成员。uint8_t *IsExecuted_P;uint16_t PreDevAddr;      //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;        //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;         //变量的地址，16位地址uint16_t Count;uint8_t ValueArray[MODBUS_WRITE_CR_MAX_NUM];uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_BitArray(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, uint16_t count, uint8_t retryTimes = 1):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), Count(count), RetryTimes(retryTimes){memset(ValueArray,0,sizeof (ValueArray));};_MBData_BitArray(uint16_t address, uint16_t count):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(address), Count(count), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};_MBData_BitArray():IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(0), Count(0), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};
} MBData_BitArray;

线程锁保护核心数据

考虑到Modbus RTU主机的轮询是在一个新的线程中运行的，因此需要设置线程锁以保护核心队列数据不被其他线程意外的修改。以保持寄存器的读操作为例：

//定义线程锁，用以保护读写队列List
QMutex mutex_RQ_HR;
QMutex mutex_WQ_HR;//读HR入队操作需要加锁（此方法一般是在其他线程调用）
void ModbusRTUMaster::RequestReadHR(MBData_FloatArray *mBData_FloatArray_P)
{mutex_RQ_HR.lock();mBData_FloatArray_P->IsExecuted = 0;ReadQueue_HoldingReg->append(mBData_FloatArray_P);mutex_RQ_HR.unlock();
}//读HR出队操作需要加锁（此方法一般在轮询线程中调用）
int ModbusRTUMaster::ReadHR()
{int result = 0;mutex_RQ_HR.lock();if(!ReadQueue_HoldingReg->isEmpty()){result = OperateModbusRegisters(ReadQueue_HoldingReg->takeFirst(),modbus_read_registers);}mutex_RQ_HR.unlock();return result;
}

寄存器操作封装

modbus四种寄存器总共涉及六种读写操作，通过抽象了寄存器操作函数，并为每一种特定的读、写操作传入相应的处理方法即可大幅度减少ReadIR(), ReadHR(), ReadDR(), ReadCR(), WriteHR(), WriteCR()函数的代码重复，并使得逻辑更加清晰，维护升级更加方便。注意一下四个函数重载，仅仅是handler函数指针的类型不同。

int ModbusRTUMaster::OperateModbusRegisters(MBData_FloatArray *mBData_FloatArray,int (*handler)(modbus_t *ctx, int addr, int nb, uint16_t *dest))
{int result = 0;for(int i = 0; i < mBData_FloatArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_FloatArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_FloatArray->PreDevAddr);result = handler(mb,mBData_FloatArray->Address, mBData_FloatArray->Count*2, mBData_FloatArray->ValueArray[0].Type_16BitArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{msleep(RetryDelayTime);}}mBData_FloatArray->IsExecuted = 1;return result;
}int ModbusRTUMaster::OperateModbusRegisters(MBData_FloatArray *mBData_FloatArray,int (*handler)(modbus_t *ctx, int addr, int nb, const uint16_t *dest))
{int result = 0;for(int i = 0; i < mBData_FloatArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_FloatArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_FloatArray->PreDevAddr);result = handler(mb,mBData_FloatArray->Address, mBData_FloatArray->Count*2, mBData_FloatArray->ValueArray[0].Type_16BitArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{msleep(RetryDelayTime);}}mBData_FloatArray->IsExecuted = 1;return result;
}int ModbusRTUMaster::OperateModbusRegisters(MBData_BitArray *mBData_BitArray,int (*handler)(modbus_t *ctx, int addr, int nb, uint8_t *dest))
{int result = 0;for(int i = 0; i < mBData_BitArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_BitArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_BitArray->PreDevAddr);result = handler(mb, mBData_BitArray->Address, mBData_BitArray->Count, mBData_BitArray->ValueArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{msleep(RetryDelayTime);}}mBData_BitArray->IsExecuted = 1;return result;
}int ModbusRTUMaster::OperateModbusRegisters(MBData_BitArray *mBData_BitArray,int (*handler)(modbus_t *ctx, int addr, int nb, const uint8_t *dest))
{int result = 0;for(int i = 0; i < mBData_BitArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_BitArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_BitArray->PreDevAddr);result = handler(mb, mBData_BitArray->Address, mBData_BitArray->Count, mBData_BitArray->ValueArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{msleep(RetryDelayTime);}}mBData_BitArray->IsExecuted = 1;return result;
}

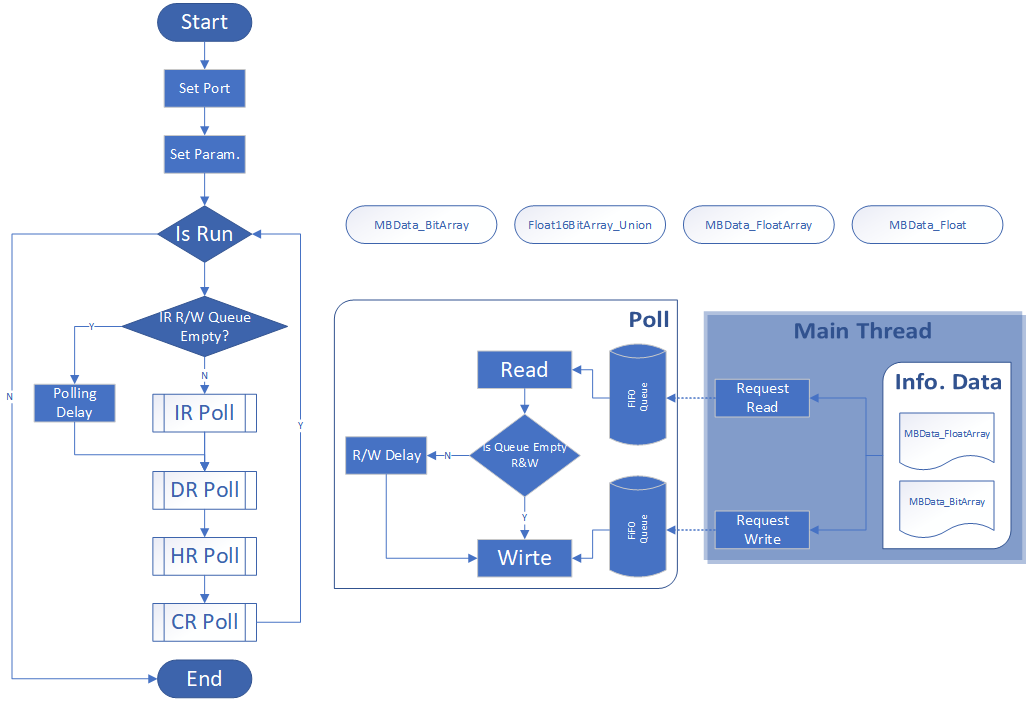

流程设计

控制参数说明

模块插件化

可将此模块按照Qt Plugin的标准开发，以动态链接库的形式提供给外部调用，具体操作请参考《Qt Plugin插件开发指南》。本文涉及的核心源码都是严格按照插件开发的方式给出。

核心源码

工程文件

QT -= guiCONFIG += c++11 console
CONFIG -= app_bundle# The following define makes your compiler emit warnings if you use
# any Qt feature that has been marked deprecated (the exact warnings
# depend on your compiler). Please consult the documentation of the
# deprecated API in order to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS# You can also make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0TARGET = EWhalesModbusRTUMaster# TEMPLATE = lib 生成插件
# TEMPLATE = app 生成应用程序
TEMPLATE = lib
CONFIG  += pluginSOURCES += \main.cpp \modbusrtumaster.cpp \modbusrtumaster.performance.cpp \modbusrtumaster.polling.cpp \modbusrtumaster.read.cpp \modbusrtumaster.write.cppmacx {
INCLUDEPATH += $$PWD/libmodbus-3.1.6/include/modbus
LIBS += -L$$PWD/libmodbus-3.1.6/lib -lmodbusDISTFILES += \libmodbus-3.1.6/lib/libmodbus.5.dylib \libmodbus-3.1.6/lib/libmodbus.dylib \libmodbus-3.1.6/lib/pkgconfig/libmodbus.pc#ICON = Icon.icns
}win32 {INCLUDEPATH += $$PWD/libmodbus-3.1.6-windows/incSOURCES += \libmodbus-3.1.6-windows/src/modbus.c \libmodbus-3.1.6-windows/src/modbus-data.c \libmodbus-3.1.6-windows/src/modbus-rtu.c \libmodbus-3.1.6-windows/src/modbus-tcp.cLIBS += -Llibmodbus-3.1.6-windows/dll -lws2_32DISTFILES += libmodbus-3.1.6-windows/dll/ws2_32.dll#RC_ICONS = whales.ico# 指定生成目录CONFIG(debug,debug|release){DESTDIR = $$PWD/../../Plugins/}else{DESTDIR = $$PWD/../../Plugins/}InterfaceFile = $$PWD/imodbusrtumaster.h#将LibFile中的"/"替换为"\"InterfaceFile = $$replace(InterfaceFile, /, \\)#输出目录也是一样,要将"/"替换为"\"OutLibFile = $$PWD/../../Plugins/OutLibFile = $$replace(OutLibFile, /, \\)system("copy $$InterfaceFile $$OutLibFile")
}# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += targetHEADERS += \imodbusrtumaster.h \modbusrtumaster.h

接口文件

#ifndef IMODBUSRTUMASTER_H
#define IMODBUSRTUMASTER_H#ifndef ISERIALPORT_H
#define ISERIALPORT_H
#include
#include
#include /*
宏定义 接口IID，用来唯一标记该接口类。实际开发中，IID的名称为了避免重复，推荐采用本例所示的方式命名
*/
#define QTPLUGIN_IMODBUSRTUMASTER_IID       "ewhales.plugin.interface.modbusrtumaster"#define MODBUS_WRITE_HR_FLOAT_MAX_NUM       50                                       //最大连续写浮点数数量
#define MODBUS_WRITE_HR_MAX_NUM             (MODBUS_WRITE_HR_FLOAT_MAX_NUM*2)        //最大连续写保持寄存器数量
#define MODBUS_WRITE_CR_MAX_NUM             100                                      //最大连续写线圈寄存器数量//防止重复定义PluginInfo数据类型
#ifndef PLUGININFO_TYPEDEF
#define PLUGININFO_TYPEDEF
typedef struct
{char name[50];char date[50];char version[50];char author[50];char company[50];
} PluginInfo;
#endif///构造了一个联合体，以实现float类型数据与16位数组的快速转换
typedef union
{float Type_Float;uint16_t Type_16BitArray[2];
} Float16BitArray_Union;///定义了方便在modbus协议中使用的float类型变量
typedef struct _MBData_Float
{uint8_t IsExecuted;             //该变量是否已经被执行读写操作uint16_t PreDevAddr;            //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;              //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;               //变量的地址，16位地址Float16BitArray_Union Value;    //用以存储请求到的数据uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_Float(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, float value, uint8_t retryTimes = 1):IsExecuted(0), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), RetryTimes(retryTimes){Value.Type_Float = value;};_MBData_Float(uint16_t address, float value):IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(address), RetryTimes(1){Value.Type_Float = value;};_MBData_Float():IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(0), RetryTimes(1){Value.Type_Float = 0;};
} MBData_Float;///定义了方便在modbus协议中使用的float类型数组（连续地址）
typedef struct _MBData_FloatArray
{uint8_t IsExecuted;////// \brief IsExecuted_P///     写寄存器提供了函数重载的功能，可以支持4种类型的参数传入，但是最终加入到写队列的数据类型，都统一转化为MBData_FloatArray/MBData_BitArray类型，///     因此为了能够使得不同数据类型的MB寄存器数据的IsExecuted成员的值都能够被顺利修改，需要一个指针分别指向不同数据类型的IsExecuted成员。uint8_t *IsExecuted_P;uint16_t PreDevAddr;            //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;              //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;               //变量的地址，16位地址uint16_t Count;Float16BitArray_Union ValueArray[MODBUS_WRITE_HR_FLOAT_MAX_NUM];uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_FloatArray(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, uint16_t count, uint8_t retryTimes = 1):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), Count(count), RetryTimes(retryTimes){memset(ValueArray,0,sizeof (ValueArray));};_MBData_FloatArray(uint16_t address, uint16_t count):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(address), Count(count), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};_MBData_FloatArray():IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(0), Count(0), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};
} MBData_FloatArray;///定义了方便在modbus协议中使用的uint8_t (bool)类型变量
typedef struct _MBData_Bit
{uint8_t IsExecuted;uint16_t PreDevAddr;      //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;        //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;         //变量的地址，16位地址uint8_t Value;uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_Bit(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, uint8_t value, uint8_t retryTimes = 1):IsExecuted(0), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), Value(value), RetryTimes(retryTimes){};_MBData_Bit(uint16_t address, uint8_t value):IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(address), Value(value), RetryTimes(1){};_MBData_Bit():IsExecuted(0), PreDevAddr(0), MBDevAddr(0x01), Address(0), Value(0), RetryTimes(1){};
} MBData_Bit;///定义了方便在modbus协议中使用的uint8_t (bool)类型数组（连续地址）
typedef struct _MBData_BitArray
{uint8_t IsExecuted;////// \brief IsExecuted_P///     写寄存器提供了函数重载的功能，可以支持4种类型的参数传入，但是最终加入到写队列的数据类型，都统一转化为MBData_FloatArray/MBData_BitArray类型，///     因此为了能够使得不同数据类型的MB寄存器数据的IsExecuted成员的值都能够被顺利修改，需要一个指针分别指向不同数据类型的IsExecuted成员。uint8_t *IsExecuted_P;uint16_t PreDevAddr;      //Modbus硬件通讯介质地址（例如使用无线透传模块，其本身可能也会有一个地址）；uint8_t MBDevAddr;        //Modbus从机设备地址，即Modbus协议规定的协议；uint16_t Address;         //变量的地址，16位地址uint16_t Count;uint8_t ValueArray[MODBUS_WRITE_CR_MAX_NUM];uint8_t RetryTimes;             //重试次数，如果请求读写数据失败，则重试_MBData_BitArray(uint16_t preDevAddr, uint8_t mBDevAddr, uint16_t address, uint16_t count, uint8_t retryTimes = 1):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(preDevAddr), MBDevAddr(mBDevAddr), Address(address), Count(count), RetryTimes(retryTimes){memset(ValueArray,0,sizeof (ValueArray));};_MBData_BitArray(uint16_t address, uint16_t count):IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(address), Count(count), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};_MBData_BitArray():IsExecuted(0), IsExecuted_P(&IsExecuted), PreDevAddr(0), MBDevAddr(0x01), Address(0), Count(0), RetryTimes(1){memset(ValueArray,0,sizeof (ValueArray));};
} MBData_BitArray;/*
接口需要定义成纯虚函数
*/
class IModbusRTUMaster
{
public:virtual PluginInfo GetPluginInfo()=0;virtual void SetPortParam(const char *portName, int baudRate, char parity, int dataBit, int stopBit)=0;virtual void SetSlaveAddr(uint8_t slaveAddr)=0;virtual int GetMasterState()=0;/*** @brief SetMasterPollingInterval*      Interval of polling of different registers.*      e.g. IR_Poll -> interval -> DR_Poll -> interval -> HR_Poll -> interval -> CR_Poll -> ...* @param ms interval time, unit is ms.*/virtual void SetMasterPollingInterval(uint16_t ms)=0;/*** @brief SetMasterRegRWInterval*      Interval of read and write registers.*      e.g. In HR_Poll, ReadHR -> interval -> WriteHR* @param ms interval time, unit is ms.*/virtual void SetMasterRegRWInterval(uint16_t ms)=0;/*** @brief SetResponseTimeout*      The full confirmation response must be received before expiration of the response timeout.* @param ms timeout of the response (millisecond).*/virtual void SetResponseTimeout(uint16_t ms)=0;/*** @brief InitModbus Try to initialize of the modbus*     1. Creat new  modbus_rtu instance.*     2. Set parameters of the modbus, such as slave address.*     3. Connect the modbus port.* @return result of initialization of the modbus*     @arg 0: Initialization successfully.*     @arg -1: Create modbus content failed.*     @arg -2: Set modbus slave address failed.*     @arg -3: Open modbus port failed.*/virtual int InitModbus()=0;/*** @brief CloseModbus*     Close and free modbus.*/virtual void CloseModbus()=0;/*** @brief StartMaster*     Start modbus master poll to handle write/read request.*/virtual void StartMaster()=0;/*** @brief StopMaster*     Stop modbus master poll.*/virtual void StopMaster()=0;//注意，此接口的重载不支持前置地址与从机地址设定，在后面的版本中可能废弃，应当尽量避免使用。virtual void RequestWriteHR(uint16_t address, uint16_t count, float *dataArray)=0;virtual void RequestWriteHR(MBData_FloatArray *mBData_FloatArray)=0;//注意，此接口的重载不支持前置地址与从机地址设定，在后面的版本中可能废弃，应当尽量避免使用。virtual void RequestWriteHR(uint16_t address, float data)=0;virtual void RequestWriteHR(MBData_Float *mBData_Float)=0;//注意，此接口的重载不支持前置地址与从机地址设定，在后面的版本中可能废弃，应当尽量避免使用。virtual void RequestWriteCR(uint16_t address, uint16_t count, uint8_t* dataArray)=0;virtual void RequestWriteCR(MBData_BitArray *mBData_BitArray)=0;//注意，此接口的重载不支持前置地址与从机地址设定，在后面的版本中可能废弃，应当尽量避免使用。virtual void RequestWriteCR(uint16_t address, uint8_t data)=0;virtual void RequestWriteCR(MBData_Bit *mBData_Bit)=0;virtual void RequestReadIR(MBData_FloatArray *mBData_FloatArray_P)=0;virtual void RequestReadHR(MBData_FloatArray *mBData_FloatArray_P)=0;virtual void RequestReadDR(MBData_BitArray *mBData_BitArray_P)=0;virtual void RequestReadCR(MBData_BitArray *mBData_BitArray_P)=0;//开放发送任意数据的接口，但不由于没有限制与保护机制，因此应尽量避免调用virtual void WriteFreeMsg(uint8_t *msg, int msg_length)=0;//设置是否使能前置通讯地址功能（考虑到ModbusRTU协议可能使用一些通讯模块，它们本身也存在一个地址）virtual void SetPreCommAddrState(uint8_t state)=0;virtual void SetPreCommAddrWidth(uint8_t width)=0;//设置是否使能多modbus从机的功能virtual void SetMbMultiSlaveState(uint8_t state)=0;//获取读写队列缓冲数据量，可以用它们表示当前负载，并据此调整读写轮询速率virtual int Get_WriteCR_QueueCount() = 0;virtual int Get_WriteHR_QueueCount() = 0;virtual int Get_ReadCR_QueueCount() = 0;virtual int Get_ReadHR_QueueCount() = 0;virtual int Get_ReadDR_QueueCount() = 0;virtual int Get_ReadIR_QueueCount() = 0;//设置读写队列最大缓冲数量（超出最大缓冲数量后，将移除最早的数据）virtual void Set_WriteCR_QueueMaxCount(uint32_t count) = 0;virtual void Set_WriteHR_QueueMaxCount(uint32_t count) = 0;virtual void Set_ReadCR_QueueMaxCount(uint32_t count) = 0;virtual void Set_ReadHR_QueueMaxCount(uint32_t count) = 0;virtual void Set_ReadDR_QueueMaxCount(uint32_t count) = 0;virtual void Set_ReadIR_QueueMaxCount(uint32_t count) = 0;//清空读写队列缓冲数据virtual void Clear_WriteCR_Queue() = 0;virtual void Clear_WriteHR_Queue() = 0;virtual void Clear_ReadCR_Queue() = 0;virtual void Clear_ReadHR_Queue() = 0;virtual void Clear_ReadDR_Queue() = 0;virtual void Clear_ReadIR_Queue() = 0;//获取读写队列通讯错误计数virtual uint32_t Get_WriteCR_Queue_ErrCount() = 0;virtual uint32_t Get_WriteHR_Queue_ErrCount() = 0;virtual uint32_t Get_ReadCR_Queue_ErrCount() = 0;virtual uint32_t Get_ReadHR_Queue_ErrCount() = 0;virtual uint32_t Get_ReadDR_Queue_ErrCount() = 0;virtual uint32_t Get_ReadIR_Queue_ErrCount() = 0;//清空读写队列通讯错误计数virtual void Clear_WriteCR_Queue_ErrCount() = 0;virtual void Clear_WriteHR_Queue_ErrCount() = 0;virtual void Clear_ReadCR_Queue_ErrCount() = 0;virtual void Clear_ReadHR_Queue_ErrCount() = 0;virtual void Clear_ReadDR_Queue_ErrCount() = 0;virtual void Clear_ReadIR_Queue_ErrCount() = 0;//设置重试延时。当数据读写失败时，延时delay毫秒后重发数据请求virtual void Set_RetryDelayTime(uint16_t delay) = 0;///Override as signals.//注意，此信号的效果等同于Get_IRData_Failed信号，在后面的版本中可能废弃，应当尽量避免使用。virtual void lostConnection(QString errorInfo) = 0;//Read modbus registers failedvirtual void Get_IRData_Failed(QString errorInfo) = 0;virtual void Get_HRData_Failed(QString errorInfo) = 0;virtual void Get_DRData_Failed(QString errorInfo) = 0;virtual void Get_CRData_Failed(QString errorInfo) = 0;//Write modbus registers failedvirtual void Set_HRData_Failed(QString errorInfo) = 0;virtual void Set_CRData_Failed(QString errorInfo) = 0;
};/*
为了能够在运行时查询插件是否实现给定的接口，我们必须使用宏Q_DECLARE_INTERFACE()，该宏的第一参数为接口类的名称，第二个参数是一个字符串，用于唯一标记该接口类。
*/
Q_DECLARE_INTERFACE (IModbusRTUMaster, QTPLUGIN_IMODBUSRTUMASTER_IID)#endif // EW_SERIALPORT_INTERFACE#endif // IMODBUSRTUMASTER_H

头文件 - “modbusrtumaster.h”

#ifndef MODBUSRTUMASTER_H
#define MODBUSRTUMASTER_H#include
#include
#include
#include #include "imodbusrtumaster.h"
#include "modbus.h"#define IMODBUSRTUMASTER_NAME     "IModbusRTUMaster"
#define IMODBUSRTUMASTER_VERSION  "V2.5.1Beta"
#define IMODBUSRTUMASTER_AUTHOR   "Tao Wang"
#define IMODBUSRTUMASTER_COMPANY  "Alwhales Tech."class ModbusRTUMaster : public QThread, public IModbusRTUMaster
{Q_OBJECT/*使用Q_INTERFACES声明：类支持ISerialPort*/Q_INTERFACES(IModbusRTUMaster)/*Qt4与Qt5的插件开发方式略有差异，此处采用条件编译可以实现版本兼容*/#if QT_VERSION >= 0x050000Q_PLUGIN_METADATA(IID QTPLUGIN_IMODBUSRTUMASTER_IID)#endifpublic:ModbusRTUMaster();~ModbusRTUMaster();modbus_t *mb = nullptr;void ProcessPreCommAddr(uint16_t preAddr);void ProcessMultiSlaveSwitch(uint8_t slaveAddr);PluginInfo GetPluginInfo() Q_DECL_OVERRIDE;void SetPortParam(const char *portName, int baudRate, char parity, int dataBit, int stopBit) Q_DECL_OVERRIDE;void SetSlaveAddr(uint8_t slaveAddr) Q_DECL_OVERRIDE;int GetMasterState() Q_DECL_OVERRIDE;void SetMasterPollingInterval(uint16_t ms) Q_DECL_OVERRIDE;void SetMasterRegRWInterval(uint16_t ms) Q_DECL_OVERRIDE;void SetResponseTimeout(uint16_t ms) Q_DECL_OVERRIDE;int InitModbus() Q_DECL_OVERRIDE;void CloseModbus() Q_DECL_OVERRIDE;void StartMaster() Q_DECL_OVERRIDE;void StopMaster() Q_DECL_OVERRIDE;void RequestWriteHR(uint16_t address, uint16_t count, float *dataArray) Q_DECL_OVERRIDE;void RequestWriteHR(MBData_FloatArray *mBData_FloatArray) Q_DECL_OVERRIDE;void RequestWriteHR(uint16_t address, float data) Q_DECL_OVERRIDE;void RequestWriteHR(MBData_Float *mBData_Float) Q_DECL_OVERRIDE;void RequestWriteCR(uint16_t address, uint16_t count, uint8_t* dataArray) Q_DECL_OVERRIDE;void RequestWriteCR(MBData_BitArray *mBData_BitArray) Q_DECL_OVERRIDE;void RequestWriteCR(uint16_t address, uint8_t data) Q_DECL_OVERRIDE;void RequestWriteCR(MBData_Bit *mBData_Bit) Q_DECL_OVERRIDE;void RequestReadIR(MBData_FloatArray *mBData_FloatArray_P) Q_DECL_OVERRIDE;void RequestReadHR(MBData_FloatArray *mBData_FloatArray_P) Q_DECL_OVERRIDE;void RequestReadDR(MBData_BitArray *mBData_BitArray_P) Q_DECL_OVERRIDE;void RequestReadCR(MBData_BitArray *mBData_BitArray_P) Q_DECL_OVERRIDE;//开放发送任意数据的接口void WriteFreeMsg(uint8_t *msg, int msg_length) Q_DECL_OVERRIDE;//设置是否使能前置通讯地址功能（考虑到ModbusRTU协议可能使用一些通讯模块，它们本身也存在一个地址）void SetPreCommAddrState(uint8_t state) Q_DECL_OVERRIDE;void SetPreCommAddrWidth(uint8_t width) Q_DECL_OVERRIDE;//设置是否使能多modbus从机的功能以及切换从机的状态void SetMbMultiSlaveState(uint8_t state) Q_DECL_OVERRIDE;//获取读写队列缓冲数据量，可以用它们表示当前负载，并据此调整读写轮询速率int Get_WriteCR_QueueCount() Q_DECL_OVERRIDE;int Get_WriteHR_QueueCount() Q_DECL_OVERRIDE;int Get_ReadCR_QueueCount() Q_DECL_OVERRIDE;int Get_ReadHR_QueueCount() Q_DECL_OVERRIDE;int Get_ReadDR_QueueCount() Q_DECL_OVERRIDE;int Get_ReadIR_QueueCount() Q_DECL_OVERRIDE;void Set_WriteCR_QueueMaxCount(uint32_t count) Q_DECL_OVERRIDE;void Set_WriteHR_QueueMaxCount(uint32_t count) Q_DECL_OVERRIDE;void Set_ReadCR_QueueMaxCount(uint32_t count) Q_DECL_OVERRIDE;void Set_ReadHR_QueueMaxCount(uint32_t count) Q_DECL_OVERRIDE;void Set_ReadDR_QueueMaxCount(uint32_t count) Q_DECL_OVERRIDE;void Set_ReadIR_QueueMaxCount(uint32_t count) Q_DECL_OVERRIDE;//清空读写队列缓冲数据void Clear_WriteCR_Queue() Q_DECL_OVERRIDE;void Clear_WriteHR_Queue() Q_DECL_OVERRIDE;void Clear_ReadCR_Queue() Q_DECL_OVERRIDE;void Clear_ReadHR_Queue() Q_DECL_OVERRIDE;void Clear_ReadDR_Queue() Q_DECL_OVERRIDE;void Clear_ReadIR_Queue() Q_DECL_OVERRIDE;//获取读写队列通讯错误计数uint32_t Get_WriteCR_Queue_ErrCount() Q_DECL_OVERRIDE;uint32_t Get_WriteHR_Queue_ErrCount() Q_DECL_OVERRIDE;uint32_t Get_ReadCR_Queue_ErrCount() Q_DECL_OVERRIDE;uint32_t Get_ReadHR_Queue_ErrCount() Q_DECL_OVERRIDE;uint32_t Get_ReadDR_Queue_ErrCount() Q_DECL_OVERRIDE;uint32_t Get_ReadIR_Queue_ErrCount() Q_DECL_OVERRIDE;//清空读写队列通讯错误计数void Clear_WriteCR_Queue_ErrCount() Q_DECL_OVERRIDE;void Clear_WriteHR_Queue_ErrCount() Q_DECL_OVERRIDE;void Clear_ReadCR_Queue_ErrCount() Q_DECL_OVERRIDE;void Clear_ReadHR_Queue_ErrCount() Q_DECL_OVERRIDE;void Clear_ReadDR_Queue_ErrCount() Q_DECL_OVERRIDE;void Clear_ReadIR_Queue_ErrCount() Q_DECL_OVERRIDE;//设置重试延时。当数据读写失败时，延时delay毫秒后重发数据请求void Set_RetryDelayTime(uint16_t delay) Q_DECL_OVERRIDE;//操作modbus寄存器的抽象函数，通过传入对应的寄存器读写方法操作不同的寄存器int OperateModbusRegisters(MBData_FloatArray *mBData_FloatArray, int (*handler)(modbus_t *, int, int, uint16_t *));int OperateModbusRegisters(MBData_BitArray *mBData_BitArray, int (*handler)(modbus_t *, int, int, uint8_t *));static void FloatToBit16Array(float *floatArray, uint16_t *bitArray, uint16_t floatNum);static void Bit16ArrayToFloat(uint16_t *bit16Array, float *floatArray, uint16_t floatNum);int OperateModbusRegisters(MBData_FloatArray *mBData_FloatArray, int (*handler)(modbus_t *, int, int, const uint16_t *));int OperateModbusRegisters(MBData_BitArray *mBData_BitArray, int (*handler)(modbus_t *, int, int, const uint8_t *));
protected:private://线程锁，用以加锁核心的队列listQMutex mutex_WQ_HR;QMutex mutex_WQ_CR;QMutex mutex_RQ_HR;QMutex mutex_RQ_CR;QMutex mutex_RQ_IR;QMutex mutex_RQ_DR;//    modbus_t *mb;QMutex mutex_RunCtrl;int runControl = 0;int isModbusRun = 0;char _portName[50];                 //存储Port name的字节数组，注意不能使用指针，因为传入的临时变量可能会被释放int _baudRate = 115200;char _parity = 'N';                 //'N', 'E', 'O'int _dataBit = 8;                   //7, 8int _stopBit = 1;                   //1, 2uint8_t mbSlaveAddr = 0x01;         //Modbus协议中的从机地址, default value = 0x01uint16_t preCommAddr = 0x0000;      //前置从机地址（目标通讯模块地址）, default value = 0x0000uint8_t preCommAddr_size = 2;       //前置从机地址位数（8位/16位）, default value = 2uint8_t preCommAddr_enable = 0;     //是否使能发送前置从机地址, default value = 0uint8_t multiMbSlave_enable = 0;    //是否使能多modbus从机通讯机制, default value = 0uint16_t pollingInterval = 50;      //interval of polling each kinds of registersuint16_t regRWInterval = 50;        //interval of read and write registersQList *WriteQueue_HoldingReg;QList *WriteQueue_CoilsReg;QList *ReadQueue_HoldingReg;QList *ReadQueue_CoilsReg;QList *ReadQueue_InputReg;QList *ReadQueue_DiscreteReg;uint32_t ErrorCount_WriteCR_Queue = 0;uint32_t ErrorCount_WriteHR_Queue = 0;uint32_t ErrorCount_ReadCR_Queue = 0;uint32_t ErrorCount_ReadHR_Queue = 0;uint32_t ErrorCount_ReadDR_Queue = 0;uint32_t ErrorCount_ReadIR_Queue = 0;uint32_t MaxCount_WriteCR_Queue = 100;uint32_t MaxCount_WriteHR_Queue = 100;uint32_t MaxCount_ReadCR_Queue = 100;uint32_t MaxCount_ReadHR_Queue = 100;uint32_t MaxCount_ReadDR_Queue = 100;uint32_t MaxCount_ReadIR_Queue = 100;uint16_t RetryDelayTime = 10;           //重试延时时间，默认10 msvoid run() Q_DECL_OVERRIDE;void stop();void Polling();int IR_Poll();int HR_Poll();int DR_Poll();int CR_Poll();int ReadIR();int ReadHR();int ReadDR();int ReadCR();int WriteHR();int WriteCR();void ParseIR();void ParseHR();void ParseDR();void ParseCR();//    void ProcessPreCommAddr(uint16_t preAddr);
//    void ProcessMultiSlaveSwitch(uint8_t slaveAddr);signals:void lostConnection(QString errorInfo) Q_DECL_OVERRIDE;void Get_IRData_Failed(QString errorInfo) Q_DECL_OVERRIDE;void Get_HRData_Failed(QString errorInfo) Q_DECL_OVERRIDE;void Get_DRData_Failed(QString errorInfo) Q_DECL_OVERRIDE;void Get_CRData_Failed(QString errorInfo) Q_DECL_OVERRIDE;void Set_HRData_Failed(QString errorInfo) Q_DECL_OVERRIDE;void Set_CRData_Failed(QString errorInfo) Q_DECL_OVERRIDE;};#endif // MODBUSRTUMASTER_H

源文件

按照功能将源文件拆分为5个源文件，分别为***”modbusmaster.cpp“***, “modbusrtumaster.performance.cpp“, ”modbusrtumaster.polling.cpp“, ”modbusrtumaster.read.cpp“, ”modbusrtumaster.write.cpp“：

modbusmaster.cpp

#include "modbusrtumaster.h"
#include
#include ModbusRTUMaster::ModbusRTUMaster()
{//Constructs an empty list.WriteQueue_HoldingReg = new QList();WriteQueue_CoilsReg = new QList();ReadQueue_HoldingReg = new QList();ReadQueue_CoilsReg = new QList();ReadQueue_InputReg = new QList();ReadQueue_DiscreteReg = new QList();
}ModbusRTUMaster::~ModbusRTUMaster()
{stop();quit();wait();
}PluginInfo ModbusRTUMaster::GetPluginInfo()
{PluginInfo pluginInfo;sprintf(pluginInfo.name, IMODBUSRTUMASTER_NAME);sprintf(pluginInfo.date, "%s %s", __DATE__, __TIME__);sprintf(pluginInfo.version, "%s", IMODBUSRTUMASTER_VERSION);sprintf(pluginInfo.author, "%s", IMODBUSRTUMASTER_AUTHOR);sprintf(pluginInfo.company, "%s", IMODBUSRTUMASTER_COMPANY);return pluginInfo;
}void ModbusRTUMaster::run()
{qDebug() << "\tModbus RTU host thread ID: " << currentThreadId();Polling();isModbusRun = 0;runControl = 0;
}void ModbusRTUMaster::stop()
{mutex_RunCtrl.lock();runControl = 0;mutex_RunCtrl.unlock();
}void ModbusRTUMaster::SetPortParam(const char *portName, int baudRate, char parity, int dataBit, int stopBit)
{strcpy(this->_portName, portName);this->_baudRate = baudRate;this->_parity = parity;this->_dataBit = dataBit;this->_stopBit = stopBit;
}void ModbusRTUMaster::SetSlaveAddr(uint8_t addr)
{mbSlaveAddr = addr;modbus_set_slave(mb, mbSlaveAddr);
}int ModbusRTUMaster::GetMasterState()
{return isModbusRun;
}void ModbusRTUMaster::SetMasterPollingInterval(uint16_t ms)
{pollingInterval = ms;
}void ModbusRTUMaster::SetMasterRegRWInterval(uint16_t ms)
{regRWInterval = ms;
}void ModbusRTUMaster::SetResponseTimeout(uint16_t ms)
{//设置modbus响应超时时间struct timeval t;t.tv_sec = ms / 1000;       //st.tv_usec = ms % 1000 * 1000; //usmodbus_set_response_timeout(mb, t.tv_sec, t.tv_usec);
}void ModbusRTUMaster::StartMaster()
{runControl = 1;isModbusRun = 1;start();
}void ModbusRTUMaster::StopMaster()
{stop();wait();
}int ModbusRTUMaster::InitModbus()
{QString errorMsg;//创建modbus实例//mb = modbus_new_rtu(_mainWindow->Port_Name.toStdString().c_str(), _mainWindow->Port_BaudRate, _mainWindow->Port_Parity, _mainWindow->Port_DataBit, _mainWindow->Port_StopBit);mb = modbus_new_rtu(_portName, _baudRate, _parity, _dataBit, _stopBit);if (NULL == mb){errorMsg = QString("Create modbus content failed: %1\n").arg(modbus_strerror(errno));emit lostConnection(errorMsg);return -1;}//设置modbus从机地址if (modbus_set_slave(mb, mbSlaveAddr) == -1){errorMsg = QString("Set modbus slave address failed: %1\n").arg(modbus_strerror(errno));emit lostConnection(errorMsg);return -2;}//设置modbus响应时间为500msSetResponseTimeout(500);//连接modbus端口if(modbus_connect(mb) == -1){errorMsg = QString("Open modbus port failed: %1\n").arg(modbus_strerror(errno));emit lostConnection(errorMsg);return -3;}//    modbus_set_debug(mb, 1);return 0;
}void ModbusRTUMaster::CloseModbus()
{modbus_close(mb);modbus_free(mb);
}void ModbusRTUMaster::ParseIR()
{}void ModbusRTUMaster::ParseHR()
{}void ModbusRTUMaster::ParseDR()
{}void ModbusRTUMaster::ParseCR()
{}void ModbusRTUMaster::WriteFreeMsg(uint8_t *msg, int msg_length)
{if(mb != nullptr){modbus_send_freemsg(mb, msg, msg_length);}
}void ModbusRTUMaster::SetPreCommAddrState(uint8_t state)
{preCommAddr_enable = state;
}void ModbusRTUMaster::SetPreCommAddrWidth(uint8_t width)
{preCommAddr_size = width;
}void ModbusRTUMaster::SetMbMultiSlaveState(uint8_t state)
{multiMbSlave_enable = state;
}void ModbusRTUMaster::ProcessPreCommAddr(uint16_t preAddr)
{uint8_t addr, addr1, addr2;//使能前置通讯地址功能if(preCommAddr_enable != 0){switch (preCommAddr_size){case 1:addr = (uint8_t)preAddr;modbus_send_freemsg(mb, &addr, 1);break;case 2:addr1 = (uint8_t)(preAddr >> 8);addr2 = (uint8_t)(preAddr >> 0);//一般是先发送高位，再发送低位modbus_send_freemsg(mb, &addr1, 1);modbus_send_freemsg(mb, &addr2, 1);break;default:break;}}
}void ModbusRTUMaster::ProcessMultiSlaveSwitch(uint8_t slaveAddr)
{//使能多从机切换功能if(multiMbSlave_enable != 0){SetSlaveAddr(slaveAddr);}
}int ModbusRTUMaster::OperateModbusRegisters(MBData_FloatArray *mBData_FloatArray, int (*handler)(modbus_t *ctx, int addr, int nb, uint16_t *dest))
{int result = 0;for(int i = 0; i < mBData_FloatArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_FloatArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_FloatArray->PreDevAddr);result = handler(mb, mBData_FloatArray->Address, mBData_FloatArray->Count * 2, mBData_FloatArray->ValueArray[0].Type_16BitArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{qDebug() << QString("Retry do handler of MB registers: %1.").arg(i + 1);msleep(RetryDelayTime);}}*mBData_FloatArray->IsExecuted_P = 1;return result;
}int ModbusRTUMaster::OperateModbusRegisters(MBData_FloatArray *mBData_FloatArray, int (*handler)(modbus_t *ctx, int addr, int nb, const uint16_t *dest))
{int result = 0;for(int i = 0; i < mBData_FloatArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_FloatArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_FloatArray->PreDevAddr);result = handler(mb, mBData_FloatArray->Address, mBData_FloatArray->Count * 2, mBData_FloatArray->ValueArray[0].Type_16BitArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{qDebug() << QString("Retry do handler of MB registers: %1.").arg(i + 1);msleep(RetryDelayTime);}}*mBData_FloatArray->IsExecuted_P = 1;return result;
}int ModbusRTUMaster::OperateModbusRegisters(MBData_BitArray *mBData_BitArray, int (*handler)(modbus_t *ctx, int addr, int nb, uint8_t *dest))
{int result = 0;for(int i = 0; i < mBData_BitArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_BitArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_BitArray->PreDevAddr);result = handler(mb, mBData_BitArray->Address, mBData_BitArray->Count, mBData_BitArray->ValueArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{qDebug() << QString("Retry do handler of MB registers: %1.").arg(i + 1);msleep(RetryDelayTime);}}*mBData_BitArray->IsExecuted_P = 1;return result;
}int ModbusRTUMaster::OperateModbusRegisters(MBData_BitArray *mBData_BitArray, int (*handler)(modbus_t *ctx, int addr, int nb, const uint8_t *dest))
{int result = 0;for(int i = 0; i < mBData_BitArray->RetryTimes; i++){//处理多从机切换ProcessMultiSlaveSwitch(mBData_BitArray->MBDevAddr);//处理前置通讯地址ProcessPreCommAddr(mBData_BitArray->PreDevAddr);result = handler(mb, mBData_BitArray->Address, mBData_BitArray->Count, mBData_BitArray->ValueArray);//如果读写成功，则退出循环if(result != -1){break;}//如果读写失败，则延时后重试else{qDebug() << QString("Retry do handler of MB registers: %1.").arg(i + 1);msleep(RetryDelayTime);}}*mBData_BitArray->IsExecuted_P = 1;return result;
}void ModbusRTUMaster::FloatToBit16Array(float *floatArray, uint16_t *bit16Array, uint16_t floatNum)
{for(uint8_t i = 0; i < floatNum; i++){bit16Array[0 + 2 * i] = ((uint16_t *)(&floatArray[i]))[0];bit16Array[1 + 2 * i] = ((uint16_t *)(&floatArray[i]))[1];}
}void ModbusRTUMaster::Bit16ArrayToFloat(uint16_t *bit16Array, float *floatArray, uint16_t floatNum)
{for (uint8_t i = 0; i < floatNum; i++){((uint16_t *)(&floatArray[i]))[0] = bit16Array[0 + 2 * i];((uint16_t *)(&floatArray[i]))[1] = bit16Array[1 + 2 * i];}
}/*
Qt4与Qt5的插件开发方式略有差异，此处采用条件编译可以实现版本兼容。
导出Qt插件，第一参数为插件的IID，第二个参数为实现接口的类。
*/
#if QT_VERSION < 0x050000Q_EXPORT_PLUGIN2(QTPLUGIN_IMODBUSRTUMASTER_IID, ModbusRTUMaster)
#endif

modbusrtumaster.performance.cpp

#include "modbusrtumaster.h"int ModbusRTUMaster::Get_WriteCR_QueueCount()
{mutex_WQ_CR.lock();int count = WriteQueue_CoilsReg->count();mutex_WQ_CR.unlock();return count;
}int ModbusRTUMaster::Get_WriteHR_QueueCount()
{mutex_WQ_HR.lock();int count = WriteQueue_HoldingReg->count();mutex_WQ_HR.unlock();return count;
}int ModbusRTUMaster::Get_ReadCR_QueueCount()
{mutex_RQ_CR.lock();int count = ReadQueue_CoilsReg->count();mutex_RQ_CR.unlock();return count;
}int ModbusRTUMaster::Get_ReadHR_QueueCount()
{mutex_RQ_HR.lock();int count = ReadQueue_HoldingReg->count();mutex_RQ_HR.unlock();return count;
}int ModbusRTUMaster::Get_ReadDR_QueueCount()
{mutex_RQ_DR.lock();int count = ReadQueue_DiscreteReg->count();mutex_RQ_DR.unlock();return count;
}int ModbusRTUMaster::Get_ReadIR_QueueCount()
{mutex_RQ_IR.lock();int count = ReadQueue_InputReg->count();mutex_RQ_IR.unlock();return count;
}void ModbusRTUMaster::Set_WriteCR_QueueMaxCount(uint32_t count)
{MaxCount_WriteCR_Queue = count;
}void ModbusRTUMaster::Set_WriteHR_QueueMaxCount(uint32_t count)
{MaxCount_WriteHR_Queue = count;
}void ModbusRTUMaster::Set_ReadCR_QueueMaxCount(uint32_t count)
{MaxCount_ReadCR_Queue = count;
}void ModbusRTUMaster::Set_ReadHR_QueueMaxCount(uint32_t count)
{MaxCount_ReadHR_Queue = count;
}void ModbusRTUMaster::Set_ReadDR_QueueMaxCount(uint32_t count)
{MaxCount_ReadDR_Queue = count;
}void ModbusRTUMaster::Set_ReadIR_QueueMaxCount(uint32_t count)
{MaxCount_ReadIR_Queue = count;
}void ModbusRTUMaster::Clear_WriteCR_Queue()
{mutex_WQ_CR.lock();WriteQueue_CoilsReg->clear();mutex_WQ_CR.unlock();
}void ModbusRTUMaster::Clear_WriteHR_Queue()
{mutex_WQ_HR.lock();WriteQueue_HoldingReg->clear();mutex_WQ_HR.unlock();
}void ModbusRTUMaster::Clear_ReadCR_Queue()
{mutex_RQ_CR.lock();ReadQueue_CoilsReg->clear();mutex_RQ_CR.unlock();
}void ModbusRTUMaster::Clear_ReadHR_Queue()
{mutex_RQ_HR.lock();ReadQueue_HoldingReg->clear();mutex_RQ_HR.unlock();
}void ModbusRTUMaster::Clear_ReadDR_Queue()
{mutex_RQ_DR.lock();ReadQueue_DiscreteReg->clear();mutex_RQ_DR.unlock();
}void ModbusRTUMaster::Clear_ReadIR_Queue()
{mutex_RQ_IR.lock();ReadQueue_InputReg->clear();mutex_RQ_IR.unlock();
}uint32_t ModbusRTUMaster::Get_WriteCR_Queue_ErrCount()
{return ErrorCount_WriteCR_Queue;
}uint32_t ModbusRTUMaster::Get_WriteHR_Queue_ErrCount()
{return ErrorCount_WriteHR_Queue;
}uint32_t ModbusRTUMaster::Get_ReadCR_Queue_ErrCount()
{return ErrorCount_ReadCR_Queue;
}uint32_t ModbusRTUMaster::Get_ReadHR_Queue_ErrCount()
{return ErrorCount_ReadHR_Queue;
}uint32_t ModbusRTUMaster::Get_ReadDR_Queue_ErrCount()
{return ErrorCount_ReadDR_Queue;
}uint32_t ModbusRTUMaster::Get_ReadIR_Queue_ErrCount()
{return ErrorCount_ReadIR_Queue;
}void ModbusRTUMaster::Clear_WriteCR_Queue_ErrCount()
{ErrorCount_WriteCR_Queue = 0;
}void ModbusRTUMaster::Clear_WriteHR_Queue_ErrCount()
{ErrorCount_WriteHR_Queue = 0;
}void ModbusRTUMaster::Clear_ReadCR_Queue_ErrCount()
{ErrorCount_ReadCR_Queue = 0;
}void ModbusRTUMaster::Clear_ReadHR_Queue_ErrCount()
{ErrorCount_ReadHR_Queue = 0;
}void ModbusRTUMaster::Clear_ReadDR_Queue_ErrCount()
{ErrorCount_ReadDR_Queue = 0;
}void ModbusRTUMaster::Clear_ReadIR_Queue_ErrCount()
{ErrorCount_ReadIR_Queue = 0;
}void ModbusRTUMaster::Set_RetryDelayTime(uint16_t delay)
{RetryDelayTime = delay;
}

modbusmaster.polling.cpp

#include "modbusrtumaster.h"
#include void ModbusRTUMaster::Polling()
{static uint8_t pollControl = 0;while(true){switch (pollControl){case 0://something to pollif(IR_Poll() != 0){msleep(pollingInterval);}break;case 1://something to pollif(DR_Poll() != 0){msleep(pollingInterval);}break;case 2://something to pollif(HR_Poll() != 0){msleep(pollingInterval);}break;case 3://something to pollif(CR_Poll() != 0){msleep(pollingInterval);}break;default:pollControl = 0;break;}if(pollControl > 3 - 1)     //pollControl == 3{pollControl = 0;}else{pollControl++;}//Stop the thread.mutex_RunCtrl.lock();if(runControl == 0){mutex_RunCtrl.unlock();break;}mutex_RunCtrl.unlock();}
}/*** @brief ModbusRTUMaster::IR_Poll* @return 0: nothing to poll 1: something to poll*/
int ModbusRTUMaster::IR_Poll()
{//IR polling queue is empty.if(ReadQueue_InputReg->isEmpty()){return 0;}if (ReadIR() == -1){ErrorCount_ReadIR_Queue++;}else{ParseIR();}return 1;
}/*** @brief ModbusRTUMaster::HR_Poll* @return 0: nothing to poll 1: something to poll*/
int ModbusRTUMaster::HR_Poll()
{//HR polling is empty.if(WriteQueue_HoldingReg->isEmpty() && ReadQueue_HoldingReg->isEmpty()){return 0;}if (ReadHR() == -1){ErrorCount_ReadHR_Queue++;}else{ParseHR();}//Read and write queue are both not emptyif((!ReadQueue_HoldingReg->isEmpty()) && (!WriteQueue_HoldingReg->isEmpty())){msleep(regRWInterval);}if(WriteHR() == -1){ErrorCount_WriteHR_Queue++;}return 1;
}/*** @brief ModbusRTUMaster::DR_Poll* @return 0: nothing to poll 1: something to poll*/
int ModbusRTUMaster::DR_Poll()
{//DR polling queue is empty.if(ReadQueue_DiscreteReg->isEmpty()){return 0;}if (ReadDR() == -1){ErrorCount_ReadDR_Queue++;}else{ParseDR();}return 1;
}/*** @brief ModbusRTUMaster::CR_Poll* @return 0: nothing to poll 1: something to poll*/
int ModbusRTUMaster::CR_Poll()
{//CR polling is empty.if(WriteQueue_CoilsReg->isEmpty() && ReadQueue_CoilsReg->isEmpty()){return 0;}if (ReadCR() == -1){ErrorCount_ReadCR_Queue++;}else{ParseCR();}//Read and write queue are both not emptyif((!ReadQueue_CoilsReg->isEmpty()) && (!WriteQueue_CoilsReg->isEmpty())){msleep(regRWInterval);}if(WriteCR() == -1){ErrorCount_WriteCR_Queue++;}return 1;
}

modbusmaster.read.cpp

#include "modbusrtumaster.h"void ModbusRTUMaster::RequestReadIR(MBData_FloatArray *mBData_FloatArray_P)
{mutex_RQ_IR.lock();while(ReadQueue_InputReg->count() > MaxCount_ReadIR_Queue){ReadQueue_InputReg->takeFirst();}mBData_FloatArray_P->IsExecuted = 0;ReadQueue_InputReg->append(mBData_FloatArray_P);mutex_RQ_IR.unlock();
}void ModbusRTUMaster::RequestReadHR(MBData_FloatArray *mBData_FloatArray_P)
{mutex_RQ_HR.lock();while(ReadQueue_HoldingReg->count() > MaxCount_ReadHR_Queue){ReadQueue_HoldingReg->takeFirst();}mBData_FloatArray_P->IsExecuted = 0;ReadQueue_HoldingReg->append(mBData_FloatArray_P);mutex_RQ_HR.unlock();
}void ModbusRTUMaster::RequestReadDR(MBData_BitArray *mBData_BitArray_P)
{mutex_RQ_DR.lock();while(ReadQueue_DiscreteReg->count() > MaxCount_ReadDR_Queue){ReadQueue_DiscreteReg->takeFirst();}mBData_BitArray_P->IsExecuted = 0;ReadQueue_DiscreteReg->append(mBData_BitArray_P);mutex_RQ_DR.unlock();
}void ModbusRTUMaster::RequestReadCR(MBData_BitArray *mBData_BitArray_P)
{mutex_RQ_CR.lock();while(ReadQueue_CoilsReg->count() > MaxCount_ReadCR_Queue){ReadQueue_CoilsReg->takeFirst();}mBData_BitArray_P->IsExecuted = 0;ReadQueue_CoilsReg->append(mBData_BitArray_P);mutex_RQ_CR.unlock();
}int ModbusRTUMaster::ReadIR()
{int result = 0;MBData_FloatArray *mbData_FloatArray = nullptr;mutex_RQ_IR.lock();if(!ReadQueue_InputReg->isEmpty()){mbData_FloatArray = ReadQueue_InputReg->takeFirst();result = OperateModbusRegisters(mbData_FloatArray, modbus_read_input_registers);}mutex_RQ_IR.unlock();//Read input registers failed.if(result == -1){QString errorMsg = QString("Read I.R. failed: %1. ").arg(modbus_strerror(errno));QString errorRegInfo = QString("PreAddr: %1, DevAddr: %2, Addr: %3, Count: %4")\.arg(mbData_FloatArray->PreDevAddr).arg(mbData_FloatArray->MBDevAddr)\.arg(mbData_FloatArray->Address).arg(mbData_FloatArray->Count);qDebug() << errorMsg + errorRegInfo;emit Get_IRData_Failed(errorMsg + errorRegInfo);emit lostConnection(errorMsg + errorRegInfo);}return result;
}int ModbusRTUMaster::ReadHR()
{int result = 0;MBData_FloatArray *mbData_FloatArray = nullptr;mutex_RQ_HR.lock();if(!ReadQueue_HoldingReg->isEmpty()){mbData_FloatArray = ReadQueue_HoldingReg->takeFirst();result = OperateModbusRegisters(mbData_FloatArray, modbus_read_registers);}mutex_RQ_HR.unlock();//Read holding registers failed.if(result == -1){QString errorMsg = QString("Read H.R. failed: %1. ").arg(modbus_strerror(errno));QString errorRegInfo = QString("PreAddr: %1, DevAddr: %2, Addr: %3, Count: %4")\.arg(mbData_FloatArray->PreDevAddr).arg(mbData_FloatArray->MBDevAddr)\.arg(mbData_FloatArray->Address).arg(mbData_FloatArray->Count);qDebug() << errorMsg + errorRegInfo;emit Get_HRData_Failed(errorMsg + errorRegInfo);}return result;
}int ModbusRTUMaster::ReadDR()
{int result = 0;MBData_BitArray *mbData_BitArray = nullptr;mutex_RQ_DR.lock();if(!ReadQueue_DiscreteReg->isEmpty()){mbData_BitArray = ReadQueue_DiscreteReg->takeFirst();result = OperateModbusRegisters(mbData_BitArray, modbus_read_input_bits);}mutex_RQ_DR.unlock();//Read discrete registers failed.if(result == -1){QString errorMsg = QString("Read D.R. failed: %1. ").arg(modbus_strerror(errno));QString errorRegInfo = QString("PreAddr: %1, DevAddr: %2, Addr: %3, Count: %4")\.arg(mbData_BitArray->PreDevAddr).arg(mbData_BitArray->MBDevAddr)\.arg(mbData_BitArray->Address).arg(mbData_BitArray->Count);qDebug() << errorMsg + errorRegInfo;emit Get_DRData_Failed(errorMsg + errorRegInfo);}return result;
}int ModbusRTUMaster::ReadCR()
{int result = 0;MBData_BitArray *mbData_BitArray = nullptr;mutex_RQ_CR.lock();if(!ReadQueue_CoilsReg->isEmpty()){mbData_BitArray = ReadQueue_CoilsReg->takeFirst();result = OperateModbusRegisters(mbData_BitArray, modbus_read_bits);}mutex_RQ_CR.unlock();//Read coils registers failed.if(result == -1){QString errorMsg = QString("Read C.R. failed: %1. ").arg(modbus_strerror(errno));QString errorRegInfo = QString("PreAddr: %1, DevAddr: %2, Addr: %3, Count: %4")\.arg(mbData_BitArray->PreDevAddr).arg(mbData_BitArray->MBDevAddr)\.arg(mbData_BitArray->Address).arg(mbData_BitArray->Count);qDebug() << errorMsg + errorRegInfo;emit Get_CRData_Failed(errorMsg + errorRegInfo);}return result;
}/*
Qt4与Qt5的插件开发方式略有差异，此处采用条件编译可以实现版本兼容。
导出Qt插件，第一参数为插件的IID，第二个参数为实现接口的类。
*/
#if QT_VERSION < 0x050000Q_EXPORT_PLUGIN2(QTPLUGIN_IMODBUSRTUMASTER_IID, IModbusRTUMaster)
#endif

modbusmaster.write.cpp

#include "modbusrtumaster.h"void ModbusRTUMaster::RequestWriteHR(uint16_t address, uint16_t count, float *dataArray)
{mutex_WQ_HR.lock();MBData_FloatArray *mBData_FloatArray = new MBData_FloatArray(address, count);for(uint16_t i = 0; i < count; i++){mBData_FloatArray->ValueArray[i].Type_Float = dataArray[i];}while(WriteQueue_HoldingReg->count() > MaxCount_WriteHR_Queue){WriteQueue_HoldingReg->takeFirst();}*mBData_FloatArray->IsExecuted_P = 0;WriteQueue_HoldingReg->append(mBData_FloatArray);mutex_WQ_HR.unlock();
}void ModbusRTUMaster::RequestWriteHR(uint16_t address, float data)
{RequestWriteHR(address, 1, &data);
}void ModbusRTUMaster::RequestWriteHR(MBData_FloatArray *mBData_FloatArray)
{mutex_WQ_HR.lock();while(WriteQueue_HoldingReg->count() > MaxCount_WriteHR_Queue){WriteQueue_HoldingReg->takeFirst();}//mBData_FloatArray->IsExecuted指向mBData_FloatArray->IsExecuted_PmBData_FloatArray->IsExecuted_P = &mBData_FloatArray->IsExecuted;*mBData_FloatArray->IsExecuted_P = 0;WriteQueue_HoldingReg->append(mBData_FloatArray);mutex_WQ_HR.unlock();
}void ModbusRTUMaster::RequestWriteHR(MBData_Float *mBData_Float)
{mutex_WQ_HR.lock();while(WriteQueue_HoldingReg->count() > MaxCount_WriteHR_Queue){WriteQueue_HoldingReg->takeFirst();}MBData_FloatArray *mBData_FloatArray = new MBData_FloatArray(mBData_Float->PreDevAddr, mBData_Float->MBDevAddr, mBData_Float->Address, 1, mBData_Float->RetryTimes);mBData_FloatArray->ValueArray[0].Type_Float = mBData_Float->Value.Type_Float;//将mBData_Float->IsExecuted指向mBData_FloatArray->IsExecuted_PmBData_FloatArray->IsExecuted_P = &mBData_Float->IsExecuted;*mBData_FloatArray->IsExecuted_P = 0;WriteQueue_HoldingReg->append(mBData_FloatArray);mutex_WQ_HR.unlock();
}void ModbusRTUMaster::RequestWriteCR(uint16_t address, uint16_t count, uint8_t *dataArray)
{mutex_WQ_CR.lock();MBData_BitArray *mBData_BitArray = new MBData_BitArray(address, count);for(uint16_t i = 0; i < count; i++){mBData_BitArray->ValueArray[i] = dataArray[i];}while(WriteQueue_CoilsReg->count() > MaxCount_WriteCR_Queue){WriteQueue_CoilsReg->takeFirst();}*mBData_BitArray->IsExecuted_P = 0;WriteQueue_CoilsReg->append(mBData_BitArray);mutex_WQ_CR.unlock();
}void ModbusRTUMaster::RequestWriteCR(uint16_t address, uint8_t data)
{RequestWriteCR(address, 1, &data);
}void ModbusRTUMaster::RequestWriteCR(MBData_BitArray *mBData_BitArray)
{mutex_WQ_CR.lock();while(WriteQueue_CoilsReg->count() > MaxCount_WriteCR_Queue){WriteQueue_CoilsReg->takeFirst();}//mBData_BitArray->IsExecuted指向mBData_BitArray->IsExecuted_PmBData_BitArray->IsExecuted_P = &mBData_BitArray->IsExecuted;*mBData_BitArray->IsExecuted_P = 0;WriteQueue_CoilsReg->append(mBData_BitArray);mutex_WQ_CR.unlock();
}void ModbusRTUMaster::RequestWriteCR(MBData_Bit *mBData_Bit)
{mutex_WQ_CR.lock();MBData_BitArray *mBData_BitArray = new MBData_BitArray(mBData_Bit->PreDevAddr, mBData_Bit->MBDevAddr, mBData_Bit->Address, 1, mBData_Bit->RetryTimes);mBData_BitArray->ValueArray[0] = mBData_Bit->Value;while(WriteQueue_CoilsReg->count() > MaxCount_WriteCR_Queue){WriteQueue_CoilsReg->takeFirst();}//mBData_Bit->IsExecuted指向mBData_BitArray->IsExecuted_PmBData_BitArray->IsExecuted_P = &mBData_Bit->IsExecuted;*mBData_BitArray->IsExecuted_P = 0;WriteQueue_CoilsReg->append(mBData_BitArray);mutex_WQ_CR.unlock();
}int ModbusRTUMaster::WriteHR()
{int result = 0;MBData_FloatArray *mbData_FloatArray = nullptr;mutex_WQ_HR.lock();if(!WriteQueue_HoldingReg->isEmpty()){mbData_FloatArray = WriteQueue_HoldingReg->takeFirst();result = OperateModbusRegisters(mbData_FloatArray, modbus_write_registers);}mutex_WQ_HR.unlock();//Write holding registers failed.if(result == -1){QString errorMsg = QString("Write H.R. failed: %1. ").arg(modbus_strerror(errno));QString errorRegInfo = QString("PreAddr: %1, DevAddr: %2, Addr: %3, Count: %4")\.arg(mbData_FloatArray->PreDevAddr).arg(mbData_FloatArray->MBDevAddr)\.arg(mbData_FloatArray->Address).arg(mbData_FloatArray->Count);qDebug() << errorMsg + errorRegInfo;emit Set_HRData_Failed(errorMsg + errorRegInfo);}return result;
}int ModbusRTUMaster::WriteCR()
{int result = 0;MBData_BitArray *mbData_BitArray = nullptr;mutex_WQ_CR.lock();if(!WriteQueue_CoilsReg->isEmpty()){mbData_BitArray = WriteQueue_CoilsReg->takeFirst();result = OperateModbusRegisters(mbData_BitArray, modbus_write_bits);}mutex_WQ_CR.unlock();//Write coils registers failed.if(result == -1){QString errorMsg = QString("Write C.R. failed: %1. ").arg(modbus_strerror(errno));QString errorRegInfo = QString("PreAddr: %1, DevAddr: %2, Addr: %3, Count: %4")\.arg(mbData_BitArray->PreDevAddr).arg(mbData_BitArray->MBDevAddr)\.arg(mbData_BitArray->Address).arg(mbData_BitArray->Count);qDebug() << errorMsg + errorRegInfo;emit Set_CRData_Failed(errorMsg + errorRegInfo);}return result;
}

libmodbus库源码修改

由于前置通讯地址不属于标准Modbus协议的内容，因此需要修改libmodbus库的源码，增加一个发送任意数据的端口。以libmodbus库V3.1.6版本的源码为例：

modbus.c新增内容

/*** @brief modbus_send_freemsg 使用modbus端口发送任意数据* @param ctx modbus的一个实例* @param msg 数据指针* @param msg_length 数据长度* @return 发送的数据长度*/
int modbus_send_freemsg(modbus_t *ctx, uint8_t *msg, int msg_length)
{return ctx->backend->send(ctx, msg, msg_length);
}

modbus.h新增内容

///开放发送任意数据的API，增强库的可扩展性
MODBUS_API int modbus_send_freemsg(modbus_t *ctx, uint8_t *msg, int msg_length);

使用指南

可以考虑直接将ModbusRTU主机源码添加到项目工程中，也可以单独将将ModbusRTU主机源码编译成插件，再在其他项目中动态加载与调用。由于使用的接口都是一致的，这两种方式调用ModbusRTU主机的流程相同。以下仅介绍基本的操作说明，关于性能监控、故障诊断、信号绑定、GUI数据同步等实际常用的操作，请参考基于Qt/libmodbus框架开发modbusRTU主机模块（二）- 应用场景。

基本操作

实例化主机对象

• 直接添加源码的情况下，modbusMaster即为实例化的对象。

ModbusRTUMaster *modbusMaster = new ModbusRTUMaster();

• 使用Qt插件的情况下，modbusMaster即为实例化的对象。

bool MainWindow::loadModbusRTUMasterPlugin()
{QObject *obj = NULL;QString modbusRTUMasterPluginPath("EWhalesModbusRTUMaster.dll");QPluginLoader pluginLoader(modbusRTUMasterPluginPath);obj = pluginLoader.instance();if(obj != NULL){modbusMaster=qobject_cast(obj);if(modbusMaster){connect(obj,SIGNAL(Get_IRData(QString)),this,SLOT(on_modbusMaster_receiveData(QString)));connect(obj,SIGNAL(lostConnection(QString)),this,SLOT(on_modbusMaster_lostConnection(QString)));qDebug()<GetPluginInfo().name;qDebug()<<"Date:"<GetPluginInfo().date;qDebug()<<"Version:"<GetPluginInfo().version;qDebug()<<"Author:"<GetPluginInfo().author;qDebug()<<"Company:"<GetPluginInfo().company;return true;}}else{qDebug()<

//Set the default address of modbus slave.
modbusMaster->SetSlaveAddr(0x01);
modbusMaster->SetMbMultiSlaveState(0);//Set pre-communication, the order of call functions can't be adjusted!
modbusMaster->SetPreCommAddrWidth(modbus_preAddrBitWidth);
modbusMaster->SetPreCommAddrState(modbus_preAddrEnable);

modbusMaster->SetMasterPollingInterval(100);    //Polling interval 100 ms.
modbusMaster->SetMasterRegRWInterval(100);      //Read and write interval 100 ms.
modbusMaster->SetResponseTimeout(150);          //Set response timeout 150 ms.
modbusMaster->Set_RetryDelayTime(20);           //Set time interval of retry 20 ms.

MBData_FloatArray *MBIR_F1_Read = new MBData_FloatArray(0x0000, 0x01, 999, 4, 3);    //前置网络地址0x0000, 从机地址0x01, 变量地址999, 长度4, Retry times is 3 (including the first request)
MBData_FloatArray *MBHR_F1_Read = new MBData_FloatArray(0x0000, 0x01, 999, 4, 3);
MBData_BitArray *****MBDR_F1_Read = new MBData_BitArray(0x0000, 0x01, 999, 4, 3);
MBData_BitArray *****MBCR_F1_Read = new MBData_BitArray(0x0000, 0x01, 999, 4, 3);modbusMaster->RequestReadIR(MBIR_F1_Read);
modbusMaster->RequestReadDR(MBDR_F1_Read);
modbusMaster->RequestReadHR(MBHR_F1_Read);
modbusMaster->RequestReadCR(MBCR_F1_Read);//wait until isExecuted == 1float data1 = MBHR_F1_Read->ValueArray[0].Type_Float;
float data2 = MBHR_F1_Read->ValueArray[1].Type_Float;
uint8_t data3 = MBCR_F1_Read->ValueArray[0];
uint8_t data4 = MBCR_F1_Read->ValueArray[1];

MBData_Float MBHR_F1_Write(0x0000, 0x01, 999, 100);
MBData_Bit MBCR_F1_Write(0x0000, 0x01, 999, 0);modbusMaster->RequestWriteHR(&MBHR_F1_Write);
modbusMaster->RequestWriteCR(&MBCR_F1_Write);
