通过前面设计好数据源后，就要进行数据集的设计了。

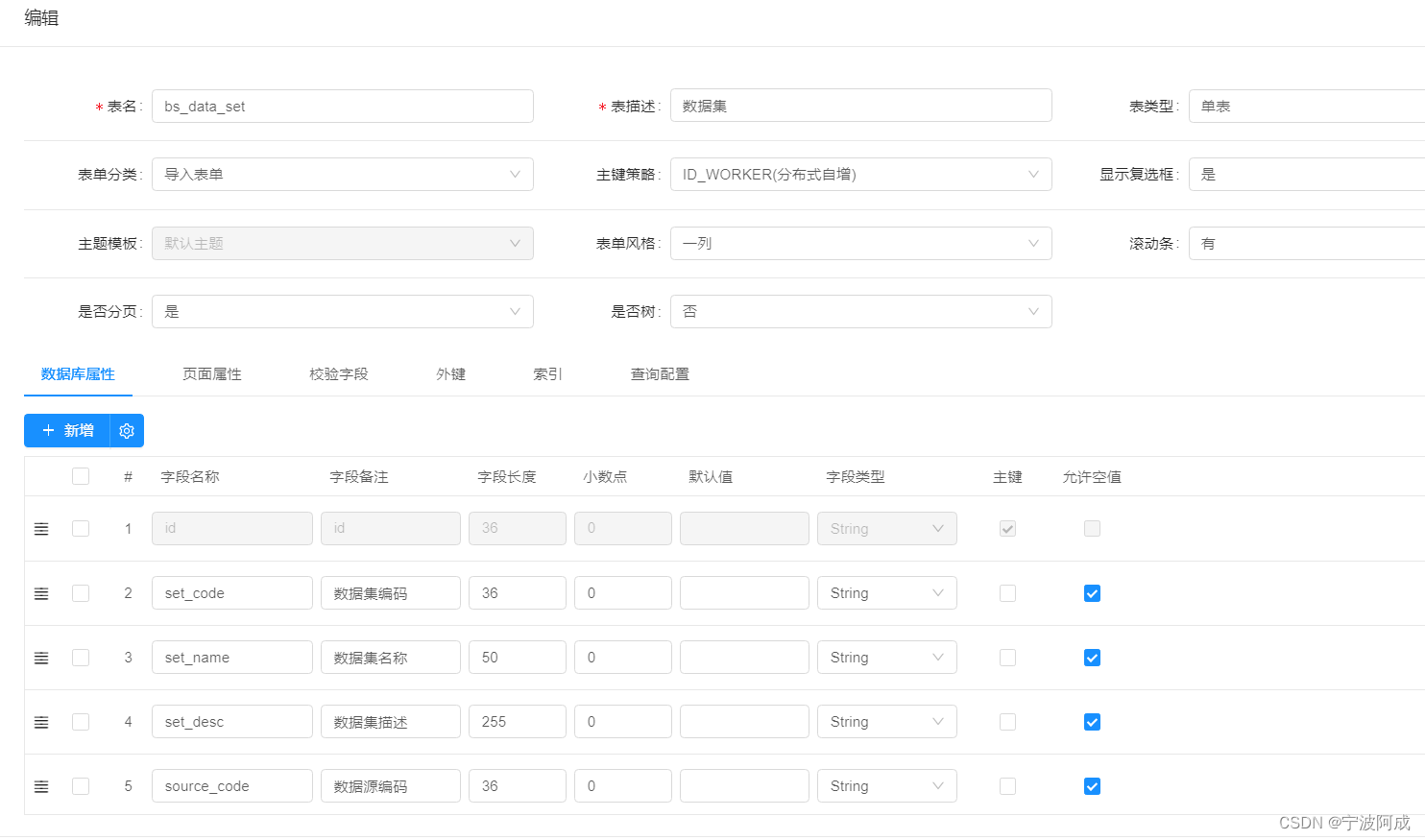

     一、还是在online在线表单进行设计，如下：

 主要是数据源与数据集类型进行关联

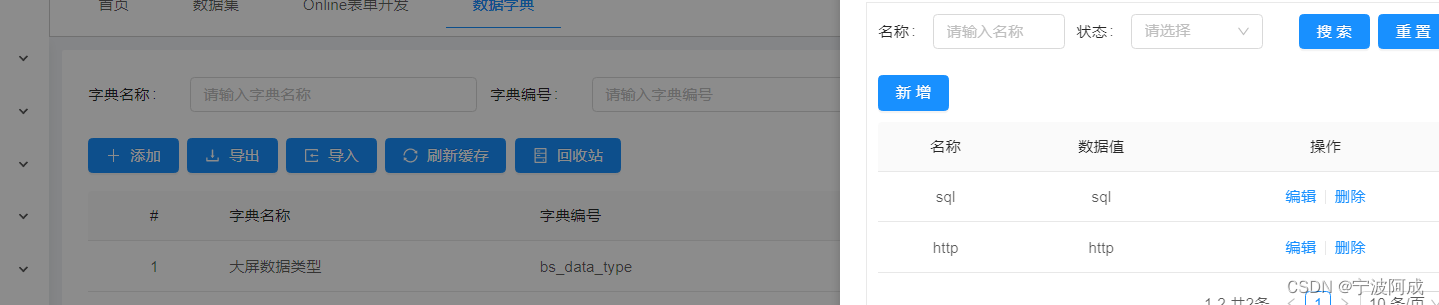

其中类型在字典里进行维护

 二、生成代码后前端的修改

 1、BsDataSetList.vue文件修改

列表文件主要是新增要进行修改如下，

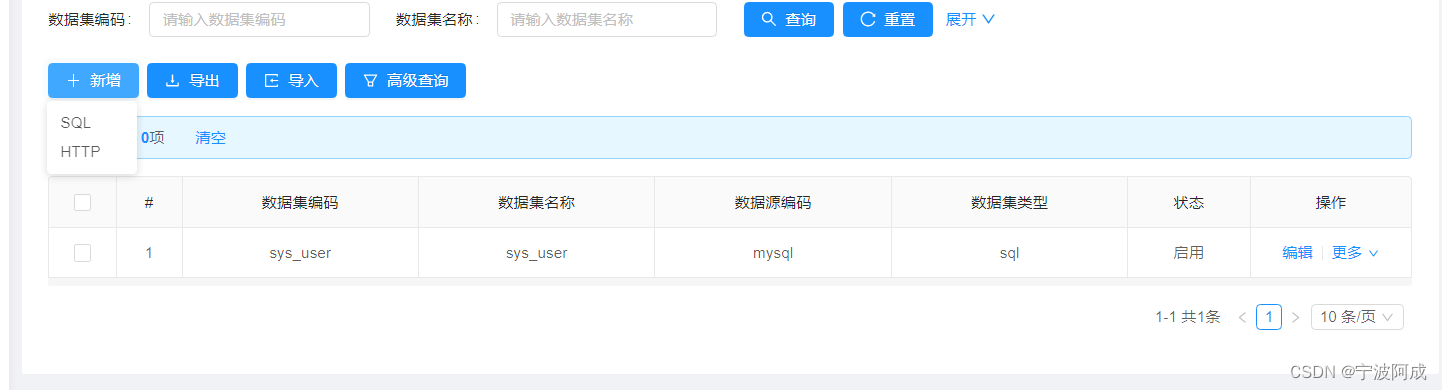

新增SQLHTTP

同时使用NbcioListMixin，所以菜单里的删除需要修改一下，变成下面的传入参数是record，相应的下面NbcioListMixin文件也要做调整

 handleDelete(record)">删除

2、NbcioListMixin修改

增加下面两个方法：

handleAddSQL: function () {//大屏用this.$refs.modalForm.add("sql");this.$refs.modalForm.approve=false;this.$refs.modalForm.title = "新增";this.$refs.modalForm.disableSubmit = false;},handleAddHTTP: function () {//大屏用this.$refs.modalForm.add("http");this.$refs.modalForm.approve=false;this.$refs.modalForm.title = "新增";this.$refs.modalForm.disableSubmit = false;},

3、BsDataSetForm.vue修改

         增加一个测试浏览如下：，当然需要安装vue-json-editor组件与 import vueJsonEditor from "vue-json-editor";

add方法需要修改成

add (type) {this.modelDefault.setType = type;this.edit(this.modelDefault);this.model.setType = type;},

    同时测试浏览的方法如下：

async dataSetTest (tabKey) {//测试预览console.log("tab clicked : " + tabKey);if (this.model.setType == "http") {//针对http数据源console.log("http数据集" + this.httpForm);this.model.dynSentence = JSON.stringify(this.httpForm);}if (tabKey == "3") {const params = {sourceCode: this.model.sourceCode,dynSentence: this.model.dynSentence,dataSetParamDtoList: this.tableData,dataSetTransformDtoList: this.itemFilterList,setType: this.model.setType};const { code, result } = await testTransformSet(params);if (code != "200") return;this.cols = result.data;this.testMassageCode = code;}},onJsonChange(value) {},onJsonSave(value) {},

三、后端代码

   这个先增加上面说的这个测试浏览接口

/*** 测试 数据转换是否正确* @param param* @return*/@PostMapping("/testTransform")public Result testTransform(@Validated @RequestBody DataSetTestTransformParam param) {DataSetDto dto = new DataSetDto();BeanUtils.copyProperties(param, dto);return Result.OK(bsDataSetService.testTransform(dto));}

这个具体的实现代码如下：

package com.nbcio.modules.estar.bs.service.impl;import com.nbcio.modules.estar.bs.constant.JdbcConstants;
import com.nbcio.modules.estar.bs.constant.ResponseCode;
import com.nbcio.modules.estar.bs.dto.DataSetDto;
import com.nbcio.modules.estar.bs.dto.DataSetParamDto;
import com.nbcio.modules.estar.bs.dto.DataSourceDto;
import com.nbcio.modules.estar.bs.dto.OriginalDataDto;
import com.nbcio.modules.estar.bs.entity.BsDataSet;
import com.nbcio.modules.estar.bs.entity.BsDataSource;
import com.nbcio.modules.estar.bs.enums.SetTypeEnum;
import com.nbcio.modules.estar.bs.mapper.BsDataSetMapper;
import com.nbcio.modules.estar.bs.service.IBsDataSetService;
import com.nbcio.modules.estar.bs.service.IBsDataSourceService;
import com.nbcio.modules.estar.bs.service.IDataSetParamService;
import com.nbcio.modules.estar.bs.service.IDataSetTransformService;import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;import org.apache.commons.lang3.StringUtils;
import org.jeecg.common.api.vo.Result;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import com.alibaba.fastjson.JSONObject;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;/*** @Description: bs_data_set* @Author: nbacheng* @Date:   2023-03-20* @Version: V1.0*/
@Service
public class BsDataSetServiceImpl extends ServiceImpl implements IBsDataSetService {@Autowiredprivate IDataSetParamService dataSetParamService;@Autowiredprivate IDataSetTransformService dataSetTransformService;@Autowiredprivate IBsDataSourceService bsDataSourceService;@Overridepublic OriginalDataDto testTransform(DataSetDto dto) {String dynSentence = dto.getDynSentence();OriginalDataDto originalDataDto = new OriginalDataDto();String sourceCode = dto.getSourceCode();//1.获取数据源BsDataSource bsDataSource;if (dto.getSetType().equals(SetTypeEnum.HTTP.getCodeValue())) {//http不需要数据源，兼容已有的逻辑，将http所需要的数据塞进DataSourcebsDataSource = new BsDataSource();bsDataSource.setConfig(dynSentence);bsDataSource.setType(JdbcConstants.HTTP);String body = JSONObject.parseObject(dynSentence).getString("body");if (StringUtils.isNotBlank(body)) {dynSentence = body;}else {dynSentence = "{}";}}else {QueryWrapper queryWrapper = new QueryWrapper();queryWrapper.eq("code", sourceCode);bsDataSource  = bsDataSourceService.getOne(queryWrapper);}//3.参数替换//3.1参数校验boolean verification = dataSetParamService.verification(dto.getDataSetParamDtoList(), null);if (!verification) {Result.error(ResponseCode.RULE_FIELDS_CHECK_ERROR);return originalDataDto;}dynSentence = dataSetParamService.transform(dto.getDataSetParamDtoList(), dynSentence);//4.获取数据DataSourceDto dataSourceDto = new DataSourceDto();BeanUtils.copyProperties(bsDataSource, dataSourceDto);dataSourceDto.setDynSentence(dynSentence);dataSourceDto.setContextData(setContextData(dto.getDataSetParamDtoList()));//获取total,判断DataSetParamDtoList中是否传入分页参数Map collect = dto.getDataSetParamDtoList().stream().collect(Collectors.toMap(DataSetParamDto::getParamName, DataSetParamDto::getSampleItem));if (collect.containsKey("pageNumber") && collect.containsKey("pageSize")) {dto.setContextData(collect);long total = bsDataSourceService.total(dataSourceDto, dto);originalDataDto.setTotal(total);}List data = bsDataSourceService.execute(dataSourceDto);//5.数据转换List transform = (List)dataSetTransformService.transform(dto.getDataSetTransformDtoList(), data).getResult();originalDataDto.setData(transform);return originalDataDto;}/*** dataSetParamDtoList转map* @param dataSetParamDtoList* @return*/public Map setContextData(List dataSetParamDtoList){Map map = new HashMap<>();if (null != dataSetParamDtoList && dataSetParamDtoList.size() > 0) {dataSetParamDtoList.forEach(dataSetParamDto -> map.put(dataSetParamDto.getParamName(), dataSetParamDto.getSampleItem()));}return map;}}

四、效果如下：

以后界面还是美化与调整。
