一、STM32中断概述

二、外部中断控制器EXTI

三、按键中断

四、串口中断

一、STM32中断概述

       在处理器中，中断是一个过程，即CPU在正常执行程序的过程中，遇到外部/内部的紧急事件需要处理，暂时中止当前程序的执行，转而去为处理紧急的事件，待处理完毕后再返回被打断的程序处继续往下执行。中断在计算机多任务处理，尤其是即时系统中尤为重要。比如uCOS，FreeRTOS等。

        中断能提高CPU的效率，同时能对突发事件做出实时处理。实现程序的并行化，实现嵌入式系统进程之间的切换

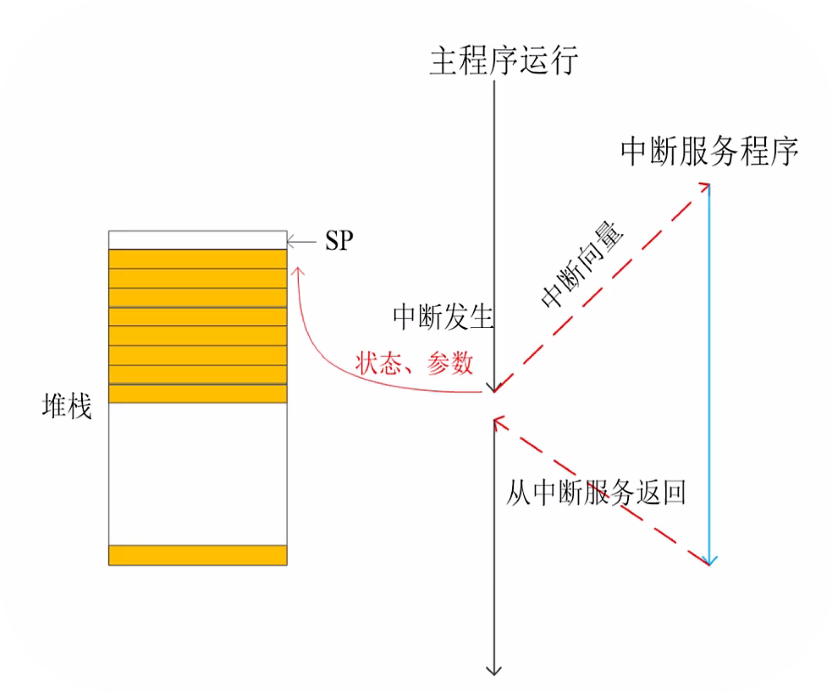

 进入中断

处理器自动保存现场到堆栈里 {PC, xPSR, R0-R3, R12, LR} 一旦入栈结束，ISR便可开始执行 晚到的中断会重新取ISR地址，但无需再次保存现场

退出中断

中断前的现场被自动从堆栈中恢复 一旦出栈完成，继续执行被中断打断的指令 出栈的过程也可被打断，使得随时可以响应新的中断， 而不再进行 现场保存

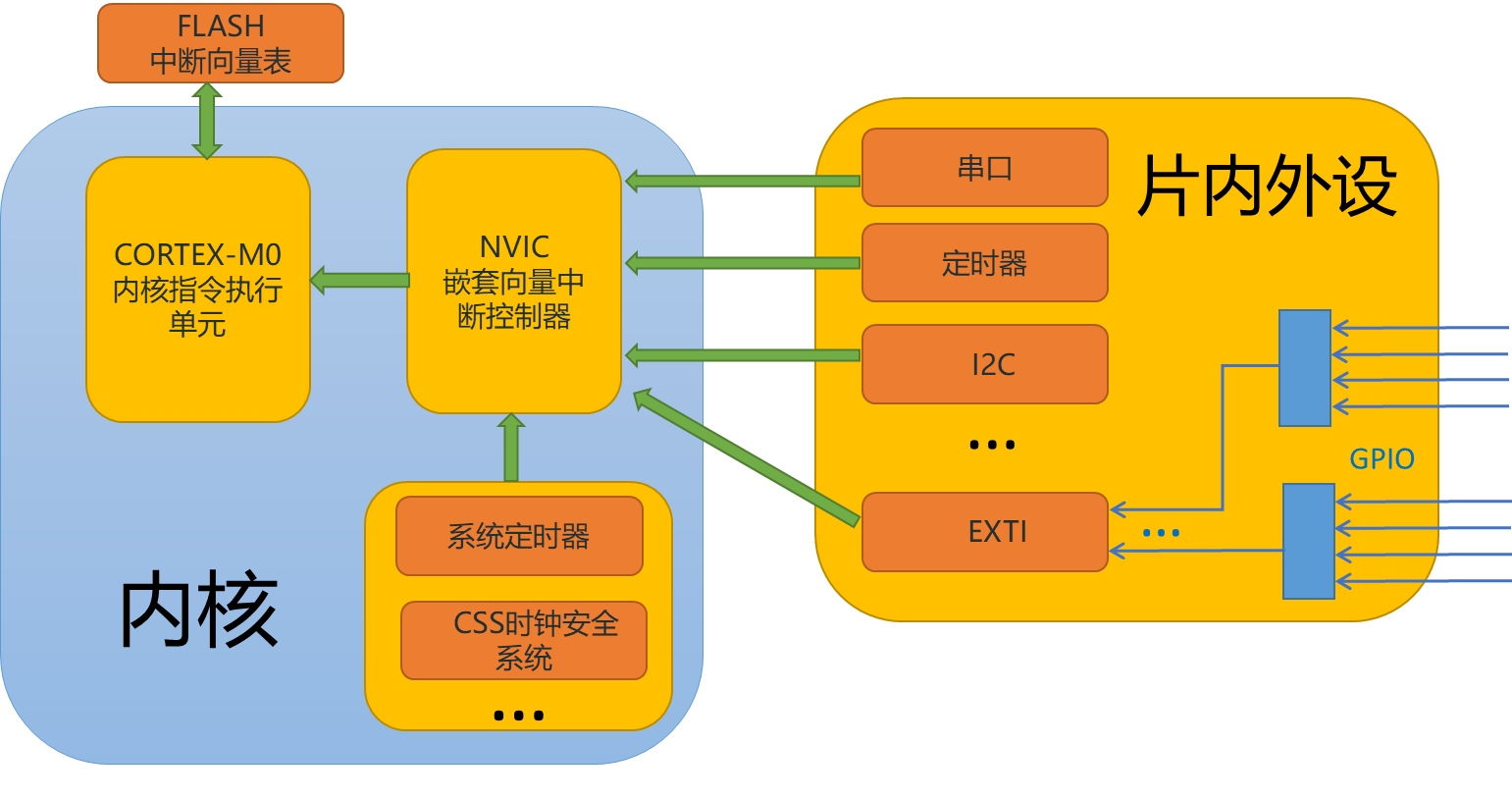

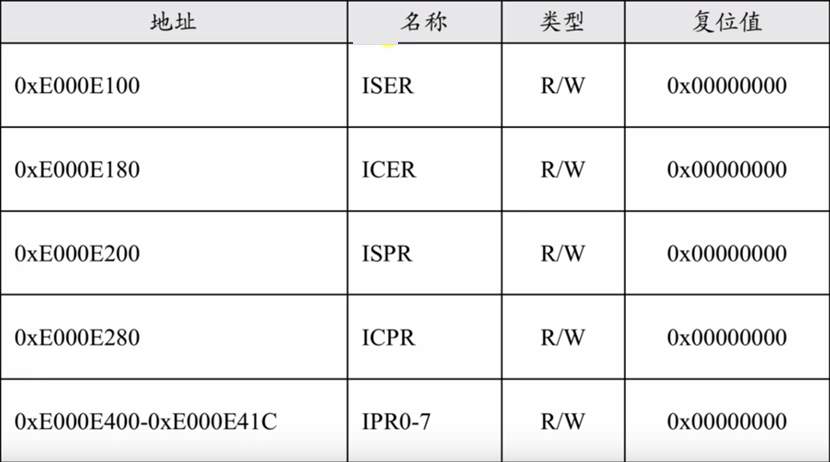

 NVIC的主要功能

n  Cortex-M0处理器中，每一个外部中断都可以被使能或者禁止，并且可以被设置为挂起状态或者清除状态。处理器的中断可以电平的形式的，也可以是脉冲形式的，这样中断控制器就可以处理任何中断源

      Cortex-M0内核可以处理15个内部异常，和32个外部中断。

      STM32F051实际上只使用了6个内部异常和28个外部中断。

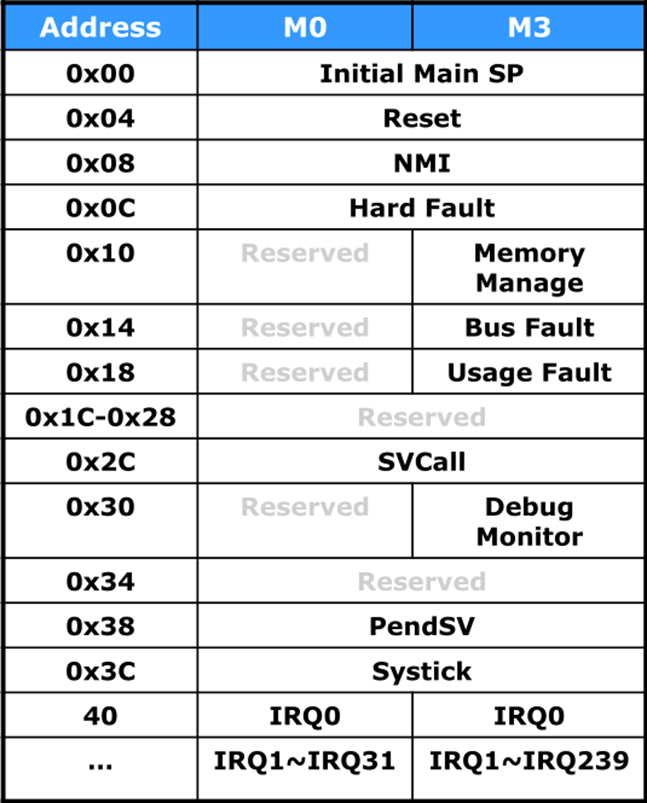

     当异常或中断发生时，处理器会把PC设置为一个特定地址，这一地址就称为异常向量。每一类异常源都对应一个特定的入口地址，这些地址按照优先级排列以后就组成一张异常向量表。

向量化处理中断的好处

   统的处理方式需要软件去完成。采用向量表处理异常，M0处理器会从存储器的向量表中，自动定位异常的程序入口。从发生异常到异常的处理中间的时间被缩减。

注：中断和异常的区别：

       中断是微处理器外部发送的，通过中断通道送入处理器内部，一般是硬件引起的，比如串口接收中断，而异常通常是微处理器内部发生的，大多是软件引起的，比如除法出错异常，特权调用异常等待。不管是中断还是异常，微处理器通常都有相应的中断/异常服务程序

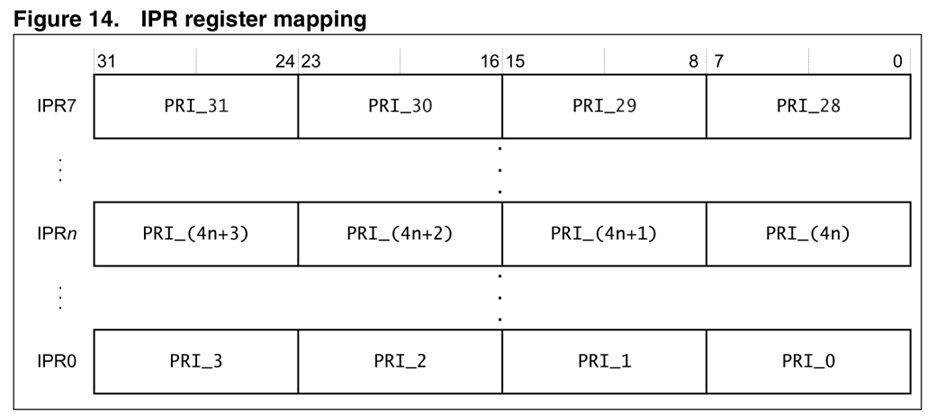

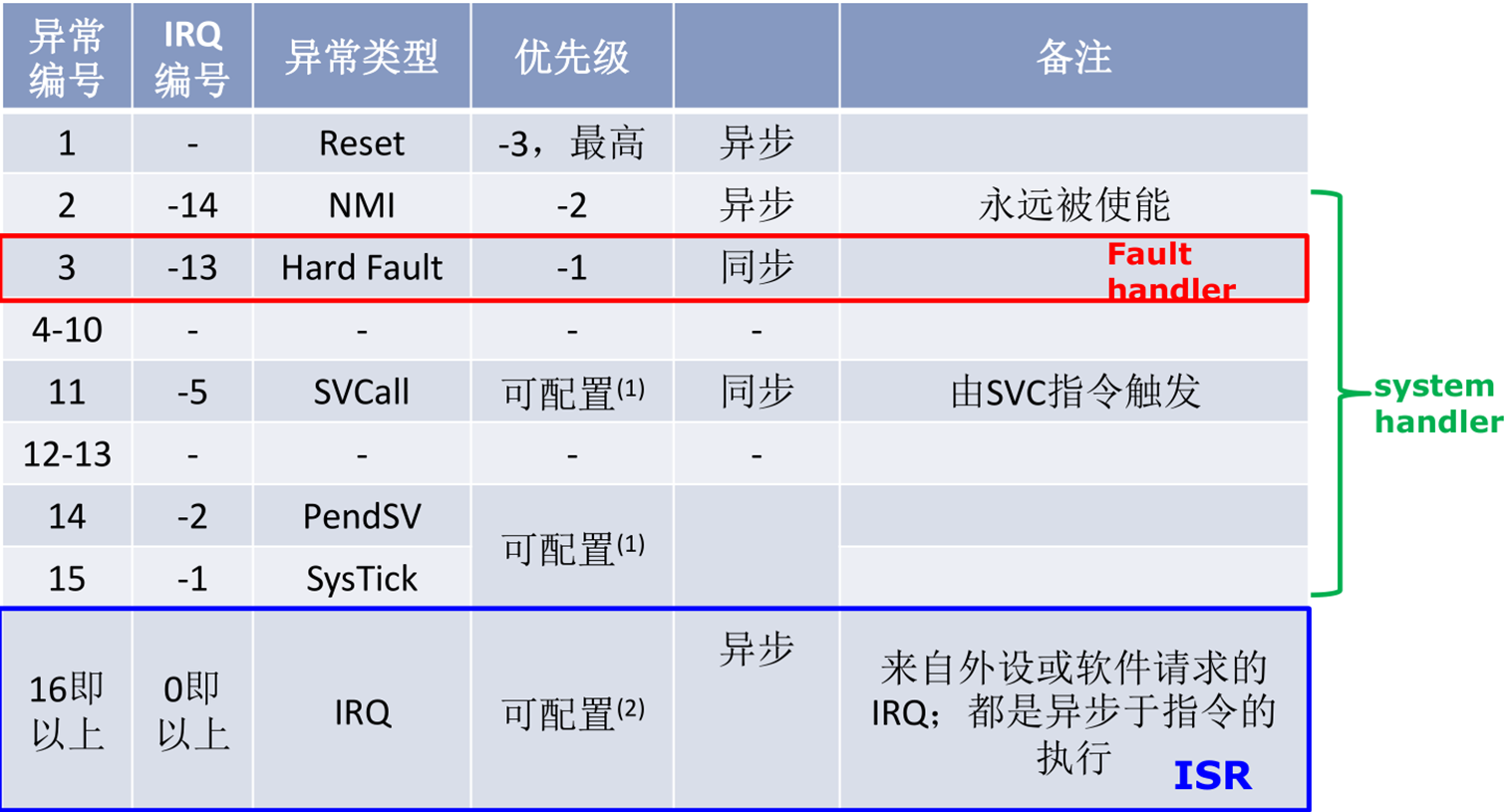

Ø 3个固定的优先级，都是负值，不能改变 Ø 四个可编程优先级，用两个bit位表示，00，01，10，11 Ø 优先级越小优先级越高

注：不同优先级的中断同时发生，优先处理优先级编号较小的那个

同样优先级的中断同时发生，中断向量号较小的那个优先响应

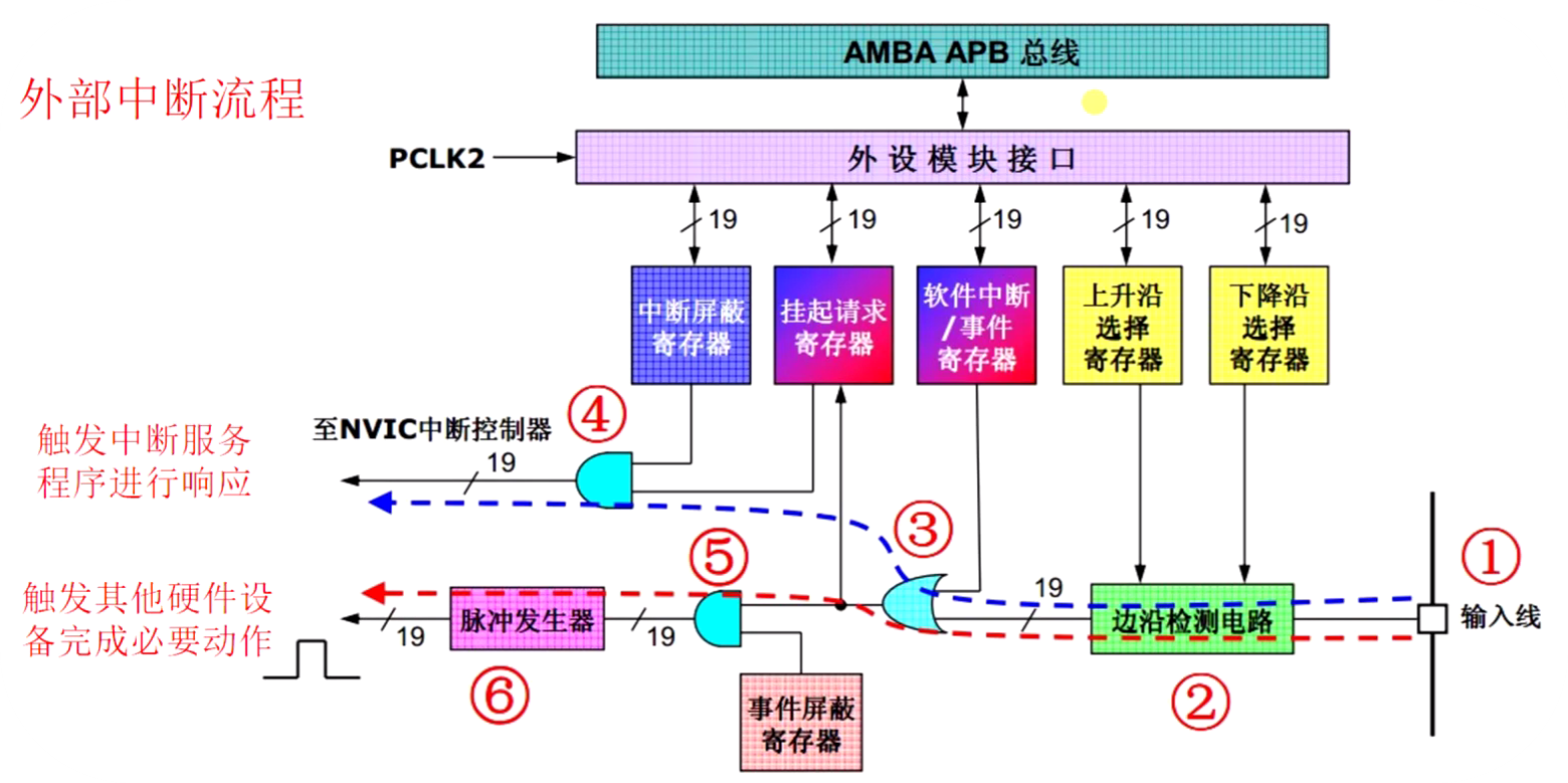

二、外部中断控制器EXTI

该器件具有一组配置寄存器。系统配置控制器的主要用途如下：

● 在部分 IO 口上启用或禁用 I2C 超快模式 (Fast Mode Plus) 。

● 重映射部分从 TIM16 和 TIM17 ， USART1 和 ADC 的 DMA 触发源到其它

   不同的 DMA 通道上。

● 重映射存储器到代码起始区域。

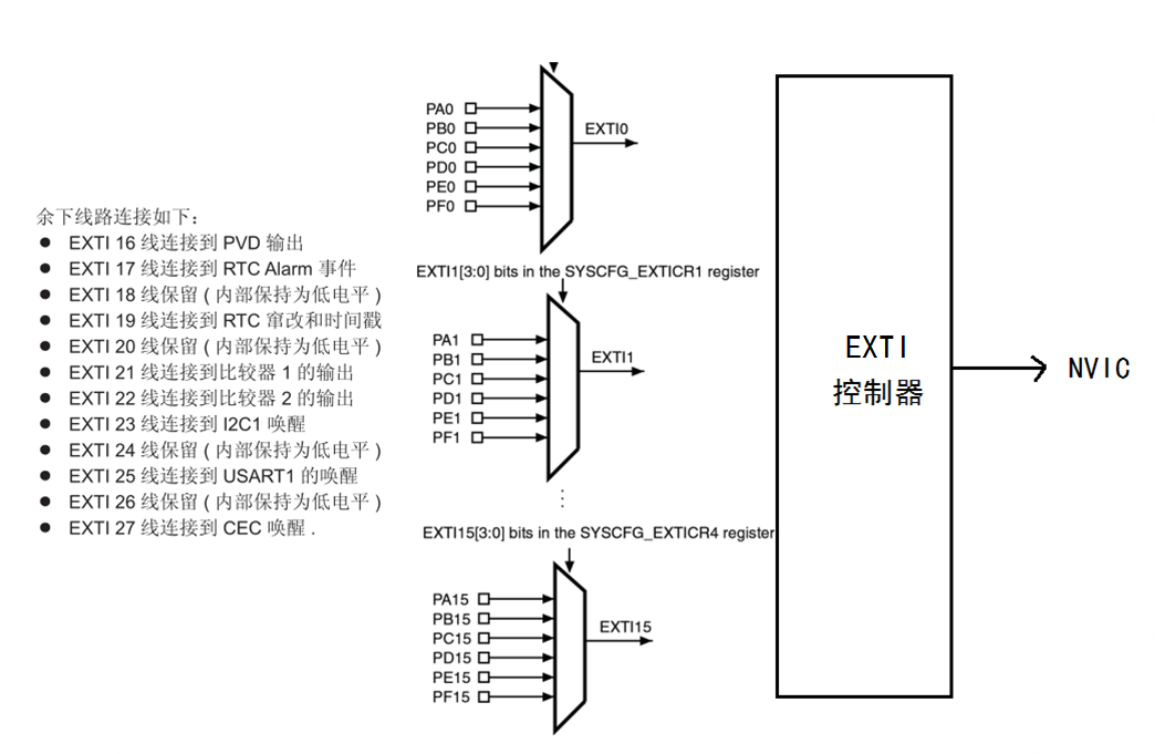

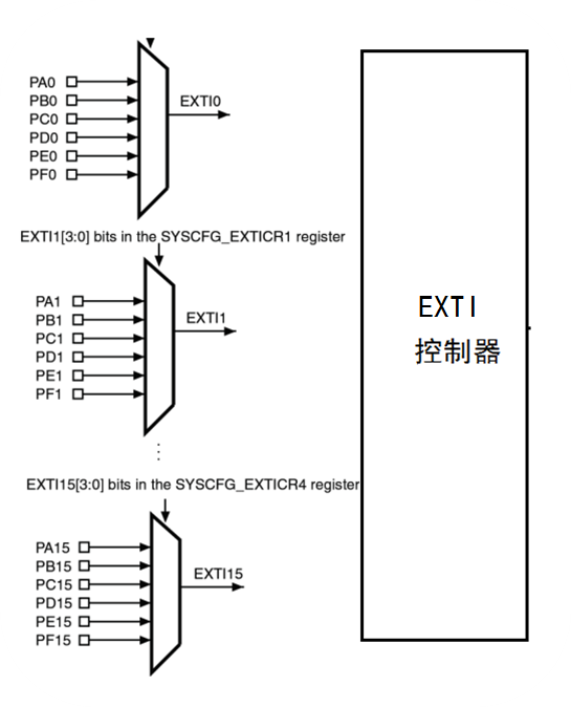

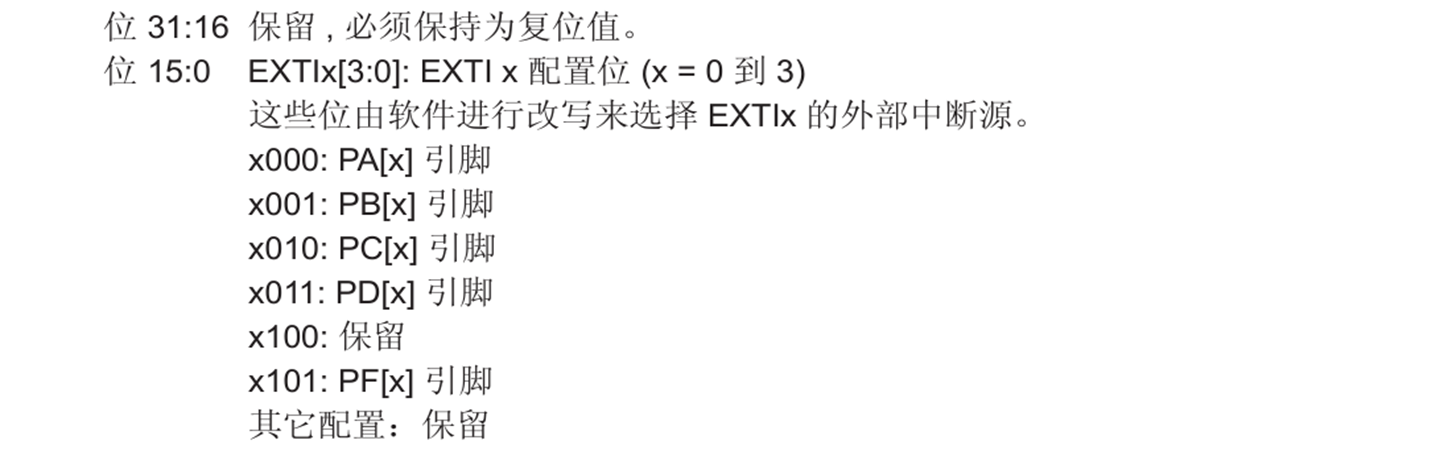

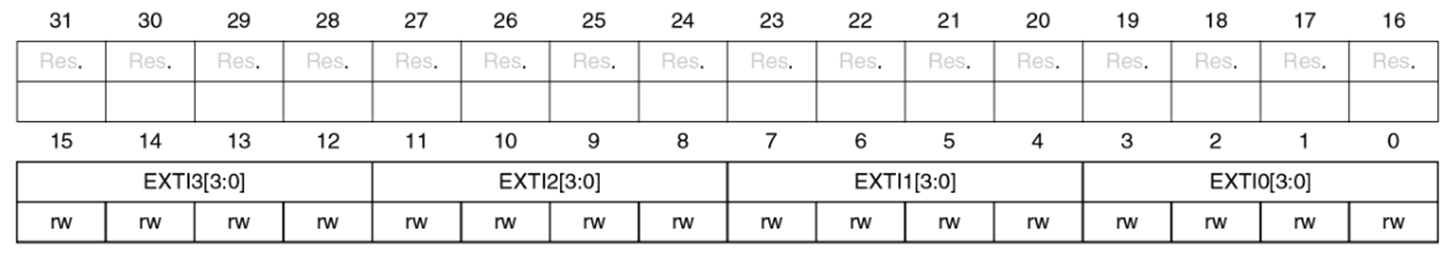

● 管理连接到 GPIO 口的外部中断。

● 管理系统的可靠性特性。

  系统配置控制器 (SYSCFG)

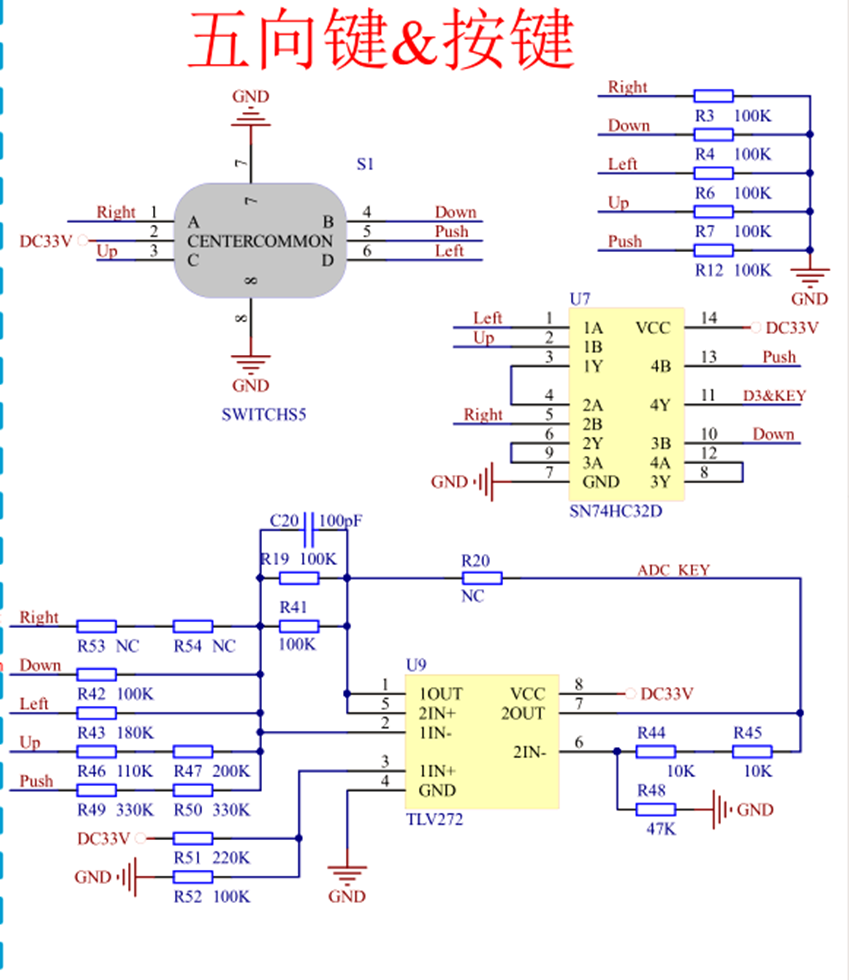

三、按键中断

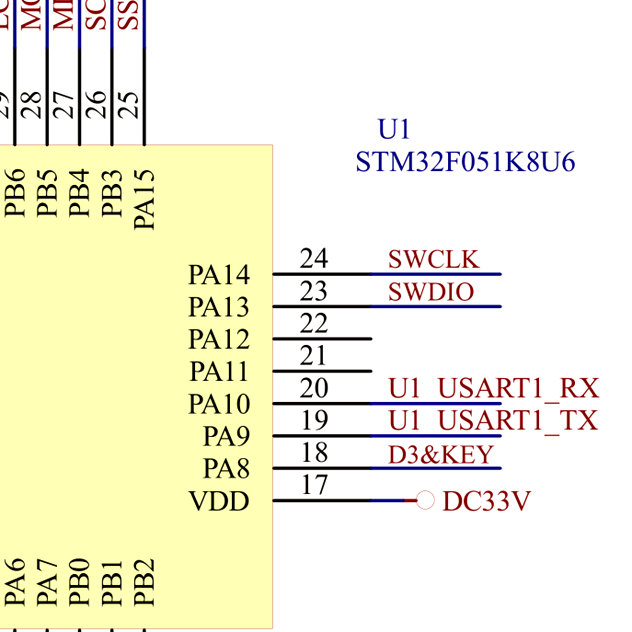

Ø 1、使能相应的时钟 Ø2、配置GPIO管脚为中断功能 Ø3、设置中断优先级 Ø4、使能相应的中断 Ø5、实现中断服务程序

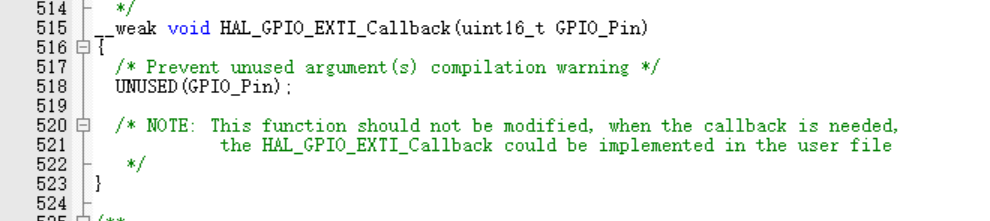

__weak表明他是一个若函数可以重写

/* USER CODE BEGIN 2 */
void HAL_GPIO_EXTI_Callback(uint16_t GPIO_Pin)
{if(GPIO_Pin == GPIO_PIN_8){HAL_UART_Transmit(&huart1, "key int\n", 8, 100);}
}

 这是一个处理中断的回调函数，在里面判断一下是不是GPIO8，然后进行处理

中断优先级和触发方式都可以图形化配置

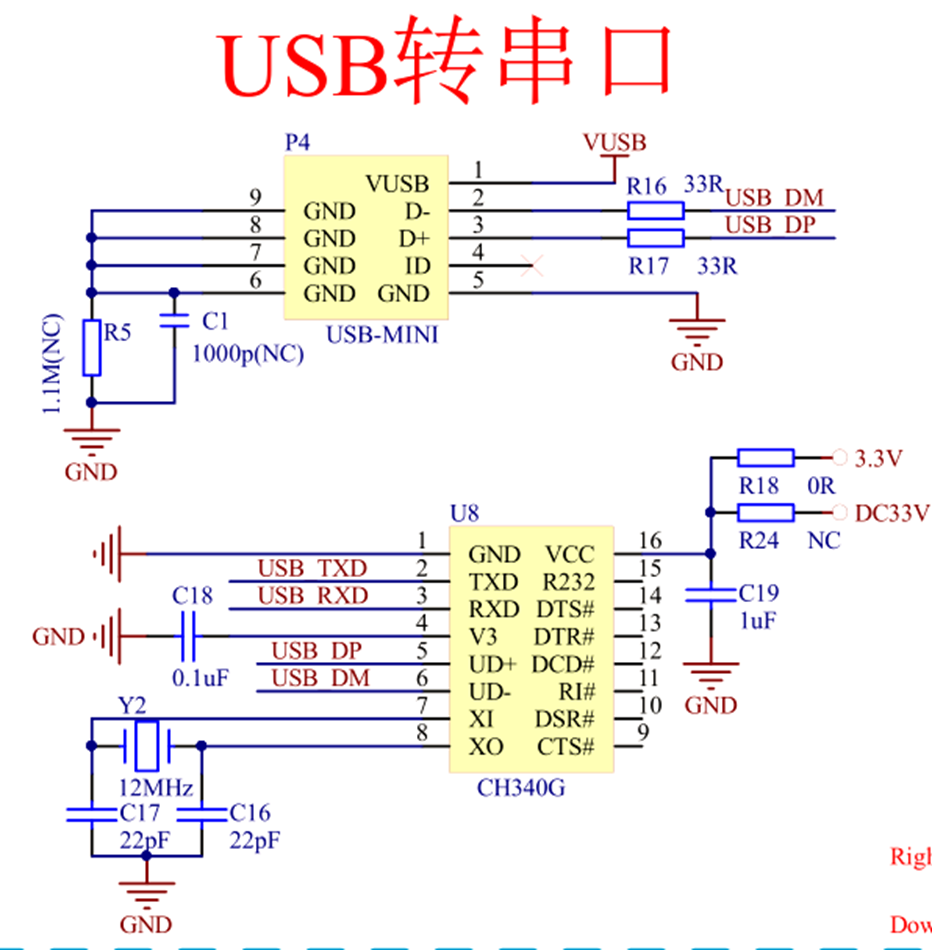

四、串口中断

void HAL_UART_TxCpltCallback(UART_HandleTypeDef *huart)
{if(huart->Instance == USART1){printf("uart tx end\n");}
}extern uint8_t RX[10] ;
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{if(huart->Instance == USART1){printf("REV : %x  %x\n",RX[0],RX[1]);HAL_UART_Receive_IT(&huart1, RX, 2);}
}
