部署前准备

第一步：

创建seata-server需要的表,有现成的阿里云RDS，就直接在RDS上创建数据库了，方便后面统一管理。
具体的 SQL 参考script/server/db ，这里使用的是 MySQL 的脚本，数据库名称为 seata，还需要创建undo_log 表， 可以参考script/client/at/db/

第二步：

• 修改seata-server配置

将以下配置保存为config.txt

service.vgroupMapping.my_test_tx_group=default
store.mode=db
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.jdbc.Driver
store.db.url=jdbc:mysql://xxx.mysql.rds.aliyuncs.com/seata?useUnicode=true
store.db.user=数据库的用户
store.db.password=数据库的密码

• 创建nacos目录，将nacos-config.sh存放到nacos目录，层级结构如上，执行shell脚本，将配置导入Nacos配置中心，具体添加方法可以参考script/config-center

• 执行shell

sh ./nacos/nacos-config.sh -h xx.xx.xx.xx -p 8848 -g SEATA_GROUP -u username -w password

参数说明:
-h: Nacos主机地址，默认是localhost
-p: Nacos主机端口，默认是8848
-g: 配置分组, the default value is 'SEATA_GROUP'.
-t: 租户信息, 与Nacos的 "命名空间ID" 字段相对应, the default value is ''.
-u: Nacos用户名, the default value is ''.
-w: Nacos密码, the default value is ''.

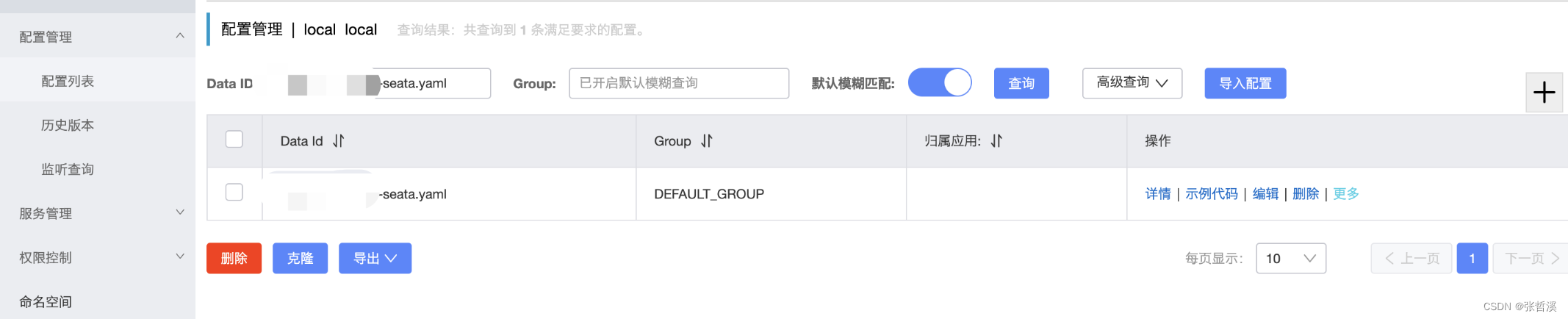

由于执行上面的shell脚本这种方式在nacos会生成一堆配置信息，看着比较乱，修改seata-server这步可以换成在nacos的配置管理-配置列表里导入配置

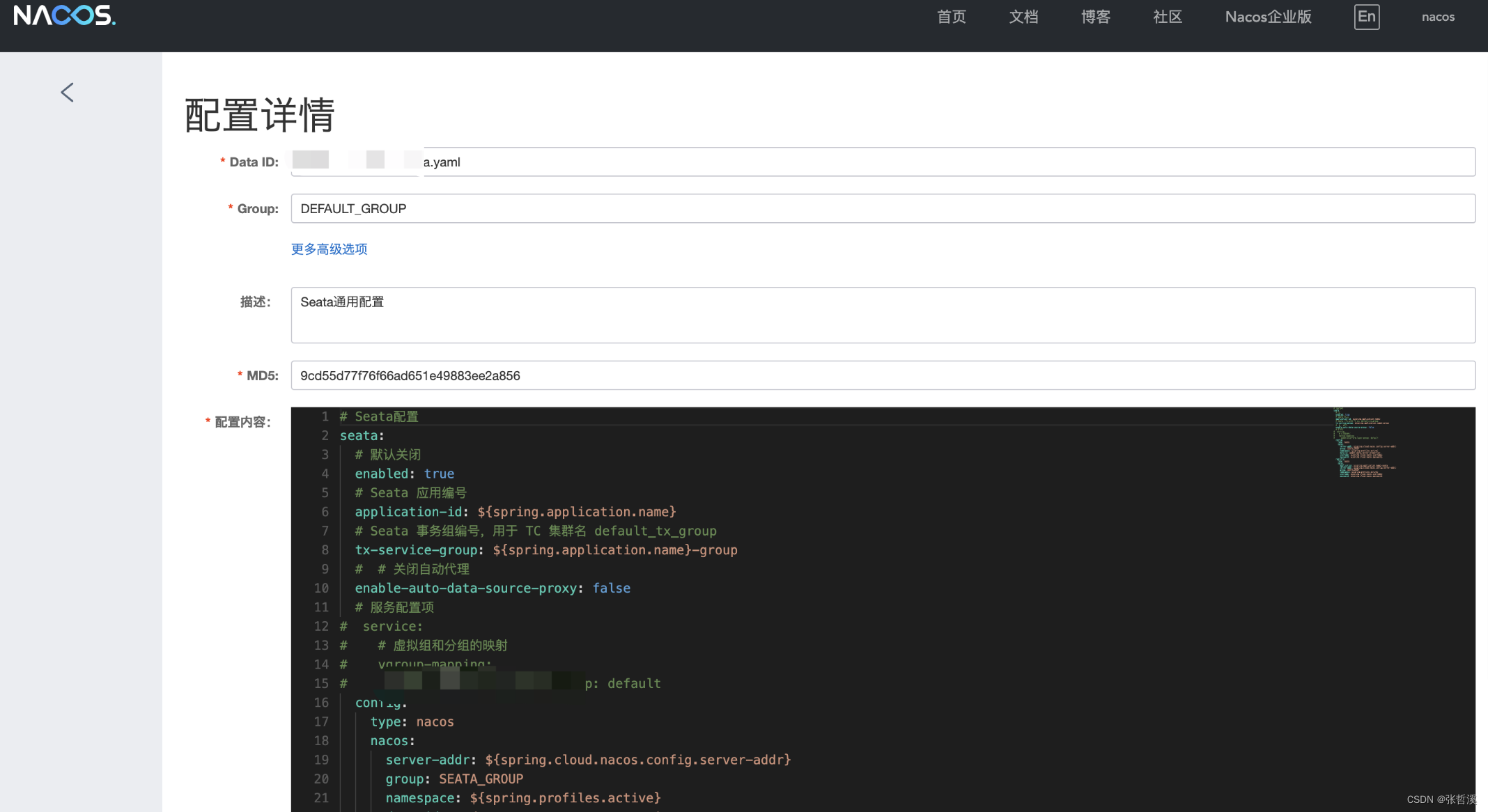

Data ID:xx-seata.yaml
Group: DEFAULT_GROUP
配置内容：

# Seata配置
seata:# 默认关闭enabled: true# Seata 应用编号application-id: ${spring.application.name}# Seata 事务组编号，用于 TC 集群名 default_tx_grouptx-service-group: ${spring.application.name}-group#  # 关闭自动代理enable-auto-data-source-proxy: false# 服务配置项
#  service:
#    # 虚拟组和分组的映射
#    vgroup-mapping:
#      test-platform-layer-group: defaultconfig:type: nacosnacos:server-addr: ${spring.cloud.nacos.config.server-addr}group: SEATA_GROUPnamespace: ${spring.profiles.active}data-id: xxx-seata-server.propertiesusername: ${spring.cloud.nacos.username}password: ${spring.cloud.nacos.password}registry:type: nacosnacos:application: ${spring.application.name}-seataserver-addr: ${spring.cloud.nacos.config.server-addr}group: SEATA_GROUPnamespace: ${spring.profiles.active}username: ${spring.cloud.nacos.username}password: ${spring.cloud.nacos.password}

部署 seata-server 到 Kubernetes

由于新版本里启动配置文件把registry.conf和file.conf去掉了，现在新版本默认的配置文件只用到了application.yml文件，所以需要把application.yml文件挂载到seata-server 服务里的/seata-server/resources/目录下，替换掉服务默认的application.yml文件。
需要将application.yml从宿主机挂载到pod内，部署的全部yaml文件如下：

apiVersion: v1
kind: Service
metadata:name: seata-ha-servernamespace: defaultlabels:app.kubernetes.io/name: seata-ha-server
spec:type: NodePortports:- port: 8091protocol: TCPtargetPort: 8091name: httpselector:app.kubernetes.io/name: seata-ha-server---
apiVersion: apps/v1
kind: StatefulSet
metadata:name: seata-ha-servernamespace: defaultlabels:app.kubernetes.io/name: seata-ha-server
spec:serviceName: seata-ha-serverreplicas: 3selector:matchLabels:app.kubernetes.io/name: seata-ha-servertemplate:metadata:labels:app.kubernetes.io/name: seata-ha-serverspec:nodeSelector: app: seatacontainers:- name: seata-ha-serverimage: seataio/seata-server:1.5.2imagePullPolicy: IfNotPresentvolumeMounts: - mountPath: /seata-server/resources/application.ymlname: seata-ha-server-configports:- name: httpcontainerPort: 8091hostPort: 8091protocol: TCPvolumes:- name: seata-ha-server-confighostPath:path: /root/seata/application.ymltype: File

kubectl create -f seata-server.yaml

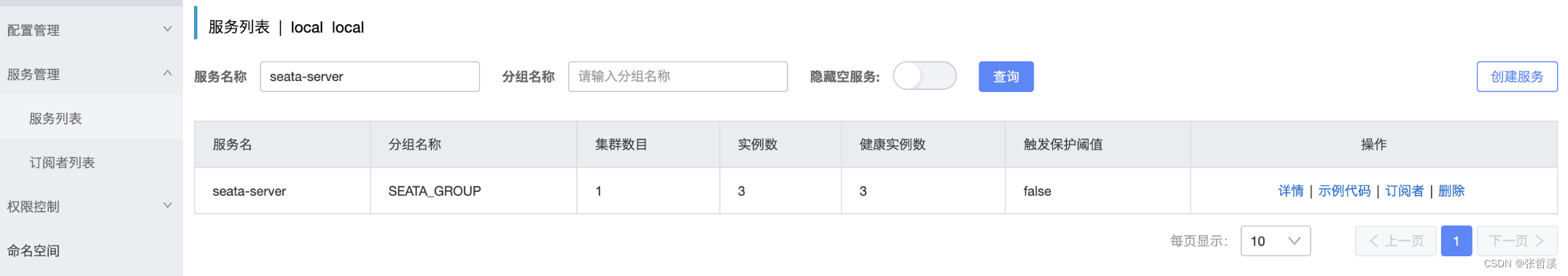

部署完以后，seata-server服务会注册到nacos上
