5.5 输出算子

5.5.1 概述

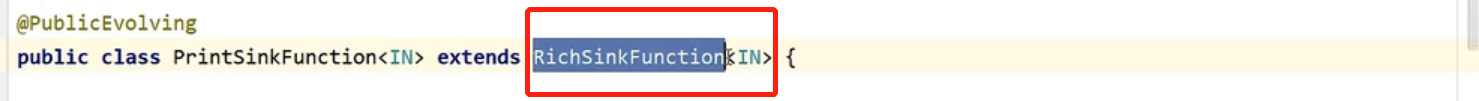

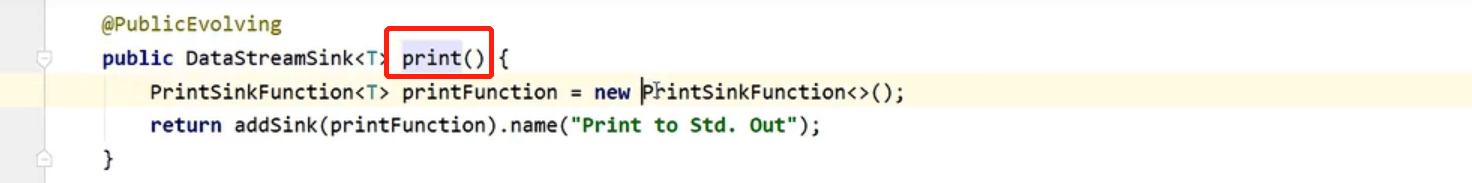

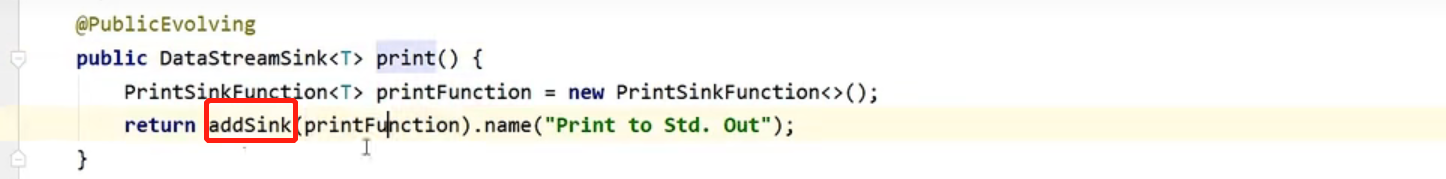

1. print也是一种输出类PrintSinkFunction


创建了一个PrintSinkFunction操作，然后调用addSink方法的作为传入参数

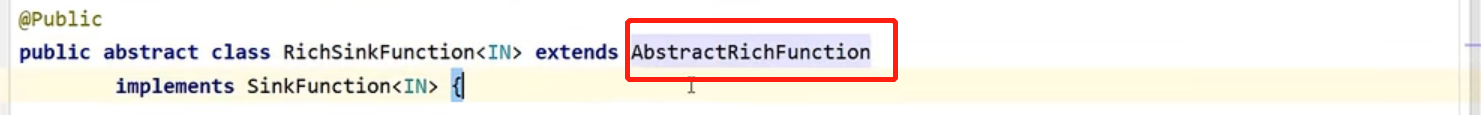

PrintSinkFunction这个类继承自RichSinkFunction富函数类

2. RichSourceFunction类

• 继承了AbstractRichFunction富函数类

因此就可以调用富函数类的声明周期方法，例如open，close，以及获取运行时上下文，运行环境，定义状态等等

• RichSourceFunction类又实现了SinkFunction这个接口，所以本质上也是SinkFunction

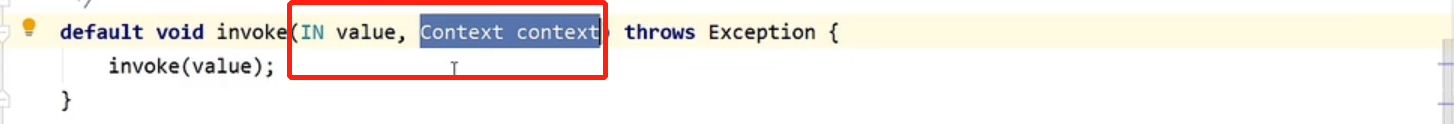

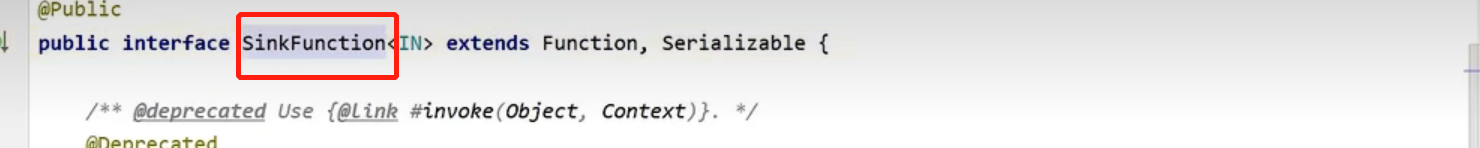

• SinkFunction接口的抽象方法有invoke，传入是value，以及当前的上下文

3. 如果需要自定义输出算子


可以调用DataStream的addSink方法

然后传入自己实现的SinkFunction

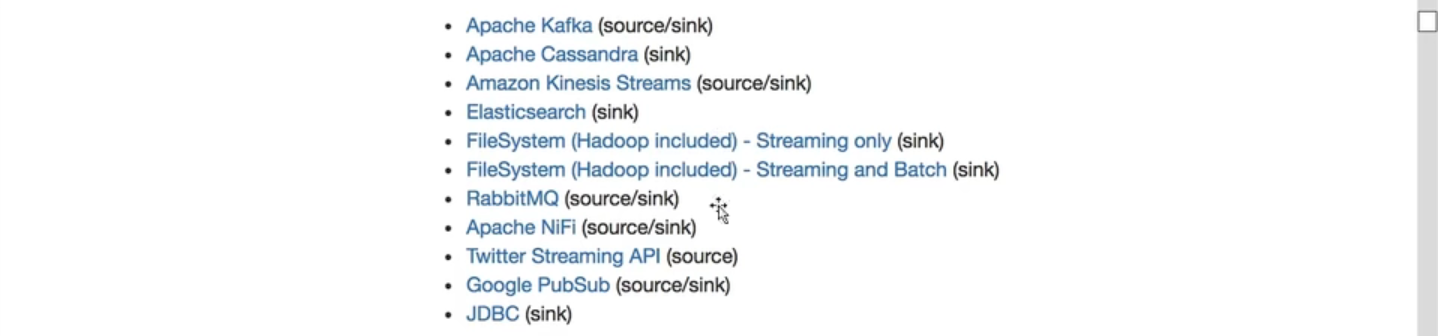

4. flink提供的第三方系统连接器

5.5.2 输出到文件

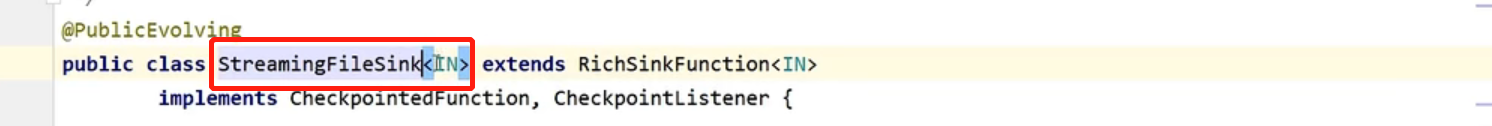

1. StreamFileSink流失文件输出类

• 来源

继承RichSinkFunction类，并实现CheckpointedFunction，CheckpointListener(检查点)

• 底层

底层将数据写入bucket(桶)，桶里面分大小存储分区文件，实现了分布式存储

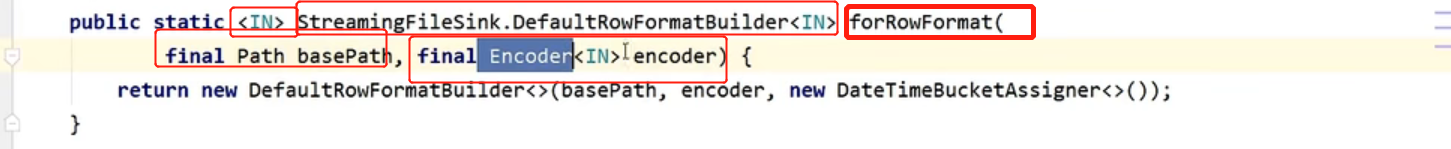

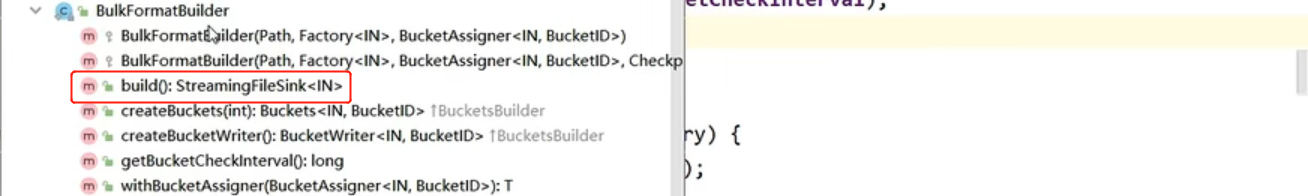

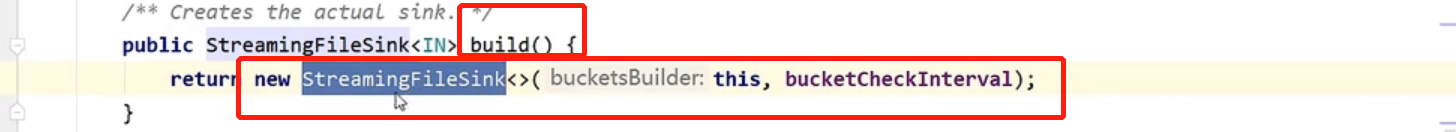

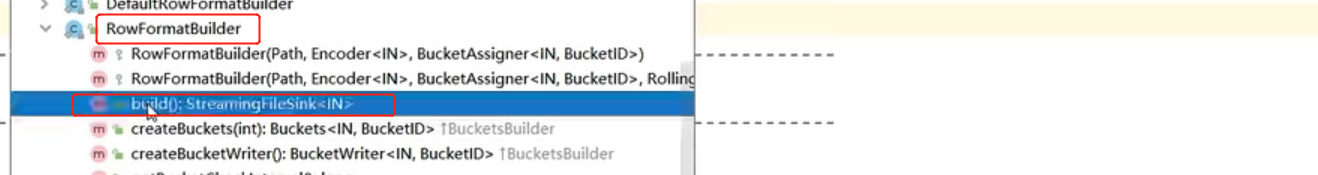

• 创建实例

使用Builder构建器构建

)

RowFormatBuilder是行编码

BulkFormatBuilder是列存储编码格式

2. 代码

public class SinkToFileTest {public static void main(String[] args) throws Exception{StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();env.setParallelism(4);DataStreamSource stream = env.fromElements(new Event("Mary", "./home", 1000L),new Event("Bob", "./cart", 2000L),new Event("Alice", "./prod?id=100", 3000L),new Event("Bob", "./prod?id=1", 3300L),new Event("Alice", "./prod?id=200", 3000L),new Event("Bob", "./home", 3500L),new Event("Bob", "./prod?id=2", 3800L),new Event("Bob", "./prod?id=3", 4200L));//2.为了得到并传入SinkFunction，需要构建StreamingFileSink的一个对象//调用forRowFormat方法或者forBulkformat方法得到一个DefaultRowFormatBuilder//  其中forBulkformat方法前面还有类型参数，以及传参要求一个目录名称，一个编码器//写入文件需要序列化，需要定义序列化方法并进行编码转换，当成Stream写入文件//然后再使用builder创建实例StreamingFileSink streamingFileSink = StreamingFileSink.forRowFormat(new Path("./output"),new SimpleStringEncoder<>("UTF-8")).withRollingPolicy(//指定滚动策略，根据事件或者文件大小新产生文件归档保存DefaultRollingPolicy.builder()//使用builder构建实例.withMaxPartSize(1024 * 1024 * 1024).withRolloverInterval(TimeUnit.MINUTES.toMinutes(15))//事件间隔毫秒数.withInactivityInterval(TimeUnit.MINUTES.toMinutes(15))//当前不活跃的间隔事件，隔多长事件没有数据到来.build()).build();//1.写入文件调用addSink()方法，并传入SinkFunctionstream.map(data -> data.toString())//把Event类型转换成String.addSink(streamingFileSink);env.execute();}
}

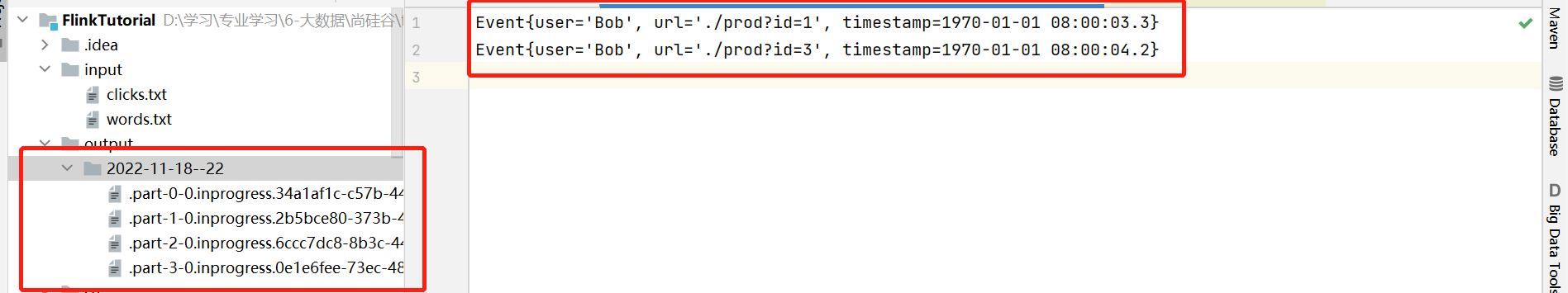

• 结果

5.5.3 输出到kafka

1. 代码

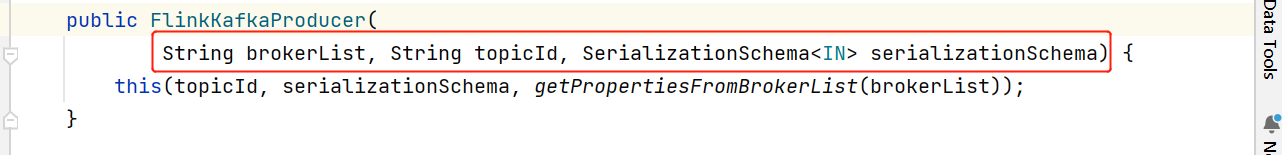

public class SinkToKafka {public static void main(String[] args) throws Exception{StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();env.setParallelism(1);//1.从kafka中读取数据Properties properties = new Properties();properties.setProperty("bootstrap.servers","hadoop2:9092");properties.setProperty("group.id", "consumer-group");DataStreamSource kafkaStream = env.addSource(new FlinkKafkaConsumer("clicks", new SimpleStringSchema(), properties));//2.用flink进行简单的etl处理转换SingleOutputStreamOperator result = kafkaStream.map(new MapFunction() {@Overridepublic String map(String value) throws Exception {String[] fields = value.split(",");return new Event(fields[0].trim(), fields[1].trim(), Long.valueOf(fields[2].trim())).toString();}});//3.结果数据写入kafka//FlinkKafkaProducer传参borckList，topicid,序列化result.addSink(new FlinkKafkaProducer("hadoop2:9092","events",new SimpleStringSchema()));env.execute();}
}

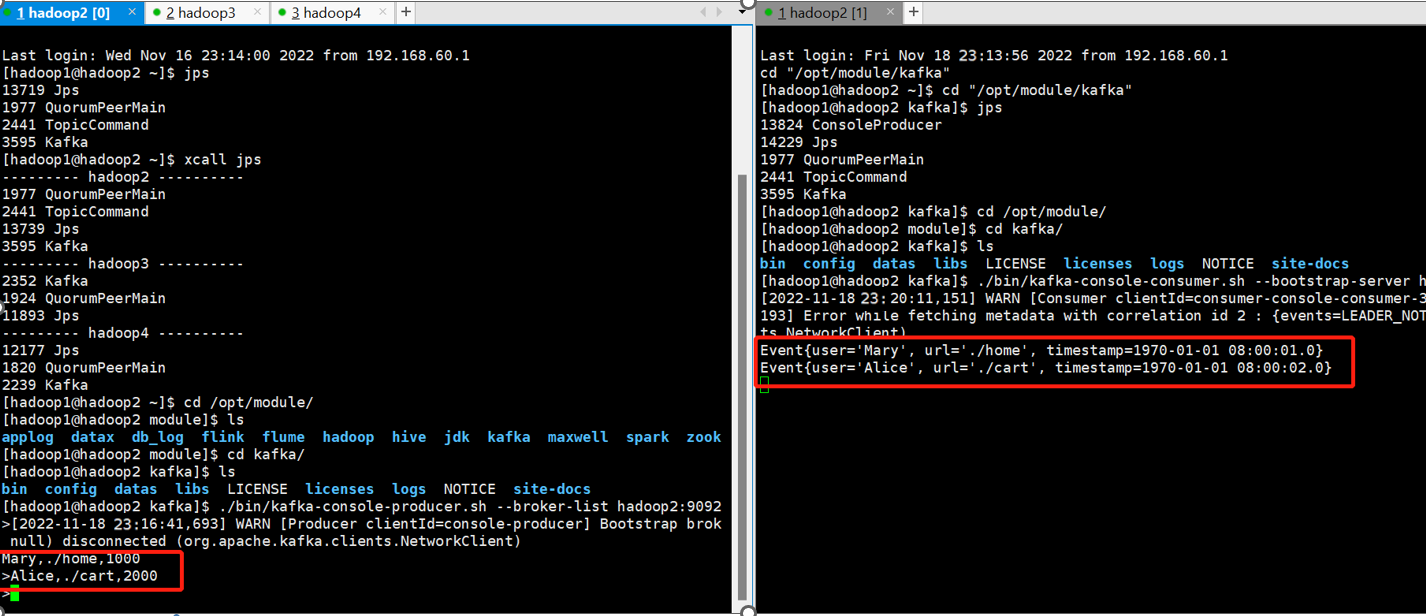

2. kafka输出结果


5.5.4 输出到redis

1. 引入依赖

org.apache.bahirflink-connector-redis_2.111.0

2. 代码

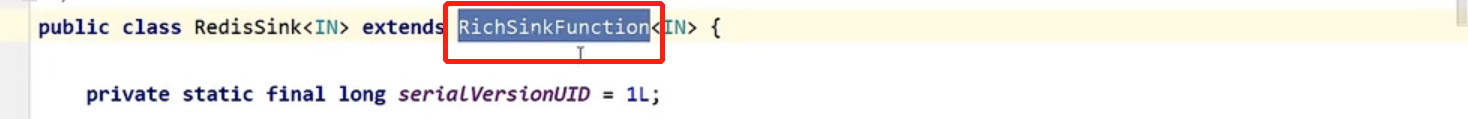

   继承自RichSinkFunction

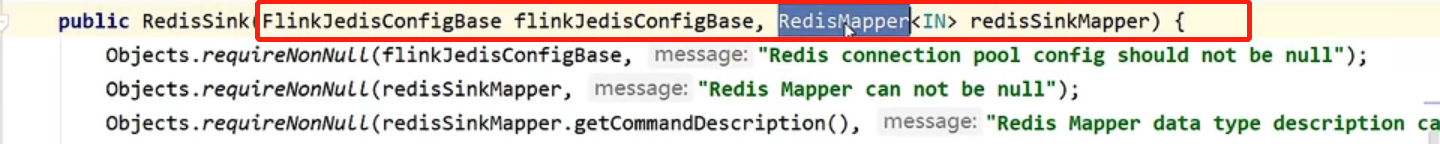

去调构造方法，换入redis集群的配置FlinkJedisConfigBase以及RedisMapper写入命令

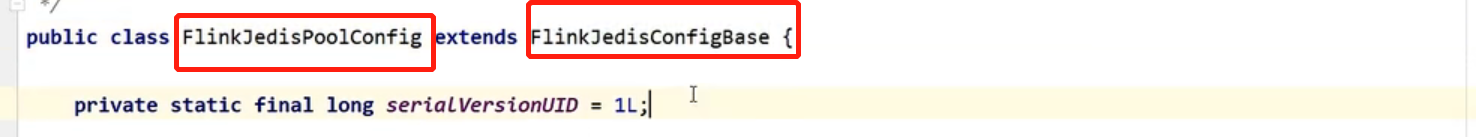

FlinkJedisPoolConfig用这个没毛病，直接继承的FlinkJedisConfigBase

3. 代码

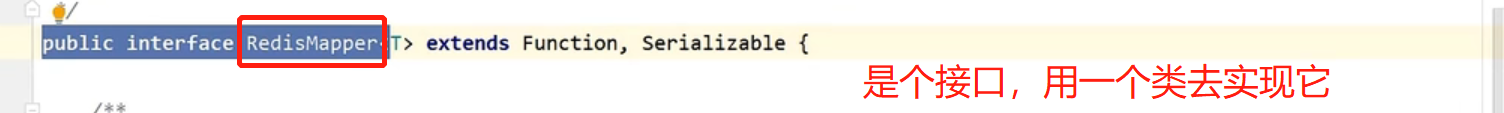

public class SinkToRedis {public static void main(String[] args) throws Exception{StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();env.setParallelism(1);//1.输入ClickSource是自定义输入DataStreamSource stream = env.addSource(new ClickSource());//2.创建一个jedis连接配置//FlinkJedisPoolConfig直接继承的FlinkJedisConfigBaseFlinkJedisPoolConfig config = new FlinkJedisPoolConfig.Builder().setHost("hadoop2").build();//3.写入redisstream.addSink(new RedisSink<>(config,new MyRedisMapper()));env.execute();}//3.自定义类实现 redisMapper接口public static class MyRedisMapper implements RedisMapper{@Overridepublic RedisCommandDescription getCommandDescription() {return new RedisCommandDescription(RedisCommand.HSET,"clicks");//写入哈希表}@Overridepublic String getKeyFromData(Event data) {return data.user;}@Overridepublic String getValueFromData(Event data) {return data.url;}}
}

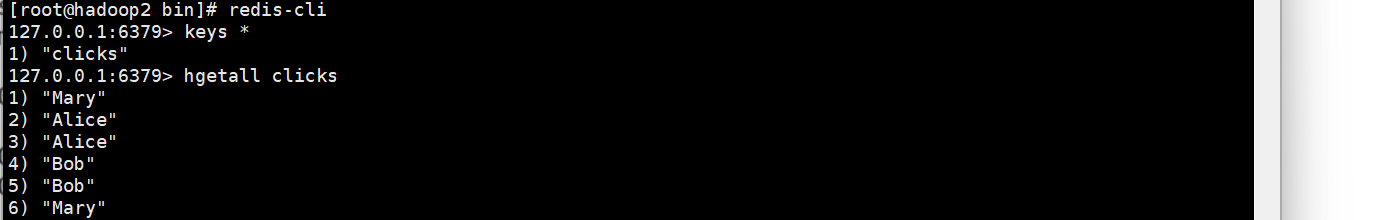

4. 结果

5.5.5 输出到ElasticSearch

1. 引入依赖

org.apache.flink
flink-connector-elasticsearch6_${scala.binary.version}
${flink.version}

2. 代码

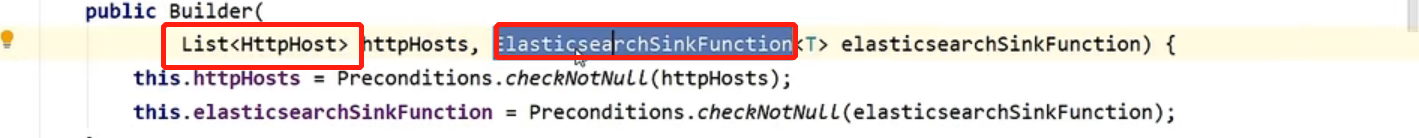

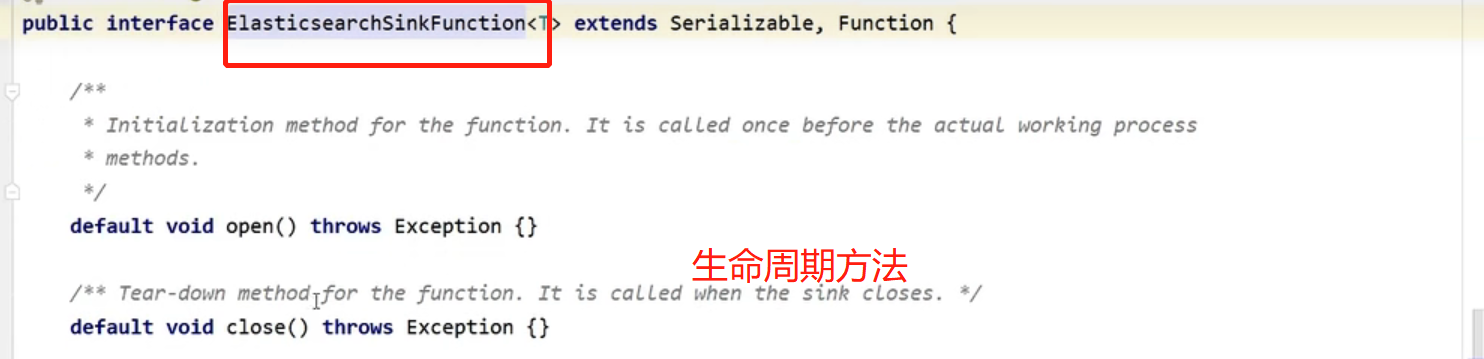

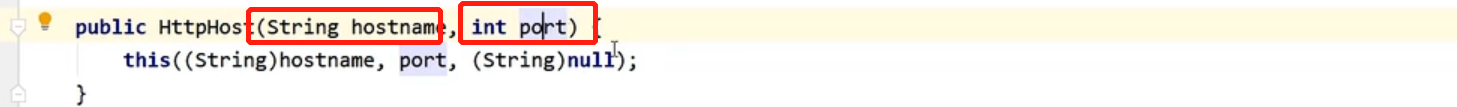

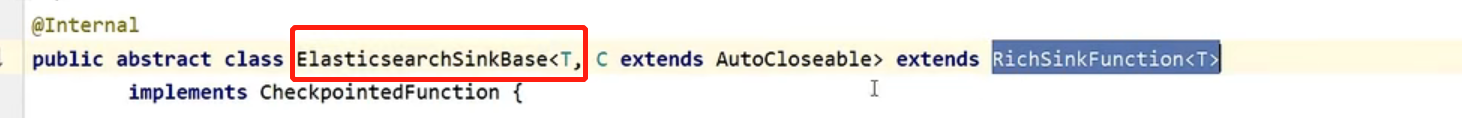

传入参数是List和ElasticsearchSinkFunction

public class SinToES {public static void main(String[] args) throws Exception{StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();env.setParallelism(1);//1.输入DataStreamSource stream = env.fromElements(new Event("Mary", "./home", 1000L),new Event("Bob", "./cart", 2000L),new Event("Alice", "./prod?id=100", 3000L),new Event("Bob", "./prod?id=1", 3300L),new Event("Alice", "./prod?id=200", 3000L),new Event("Bob", "./home", 3500L),new Event("Bob", "./prod?id=2", 3800L),new Event("Bob", "./prod?id=3", 4200L));//2.定义hosts的列表ArrayList httpHosts = new ArrayList<>();httpHosts.add(new HttpHost("hadoop",9200));//3.定义ElasticsearchSinkFunction,是个接口，重写process方法//向es发送请求，并插入数据ElasticsearchSinkFunction elasticsearchSinkFunction = new ElasticsearchSinkFunction() {@Override//输入，运行上下文，发送任务请求public void process(Event element, RuntimeContext ctx, RequestIndexer indexer) {HashMap map = new HashMap<>();map.put(element.user, element.url);//构建一个indexrequestIndexRequest request = Requests.indexRequest().index("clicks").type("types").source(map);indexer.add(request);}};//4.写入es//传入参数是List和ElasticsearchSinkFunctionstream.addSink(new ElasticsearchSink.Builder<>(httpHosts,elasticsearchSinkFunction).build());env.execute();}
}

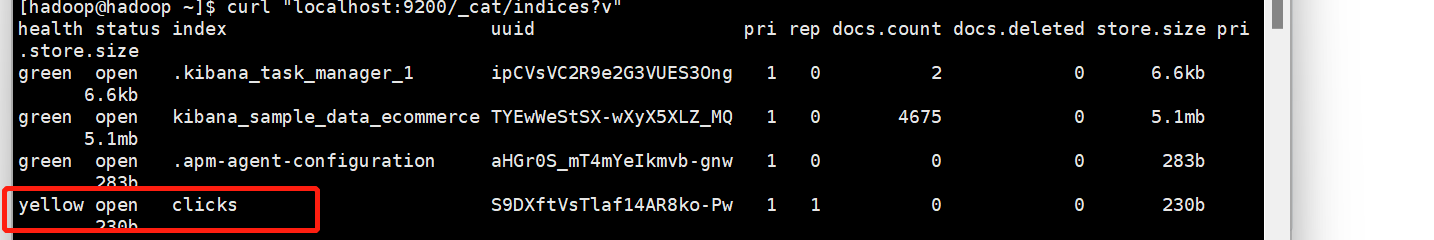

3. 结果

5.5.6 输入到Mysql

1. 引入依赖

org.apache.flinkflink-connector-jdbc_${scala.binary.version}${flink.version}

mysqlmysql-connector-java5.1.47

2. 代码

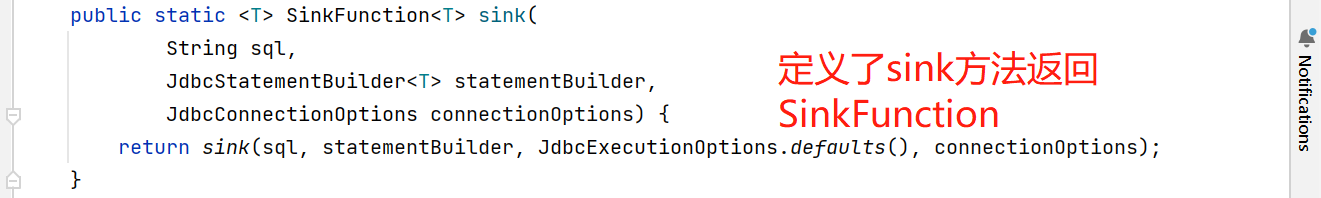

三个参数，sql，JdbcStatementBuilder构造，JdbcConnectionOptions等sql的连接配置

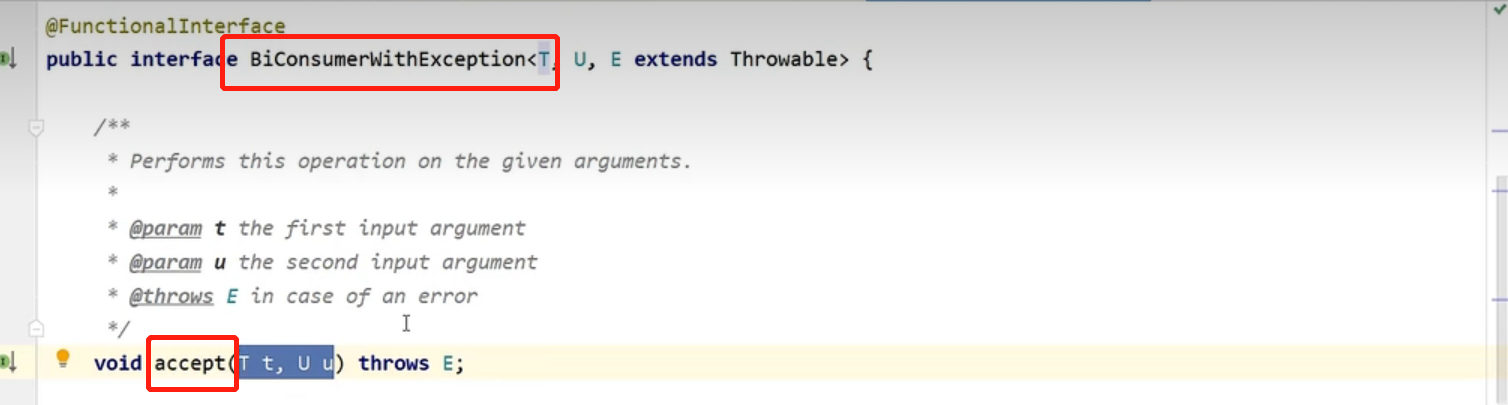

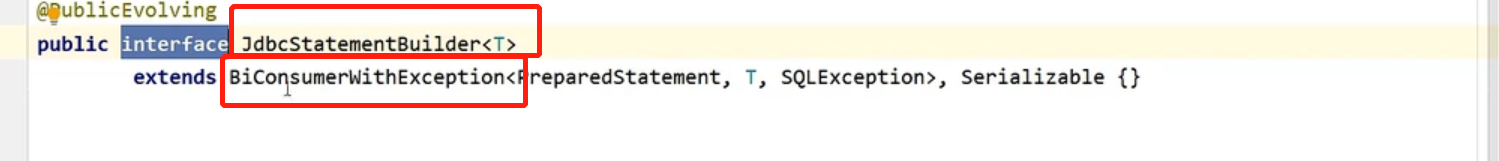

单一抽象方法，lambda使用

public class SinkToMysql {public static void main(String[] args) throws Exception{StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();env.setParallelism(1);//1.输入DataStreamSource stream = env.fromElements(new Event("Mary", "./home", 1000L),new Event("Bob", "./cart", 2000L),new Event("Alice", "./prod?id=100", 3000L),new Event("Bob", "./prod?id=1", 3300L),new Event("Alice", "./prod?id=200", 3000L),new Event("Bob", "./home", 3500L),new Event("Bob", "./prod?id=2", 3800L),new Event("Bob", "./prod?id=3", 4200L));//三个参数，sql，JdbcStatementBuilder构造，JdbcConnectionOptions等sql的连接配置stream.addSink(JdbcSink.sink("INSERT INTO clicks (user,url) VALUES(?,?)",((statement,event)->{statement.setString(1,event.user);statement.setString(2,event.url);}),new JdbcConnectionOptions.JdbcConnectionOptionsBuilder().withUrl("jdbc:mysql://localhost:3306/test2").withDriverName("com.mysql.jdbc.Driver").withUsername("root").withPassword("123456").build()));env.execute();}
}

3. mysql前期准备

• 创建mysql的test2
• 创建clicks表

mysql> create table clicks(-> user varchar(20) not null,-> url varchar(100) not null);
Query OK, 0 rows affected (0.02 sec)

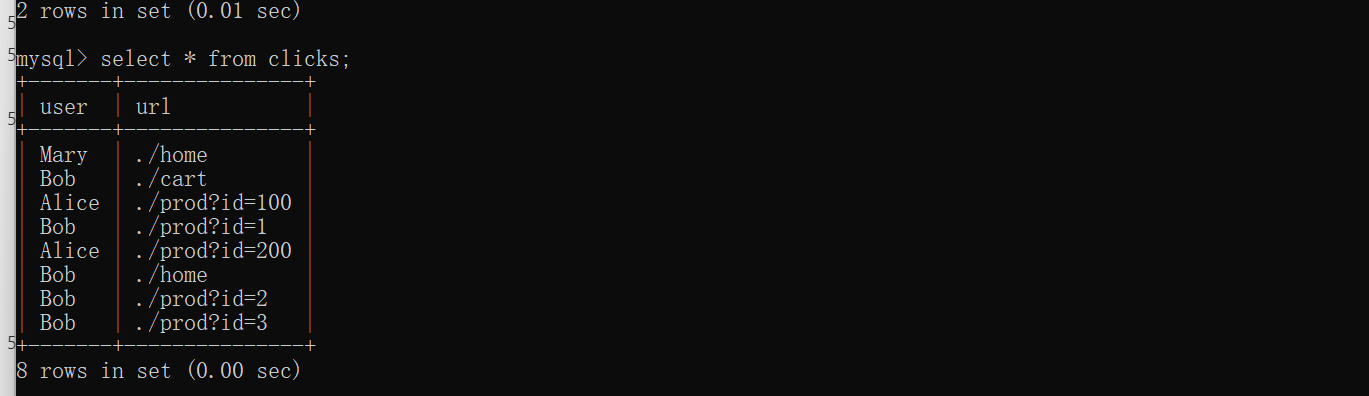

4. 结果


5.5.7 自定义Sink输出

1. 分析

调用DataStream的addSink()方法，并传入自定义好的SinkFunction（采用富函数类），重写关键方法invoke()，并且重写富函数类的生命周期相关方法open和close

2. 导入依赖

org.apache.hbasehbase-client${hbase.version}

3. 代码

略
