应用服务模型

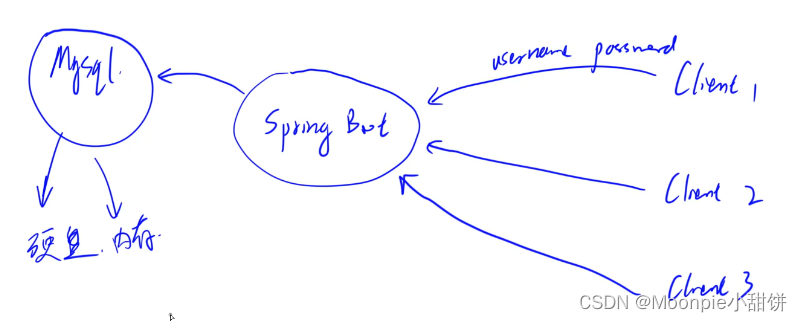

SpringBoot是一个运行在后端的程序，若干客户端会不断请求springboot 然后springboot会根据请求和数据库进行交互。

IDEA 连接数据库

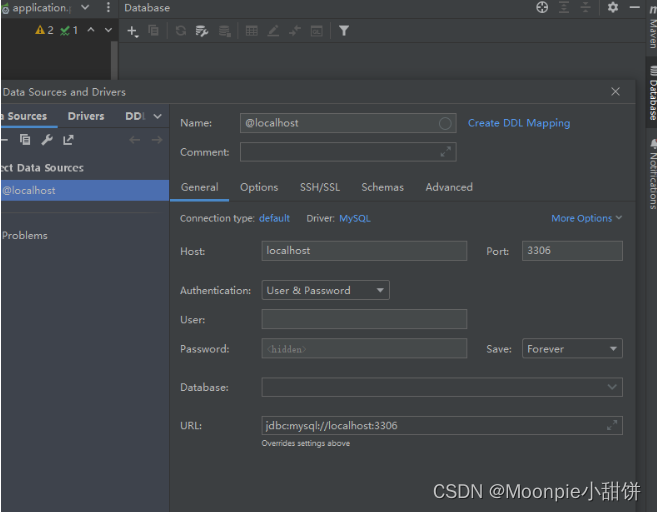

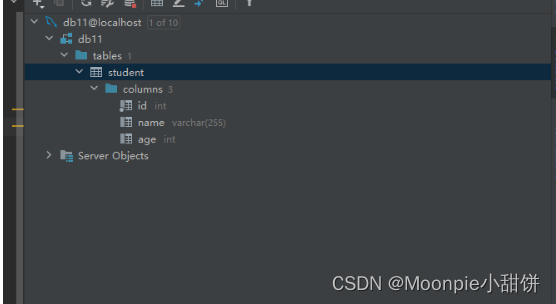

点击IDEA右侧的database 选择mysql数据库

• 这里我填写了用户名和密码 以及数据库名称 记得勾选默认架构

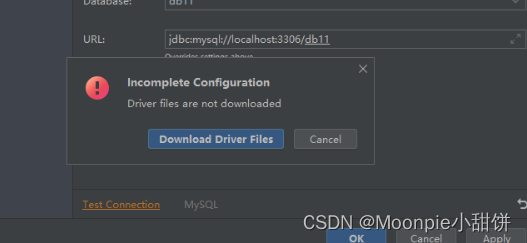

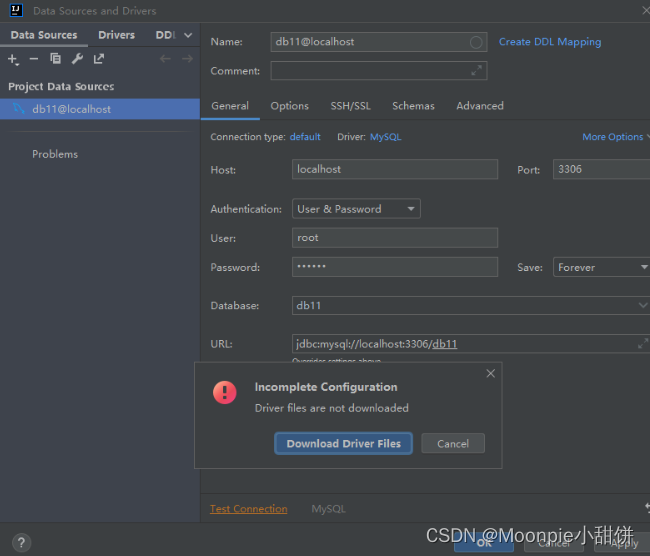

• 点击连接测试 需要下载驱动 点击下载

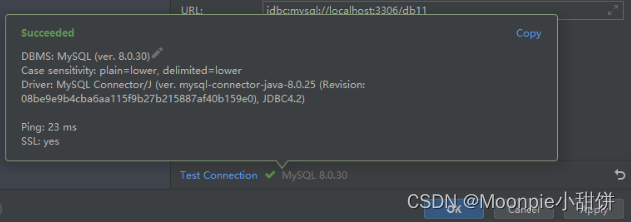

• 点击连接测试 连接成功

更新数据

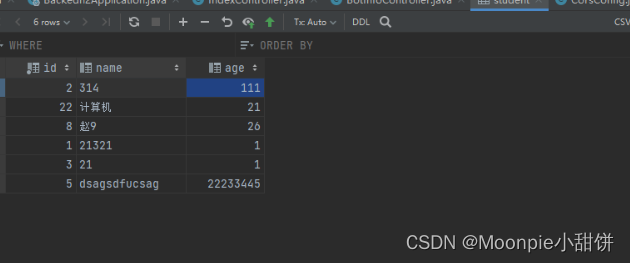

点击表格数据 更改数据 回车 点击上面绿色箭头 上传数据至数据库

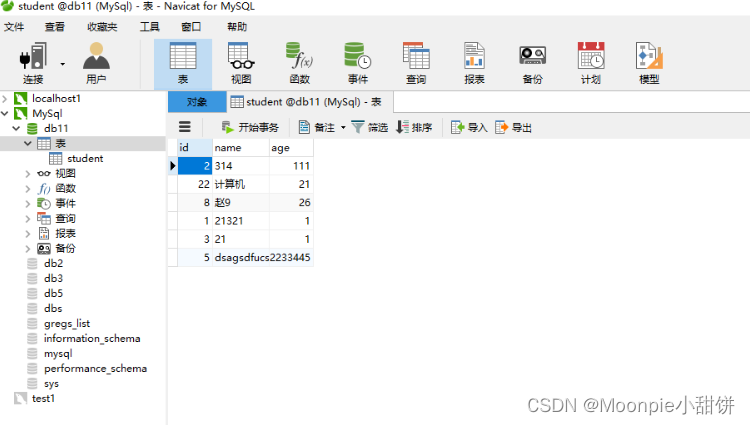

可以看到后台数据库已经更新

SpringBoot配置数据库依赖

Maven

仓库地址https://mvnrepository.com/

安装JDBC依赖

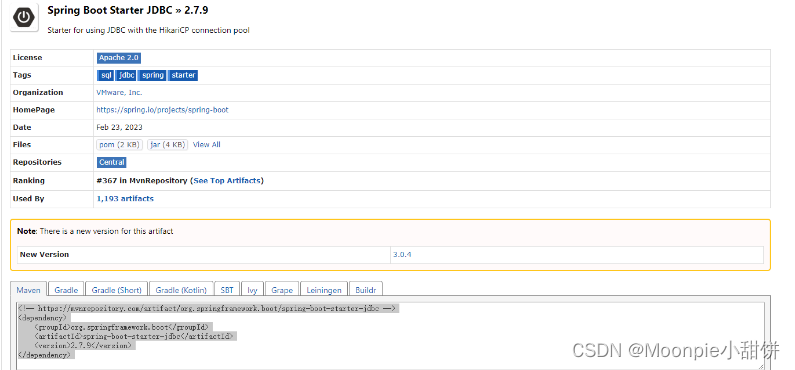

Spring Boot Starter JDBC

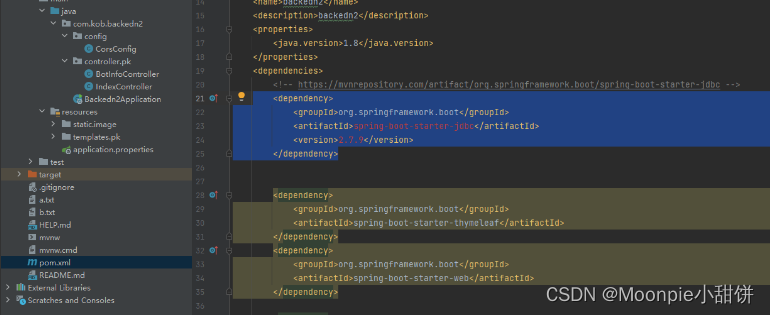

复制以下内容,将依赖粘贴到pom.xml中

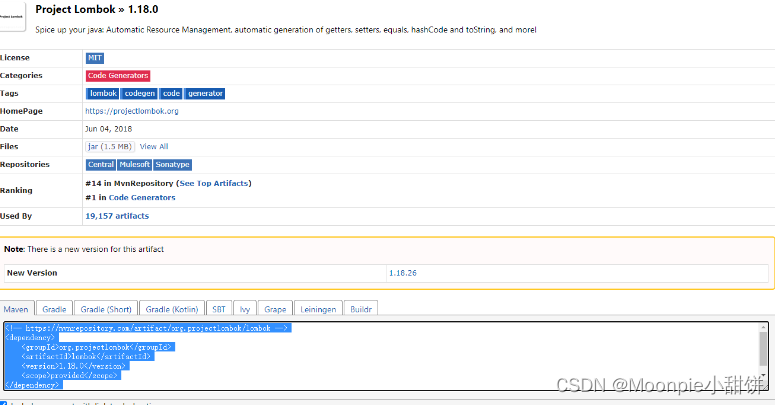

lombok

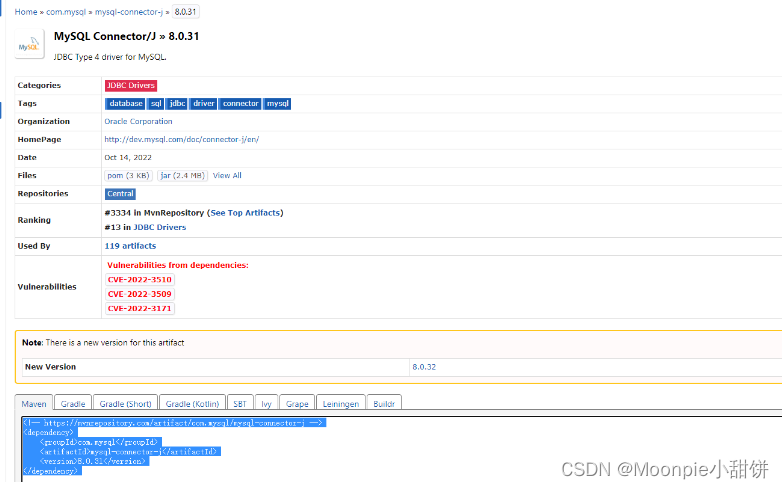

MySQL Connector/J

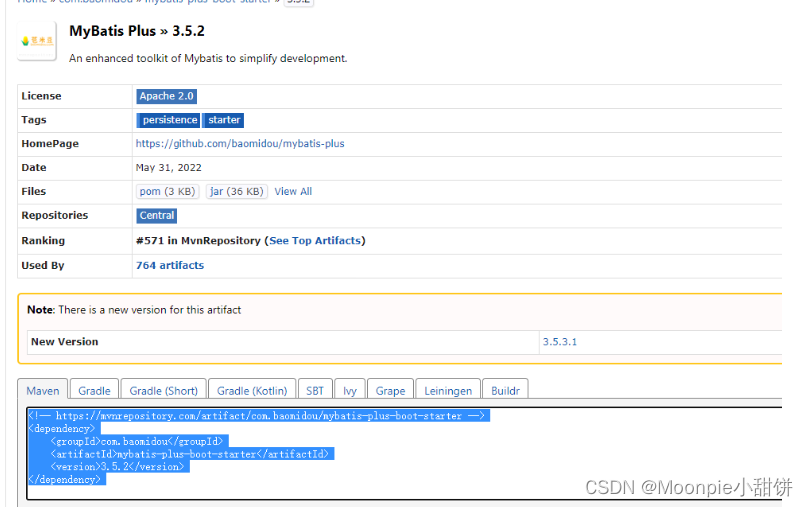

MyBatis Plus

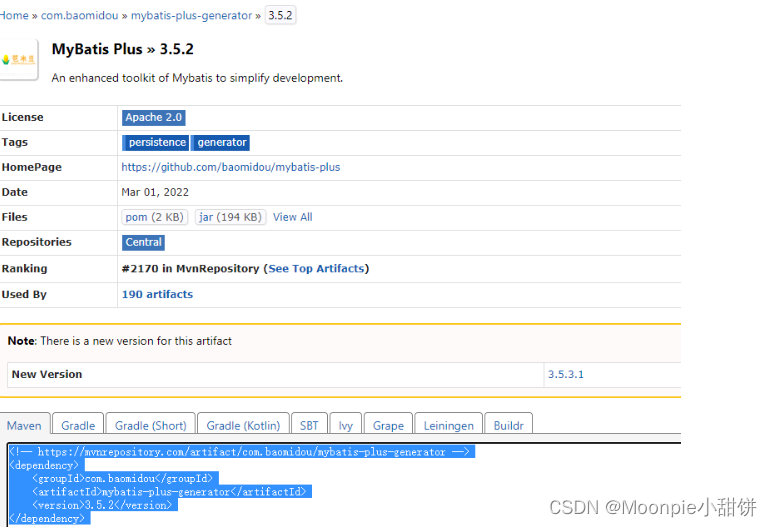

mybatis-plus-generator

解决依赖爆红问题

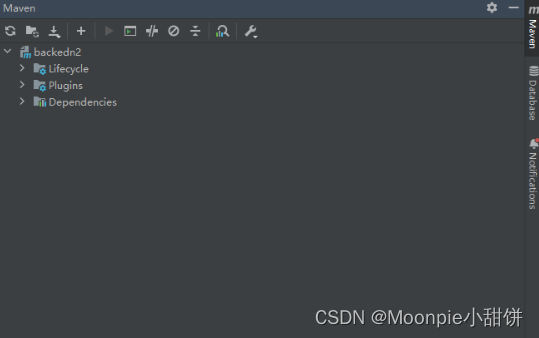

点击右侧Maven重新加载

添加数据库配置

这里的kob是数据库名称

spring.datasource.username=root
spring.datasource.password=123456
spring.datasource.url=jdbc:mysql://localhost:3306/kob?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

SpringBoot中的常用模块

• pojo层：将数据库中的表格对影成java中的class
• mapper层 将pojo层的class操作映射成sql语句
• service层：写具体的业务 组合使用mapper中的操作
• controller层：负责请求转发 接受页面传过来的参数，传给Service处理，接到返回值，再传给页面

pojo层的user表格

package com.kob.backedn2.pojo;// 数据库一张表对应一个类  @data 将常用的get set方法 添加进去
//@NoArgsConstructor  无参构造函数
//@AllArgsConstructor  有参构造函数
import lombok.AllArgsConstructor;
import lombok.NoArgsConstructor;import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;@Data
@NoArgsConstructor
@AllArgsConstructor
public class User {private Integer id;private String username;private String password;
}

UserMapper映射层

package com.kob.backedn2.mapper;import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.kob.backedn2.pojo.User;
import org.apache.ibatis.annotations.Mapper;// 将增删改查的操作映射成sql语句
@Mapper
public interface UserMapper extends BaseMapper {}

UserController层

package com.kob.backedn2.controller.user;
import com.kob.backedn2.mapper.UserMapper;
import com.kob.backedn2.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.List;@RestController
public class UserController {@AutowiredUserMapper userMapper;//     注解开发  获取所有的用户@GetMapping("/user/all/")public List getAll(){return userMapper.selectList(null);}}

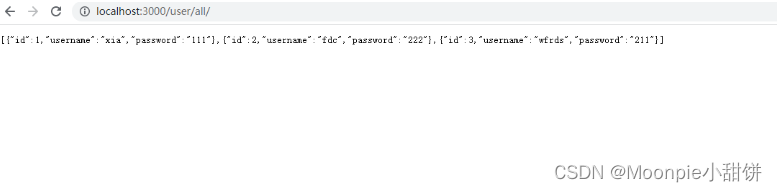

查询指定用户的信息

package com.kob.backedn2.controller.user;import com.kob.backedn2.mapper.UserMapper;
import com.kob.backedn2.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;import java.util.List;@RestController
public class UserController {@AutowiredUserMapper userMapper;
//     注解开发  获取所有的用户@GetMapping("/user/all/")public List getAll(){return userMapper.selectList(null);}//    查询指定id的信息  userid 使用{} 进行包围@GetMapping("/user/{userId}")public User getuser(@PathVariable int userId){return userMapper.selectById(userId);}
}

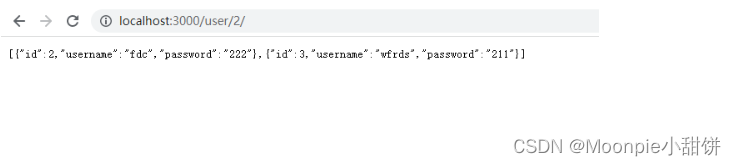

• 返回指定编号范围的所有用户

package com.kob.backedn2.controller.user;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.kob.backedn2.mapper.UserMapper;
import com.kob.backedn2.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import java.util.List;@RestController
public class UserController {@AutowiredUserMapper userMapper;
//     注解开发  获取所有的用户@GetMapping("/user/all/")public List getAll(){return userMapper.selectList(null);}
//    查询指定id的信息  userid 使用{} 进行包围@GetMapping("/user/{userId}/")public List getuser(@PathVariable int userId){QueryWrapper queryWrapper = new QueryWrapper<>();queryWrapper.ge("id",2).le("id",3);return userMapper.selectList(queryWrapper);}
}

添加新用户

后端controller层代码 解析浏览器地址栏输入的信息 然后userMapper将数据写入数据库

package com.kob.backedn2.controller.user;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.kob.backedn2.mapper.UserMapper;
import com.kob.backedn2.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;import java.util.List;@RestController
public class UserController {@AutowiredUserMapper userMapper;
//     注解开发  获取所有的用户@GetMapping("/user/all/")public List getAll(){return userMapper.selectList(null);}
//    查询指定id的信息  userid 使用{} 进行包围@GetMapping("/user/{userId}/")public User getuser(@PathVariable int userId){QueryWrapper queryWrapper = new QueryWrapper<>();queryWrapper.eq("id",userId);return userMapper.selectOne(queryWrapper);}// 插入指定用户数据@GetMapping("/user/add/{userId}/{username}/{password}/")public String addUser(@PathVariable int userId,@PathVariable String username,@PathVariable String password){User user = new User(userId,username,password);userMapper.insert(user);return "Add User Successfully";}
}

删除用户数据

// 删除用户   判断urL格式  然后调用该函数@GetMapping("/user/delete/{userId}/")public String deleteUser(@PathVariable int userId){userMapper.deleteById(userId);// 根据Id删除用户return "Delete User Successfully";}

集成 spring security

将依赖导入pom.xml中 重启MAVEN

        org.springframework.bootspring-boot-starter-security3.0.0

密码会重新生成，输入登录，退出之后各种api就不能正常使用 登陆进去之后可以使用

username:user
password:控制台会输出 一串密码

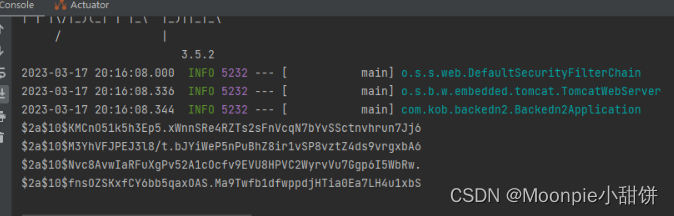

密码加密算法

• UserDetailsServiceImpl

package com.kob.backedn2.service.impl;import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.kob.backedn2.mapper.UserMapper;
import com.kob.backedn2.pojo.User;
import com.kob.backedn2.service.impl.utils.UserDetailsImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;@Service
public class UserDetailsServiceImpl implements UserDetailsService {@Autowiredprivate UserMapper userMapper;@Overridepublic UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {QueryWrapper queryWrapper = new QueryWrapper<>();queryWrapper.eq("username", username);User user = userMapper.selectOne(queryWrapper);if (user == null) {throw new RuntimeException("用户不存在");}return new UserDetailsImpl(user);}
}

• UserDetailsImpl

package com.kob.backedn2.service.impl.utils;import com.kob.backedn2.pojo.User;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;import java.util.Collection;@Data
@NoArgsConstructor
@AllArgsConstructor
public class UserDetailsImpl implements UserDetails {private User user;@Overridepublic Collection getAuthorities() {return null;}@Overridepublic String getPassword() {return user.getPassword();}@Overridepublic String getUsername() {return user.getUsername();}@Overridepublic boolean isAccountNonExpired() {return true;}@Overridepublic boolean isAccountNonLocked() {return true;}@Overridepublic boolean isCredentialsNonExpired() {return true;}@Overridepublic boolean isEnabled() {return true;}
}

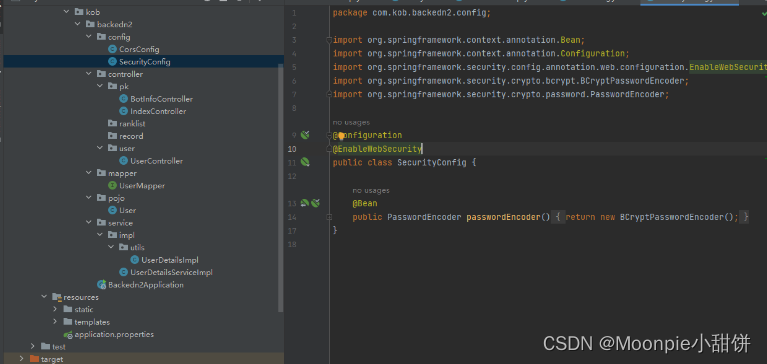

• SecurityConfig

package com.kob.backedn2.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;@Configuration
@EnableWebSecurity
public class SecurityConfig {@Beanpublic PasswordEncoder passwordEncoder() {return new BCryptPasswordEncoder();}
}
